Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 3, 2015, 10:26 AM
Date
11/03/2015
W/O
0536426
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00527
PipeID
P24249
Time
2:26 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6620
Sewer Name
29 ALAMITOS PUMPING PLANT TRUNK
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
20151103VMR_ALAMITOS_PUMPING_PLANT_TRUNK
Material
NRCP
Shape
Circular
Height
8 in.
Upstream MH
29 0743
Downstream MH
29 0742
Dir. of Survey
Downstream
Length Surveyed
352.6 ft.
Total Length
352.6 ft.
Structural Index
3
Structural Quick
3M22
Structural Rating
214
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
214
Pipe schematic from manhole 29 0743 to 29 0742
MH: 29 0743MH: 29 0742downstream0 ft. AMH - Upstream Manhole, Survey Begins - 03:52 AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 8" - ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MODERATE95.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN WITH 90% BLOCKAGE113.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN WITH 95% BLOCKAGE164.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN WITH 90% BLOCKAGE218.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN220.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN239.4 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES240.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN243.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - DEBRIS HANGING DOWN 10%314.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4" - STUB326.1 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES332.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN352 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish352.6 ft. AMH - Downstream Manhole, Survey Ends - 04:35 am

Observation photos (3)

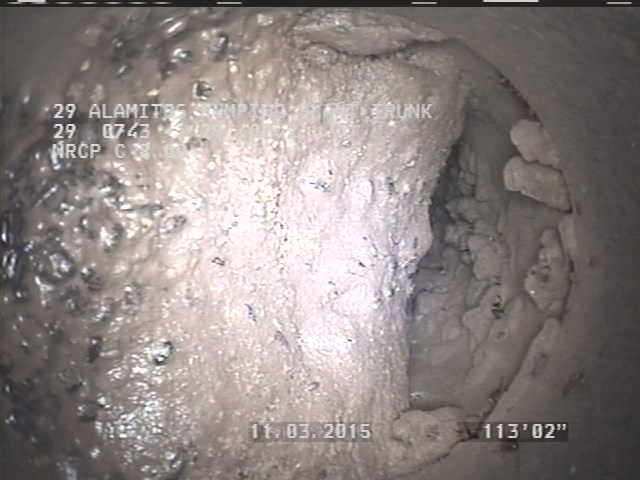

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN WITH 95% BLOCKAGE

    113.2 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN WITH 95% BLOCKAGE

  • Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN WITH 90% BLOCKAGE

    164.2 ft. - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN WITH 90% BLOCKAGE

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - DEBRIS HANGING DOWN 10%

    243.6 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - DEBRIS HANGING DOWN 10%

All inspections of P24249Work order 0536426

Observations (18)

DistanceCodeObservation
164.2TFOPEN WITH 90% BLOCKAGE
326.1CL—
0AMH03:52 AM
220.8TFOPEN
0MWM—
2SAVMODERATE
239.4CL—
0TFAACTIVE
113.2TFOPEN WITH 95% BLOCKAGE
240.8TFOPEN
0MWL—
352.6AMH04:35 am
95.1TFOPEN WITH 90% BLOCKAGE
218.2TFOPEN
352SAV—
332.1TFOPEN
243.6TFDEBRIS HANGING DOWN 10%
314.5TFCSTUB

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2015-11-03T02:26:24-08:00
documentation
REVELES, MANANES, OLIVER III
is_lateral_inspection
false
