Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 5, 2019, 08:12 AM

  • Section#5_16 0272_16 0266__852019__I0196R.mp4

Date
08/05/2019
W/O
0777342
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00652
PipeID
P13314
Time
1:12 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0196R
Sewer Name
16 CHAPEL AVENUE TRUNK, SECTION 1
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Maintenance Related
Project
20190730MDM_CHAPEL_AVENUE_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
16 0272
Downstream MH
16 0266
Dir. of Survey
Downstream
Length Surveyed
235.1 ft.
Total Length
235.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3519
O&M Rating
24
Overall Index
2
Overall Quick
—
Overall Rating
24
Pipe schematic from manhole 16 0272 to 16 0266
MH: 16 0272MH: 16 0266downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:15AM0 ft. MWL - Water Level, 20 %of cross sectional area2.3 ft. RFJ - Roots Fine Joint, from 03 to 05 o'clock, within 8 inches of joint: YESR - 4%27.3 ft. RML - Roots Medium Lateral, from 01 to 04 o'clock, 10 %, within 8 inches of joint: YES40.6 ft. RFJ - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YESR - 2%47.2 ft. RFJ - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YESR - 3%78.2 ft. RML - Roots Medium Lateral, at 11 o'clock, 5 %, within 8 inches of joint: YES124.6 ft. RFJ - Roots Fine Joint, from 03 to 09 o'clock, within 8 inches of joint: YESR - 3%127.8 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 4%139.8 ft. RMJ - Roots Medium Joint, from 08 to 10 o'clock, 5 %, within 8 inches of joint: YESR145.9 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 2%181.9 ft. RMJ - Roots Medium Joint, from 03 to 05 o'clock, 5 %, within 8 inches of joint: YESR200.3 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%208.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%212.2 ft. RMJ - Roots Medium Joint, from 01 to 05 o'clock, 10 %, within 8 inches of joint: YESR218.2 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%235.1 ft. AMH - Downstream Manhole, Survey Ends - 1:40AM

Observation photos (2)

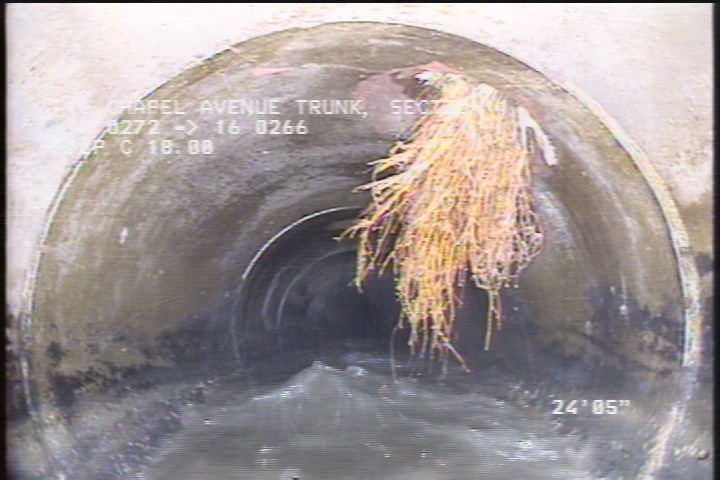

  • Roots Medium Lateral, from 01 to 04 o'clock, 10 %, within 8 inches of joint: YES

    27.3 ft. - Roots Medium Lateral, from 01 to 04 o'clock, 10 %, within 8 inches of joint: YES

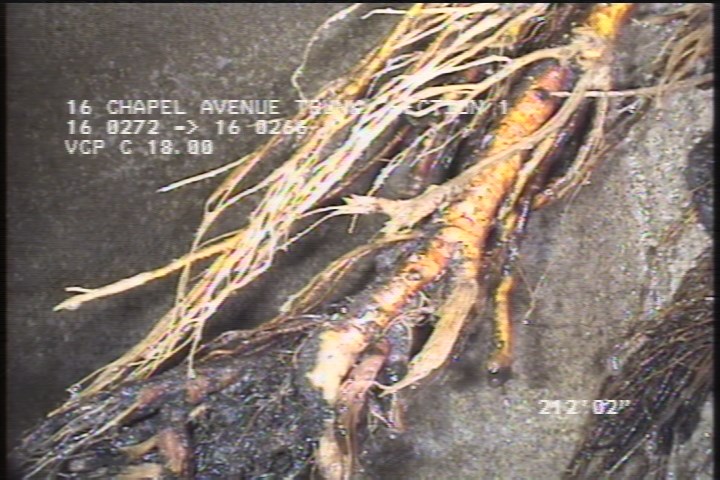

  • Roots Medium Joint, from 01 to 05 o'clock, 10 %, within 8 inches of joint: YESR

    212.2 ft. - Roots Medium Joint, from 01 to 05 o'clock, 10 %, within 8 inches of joint: YESR

All inspections of P13314Work order 0777342

Observations (18)

DistanceCodeObservation
78.2RML—
208.1RFJ4%
218.2RFJ4%
127.8RFJ4%
47.2RFJ3%
0MWM—
212.2RMJ—
235.1AMH1:40AM
2.3RFJ4%
0AMH1:15AM
181.9RMJ—
40.6RFJ2%
145.9RFJ2%
124.6RFJ3%
139.8RMJ—
0MWL—
27.3RML—
200.3RFJ4%

Properties (5)

additional_info
POST ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-08-05T01:12:05-07:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
