Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 30, 2019, 05:46 PM

  • 18 0429_18 0428_7302019_104958.mp4

Date
07/30/2019
W/O
0767446
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00675
PipeID
P14277
Time
10:46 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8040
Sewer Name
18 FLORENCE AVENUE TRUNK
City
SANTE FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
19
Purpose
Routine Assessment
Project
20190730DF_FLORENCE_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
18 0428
Downstream MH
18 0429
Dir. of Survey
Upstream
Length Surveyed
451.8 ft.
Total Length
451.8 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 18 0428 to 18 0429
MH: 18 0428MH: 18 0429upstream0 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)0 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach0 ft. AMH - Upstream Manhole, Survey Ends - 11:14 AM3.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.8 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% MAG176.6 ft. MGP - General Photograph246.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"298.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"334.2 ft. MGP - General Photograph347.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"395.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"436 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"449.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start449.8 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG451.8 ft. MWM - Water Mark, 25 %of cross sectional area451.8 ft. MWL - Water Level, 20 %of cross sectional area451.8 ft. AMH - Downstream Manhole, Survey Begins - 10:48 AM

Observation photos (5)

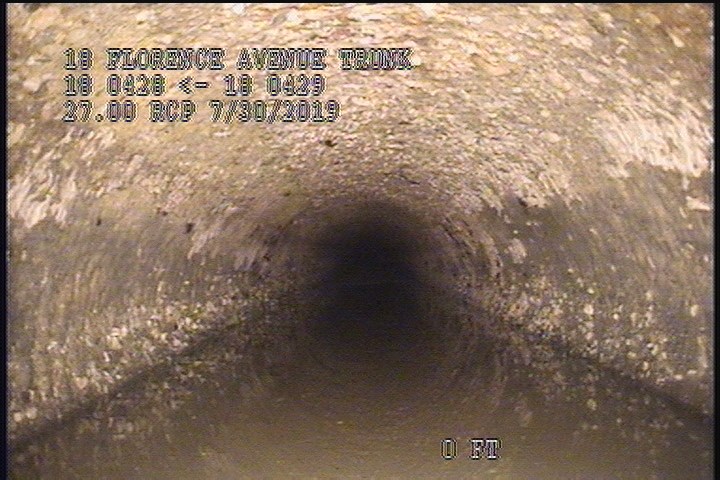

  • Water Mark, 25 %of cross sectional area

    0 ft. - Water Mark, 25 %of cross sectional area

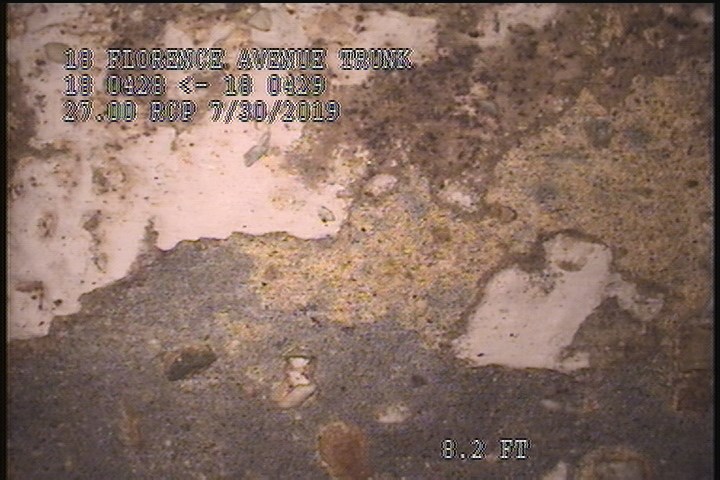

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

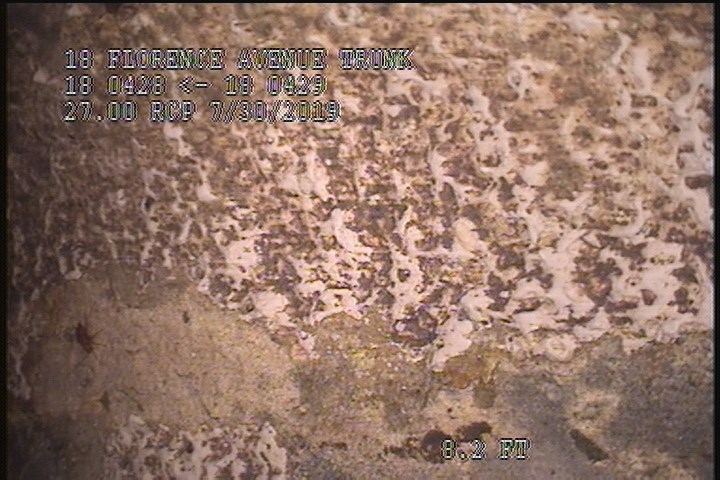

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG

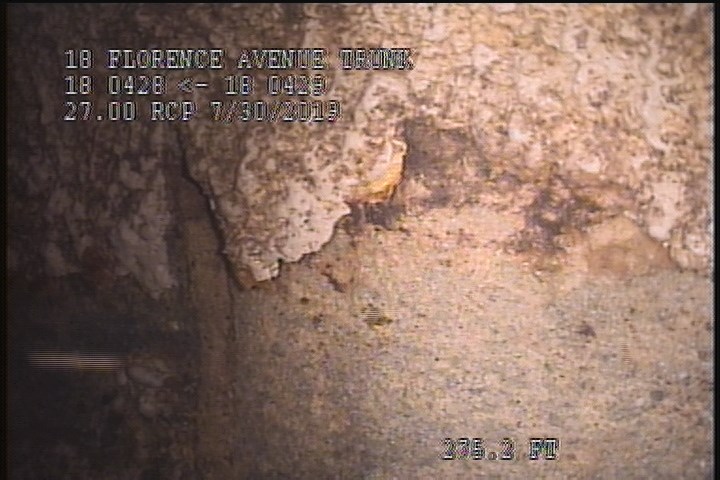

  • General Photograph

    275.2 ft. - General Photograph

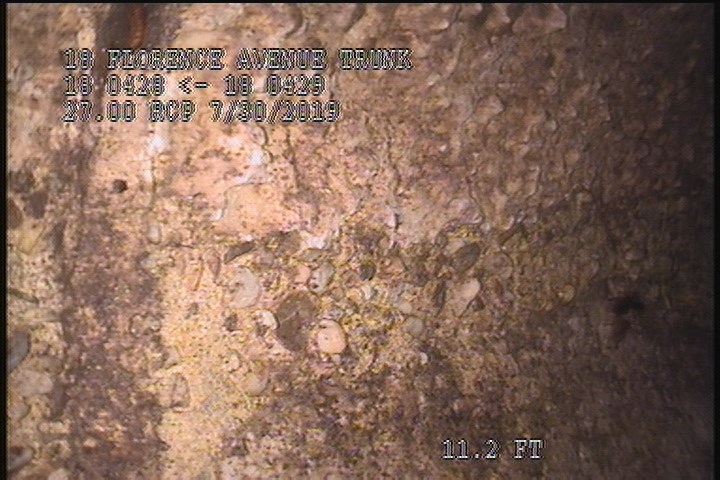

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% MAG

    448 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% MAG

All inspections of P14277Work order 0767446

Observations (17)

DistanceCodeObservation
2SSS—
448.1SSS—
153.2TFC—
104.5TFC—
117.6MGP—
2SZ60% MAG
0MWM—
205.4TFC—
451.8MGOGREASE THROUGHOUT THE REACH (5%)
15.8TFC—
56.6TFC—
0MWL—
451.8MGOPeeling & Flaking Throughout The Reach
0AMH10:48 AM
448SZ60% MAG
451.8AMH11:14 AM
275.2MGP—

Properties (6)

custom_field_three
AGGREGATE PROJECTING/REINFORCEMENT VISIBLE
custom_field_two
3
customer
LACSD
datetime
2019-07-30T10:46:17-07:00
documentation
FRANKLIN, IGNACIO, RUVALCABA, CASTILLO
is_lateral_inspection
false
