Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 25, 2019, 09:11 AM

  • Section#10_18 0971A_18 0986__7252019__I0190R.mp4

Date
07/25/2019
W/O
0777340
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00716
PipeID
P14823
Time
2:11 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0190R
Sewer Name
18 WORSHAM CREEK TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
11
Purpose
Maintenance Related
Project
20190723MDM_WORSHAM_CREEK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
7.5 in.
Upstream MH
18 0971A
Downstream MH
18 0986
Dir. of Survey
Downstream
Length Surveyed
386.9 ft.
Total Length
386.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3800
O&M Rating
24
Overall Index
3
Overall Quick
—
Overall Rating
24
Pipe schematic from manhole 18 0971A to 18 0986
MH: 18 0971AMH: 18 0986downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:30AM0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE92.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN139.9 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN- 30% ROOTS142.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN-100% ROOTS142.6 ft. RML - Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO142.6 ft. MGP - General Photograph - 20% ROOTS193.3 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN - 100% ROOTS193.3 ft. RML - Roots Medium Lateral, from 10 to 11 o'clock, 5 %, within 8 inches of joint: NO245.2 ft. MGP - General Photograph - 20% ROOTS245.2 ft. RML - Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO245.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN289.9 ft. RML - Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO290.9 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN-100% ROOTS290.9 ft. MGP - General Photograph - 20% ROOTS290.9 ft. MGO - General Observation - GENORATOR SHUT OFF340.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - STUB342.6 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN-60% ROOTS386.5 ft. MGO - General Observation - MH CONN 9:00 ACTIVE386.9 ft. AMH - Downstream Manhole, Survey Ends - 3:30AM

Observation photos (7)

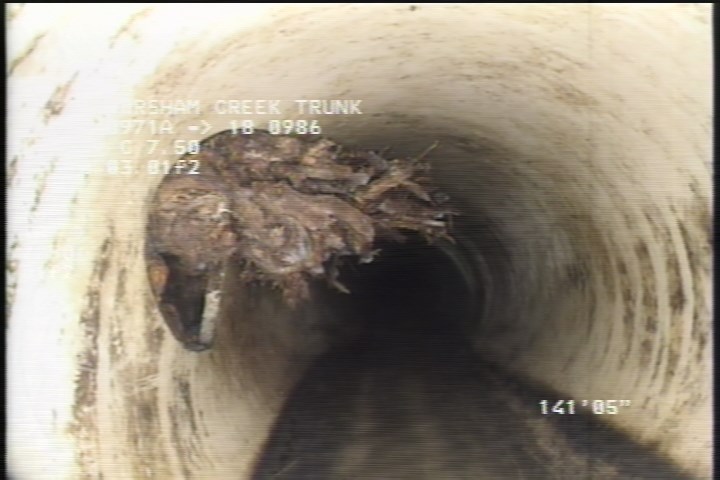

  • Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO

    142.6 ft. - Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO

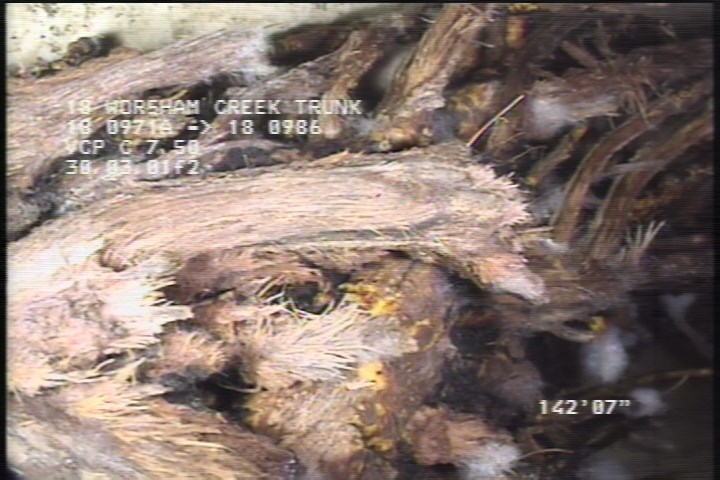

  • General Photograph - 20% ROOTS

    142.6 ft. - General Photograph - 20% ROOTS

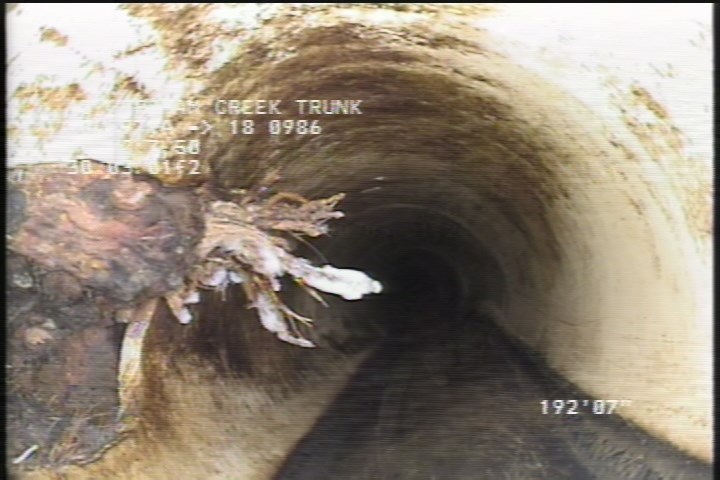

  • Roots Medium Lateral, from 10 to 11 o'clock, 5 %, within 8 inches of joint: NO

    193.3 ft. - Roots Medium Lateral, from 10 to 11 o'clock, 5 %, within 8 inches of joint: NO

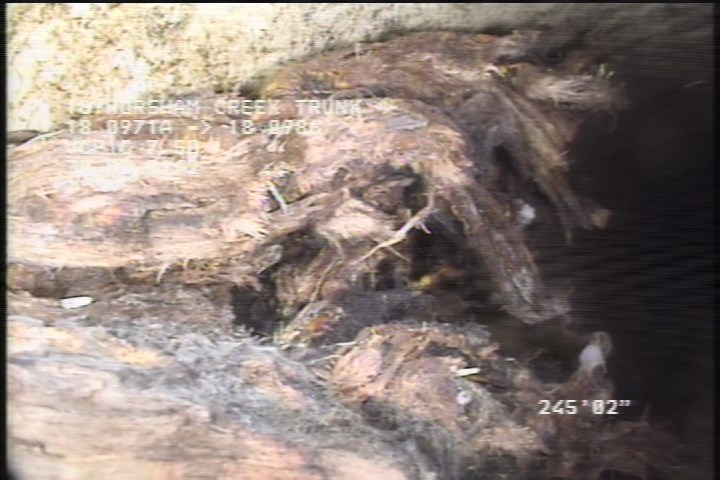

  • General Photograph - 20% ROOTS

    245.2 ft. - General Photograph - 20% ROOTS

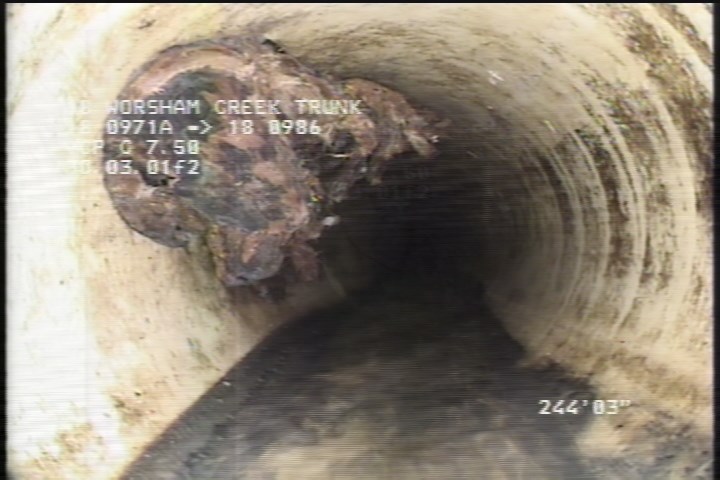

  • Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO

    245.2 ft. - Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO

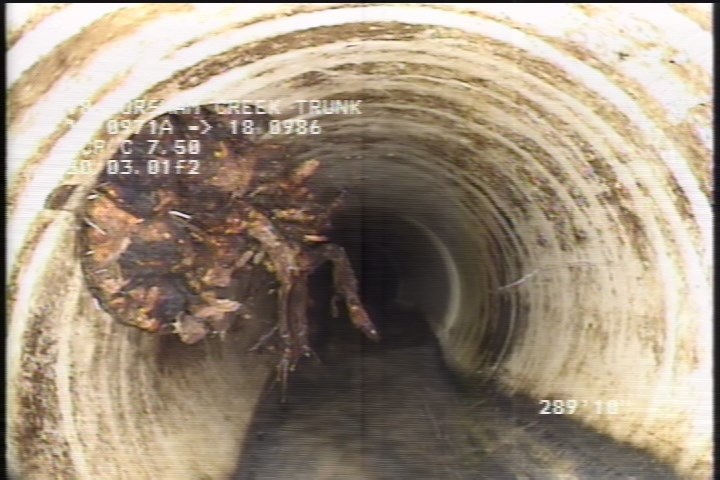

  • Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO

    289.9 ft. - Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO

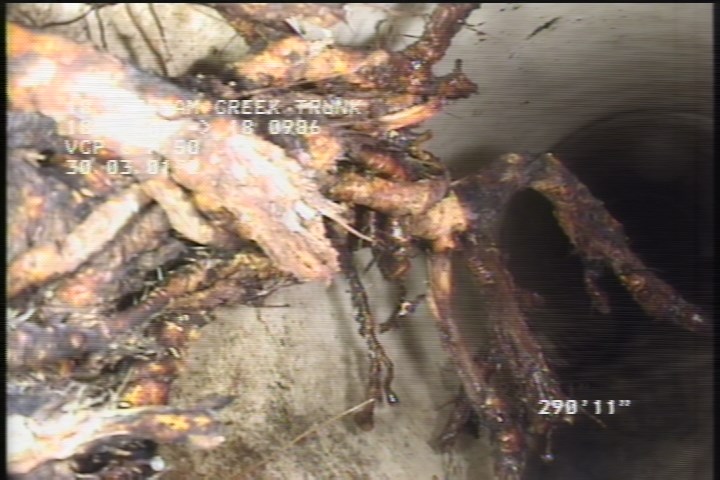

  • General Photograph - 20% ROOTS

    290.9 ft. - General Photograph - 20% ROOTS

All inspections of P14823Work order 0777340

Observations (22)

DistanceCodeObservation
245.2MGP20% ROOTS
290.9TBDOPEN-100% ROOTS
386.5MGOMH CONN 9:00 ACTIVE
245.2RML—
342.6TBDOPEN-60% ROOTS
142.6TBOPEN-100% ROOTS
139.9TBDOPEN- 30% ROOTS
245.2TBOPEN
0MWM—
92.4TBOPEN
142.6RML—
193.3TBDOPEN - 100% ROOTS
289.9RML—
0MWL—
0AMH2:30AM
386.9AMH3:30AM
142.6MGP20% ROOTS
290.9MGP20% ROOTS
290.9MGOGENORATOR SHUT OFF
340.2TBSTUB
193.3RML—
0MGOMH CONN 9:00 ACTIVE

Properties (6)

additional_info
POST ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-07-25T02:11:15-07:00
documentation
MARTIN,REVELES,OLIVER 111,SHADLER
is_lateral_inspection
false
lining
PVCP
