Wastewater/Activity/PacpInspection/1.0Jun 8, 2017, 08:56 AM
15 0727_15 0726 _08062017_032258.mp4
- Date
- 06/08/2017
- W/O
- 640598
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00616
- PipeID
- P12620
- Time
- 1:56 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4544
- Sewer Name
- 15 MONROVIA OUTFALL TRUNK
- City
- MONROVIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_640598_TV15132_JUN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 15 0727
- Downstream MH
- 15 0726
- Dir. of Survey
- Downstream
- Length Surveyed
- 448.5 ft.
- Total Length
- 448.5 ft.
- Structural Index
- 3
- Structural Quick
- 3Q00
- Structural Rating
- 267
- O&M Index
- 2
- O&M Quick
- 2Q11
- O&M Rating
- 179
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 446
Observation photos (2)

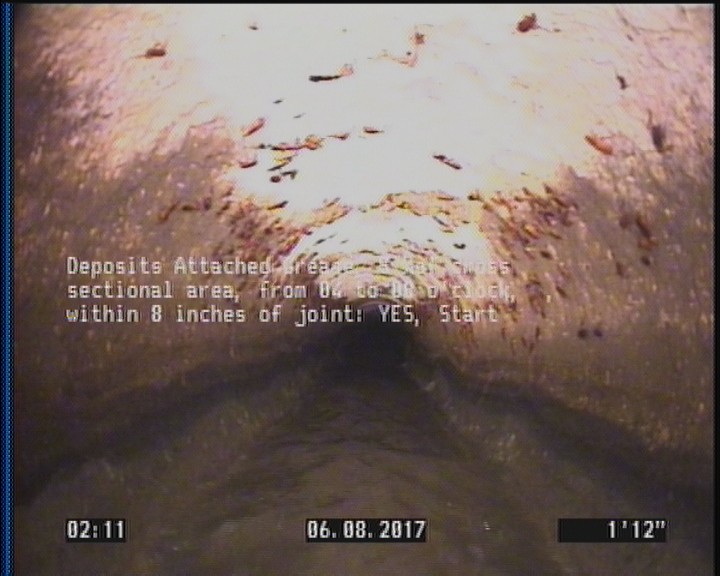

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

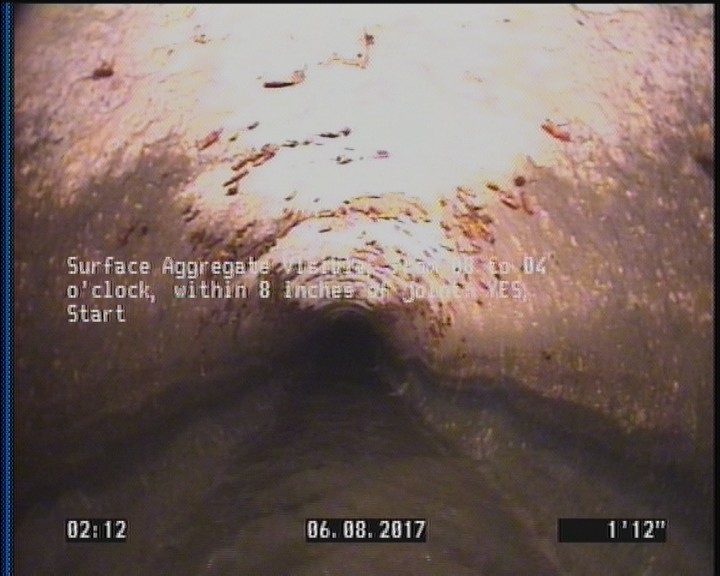

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 448.3 | DAGS | — |
| 448.3 | SAV | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 448.5 | AMH | 15 0726 |
| 0 | AMH | 15 0727 |
| 448.3 | MGO | CONNECTION AT 3 OC |
| 4.8 | VC | — |
| 2 | MGO | MAG COATING |
| 2 | DAGS | — |
| 2 | SAV | — |
| 448.5 | MGO | CONNECTION AT 9 OC |
Properties (6)
- additional_info
- SC345359
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-08T01:56:43-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
