Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 05:01 AM

  • 15 0546_15 0545 _18042017_220108.mp4

Date
04/18/2017
W/O
630147
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00629
PipeID
P12475
Time
10:01 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4470
Sewer Name
15 SANTA ANITA OUTFALL TRUNK
City
ARCADIA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
WO_630147_TV15085_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
15 0546
Downstream MH
15 0545
Dir. of Survey
Downstream
Length Surveyed
344.7 ft.
Total Length
344.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
1900
O&M Rating
9
Overall Index
1
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 15 0546 to 15 0545
MH: 15 0546MH: 15 0545downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 05460 ft. MWM - Water Mark, 20 %of cross sectional area54.3 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES62.5 ft. RFJ - Roots Fine Joint, from 09 to 04 o'clock, within 8 inches of joint: YES65.1 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"70.8 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start98.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"98.6 ft. RFC - Roots Fine Connection, at 02 o'clock102.3 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish166.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"279.6 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"344.7 ft. AMH - Downstream Manhole, Survey Ends - 15 0545

Observation photos (4)

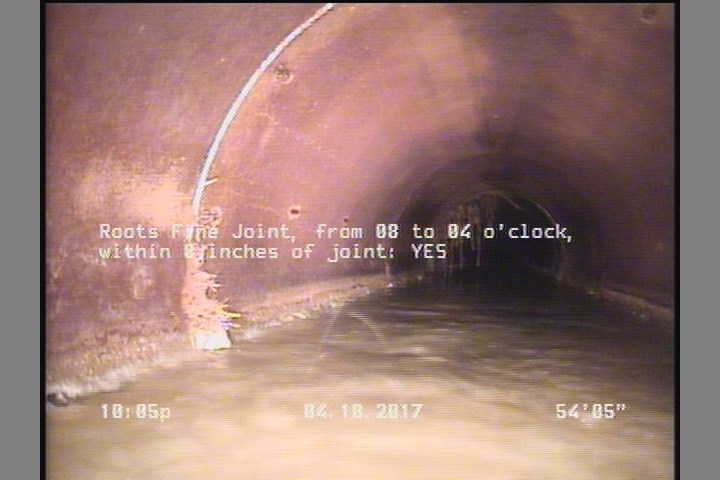

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

    54.3 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

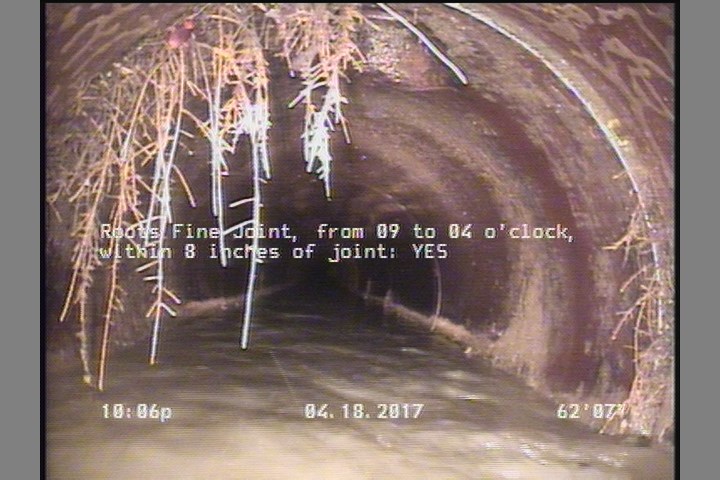

  • Roots Fine Joint, from 09 to 04 o'clock, within 8 inches of joint: YES

    62.5 ft. - Roots Fine Joint, from 09 to 04 o'clock, within 8 inches of joint: YES

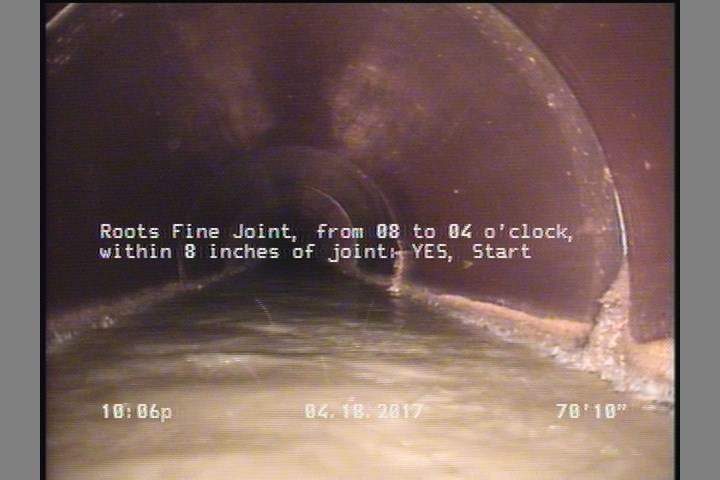

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    70.8 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

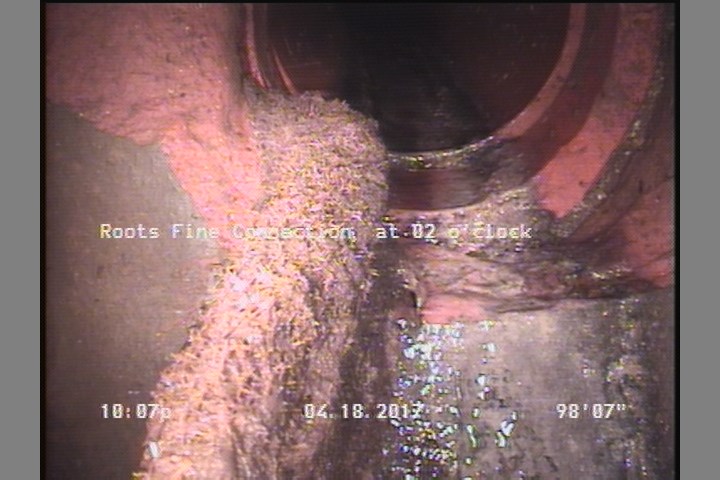

  • Roots Fine Connection, at 02 o'clock

    98.6 ft. - Roots Fine Connection, at 02 o'clock

All inspections of P12475Work order 630147

Observations (13)

DistanceCodeObservation
0MWL—
98.5TB—
0AMH15 0546
279.6TB—
0MWM—
70.8RFJ—
54.3RFJ—
65.1TB—
98.6RFC—
344.7AMH15 0545
166.8TB—
102.3RFJ—
62.5RFJ—

Properties (6)

additional_info
SC345179
custom_field_two
4
customer
LACSD
datetime
2017-04-18T22:01:03-07:00
documentation
PROPIPE
is_lateral_inspection
false
