Wastewater/Activity/PacpInspection/1.0Jun 28, 2019, 10:32 AM
15 0076_H 0868 _28062019_033722.mp4
- Date
- 06/28/2019
- W/O
- 772001
- Weather
- Dry
- Operator/Surveyor
- J. VARGAS
- Sewer ID
- Z00633
- PipeID
- P21416
- Time
- 3:32 AM
- Certificate
- U-209-8149
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5582
- Sewer Name
- 15 TURNBULL CANYON TRUNK
- City
- INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- RFIR_WO_772001_TV15238_JUN2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 15 0076
- Downstream MH
- H 0868
- Dir. of Survey
- Downstream
- Length Surveyed
- 22.9 ft.
- Total Length
- 22.9 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2800
- O&M Rating
- 16
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 22
Observation photos (4)
2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
2.2 ft. - General Observation - MAGNEZIUM H.O COATING THROUGHOUT REACH
2.2 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

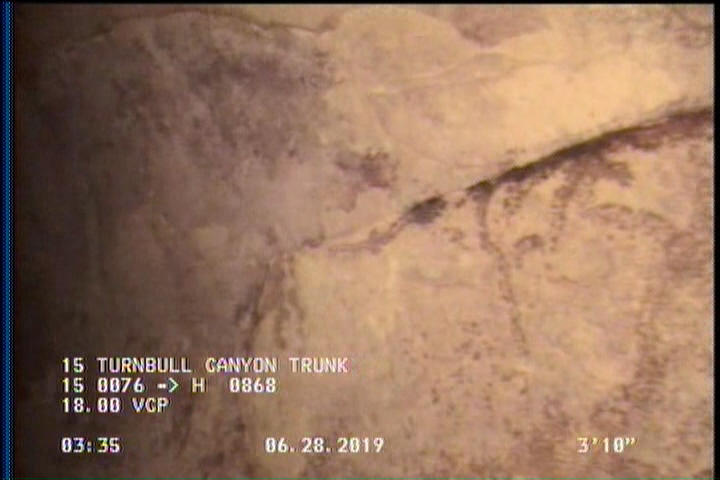

3.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 22.7 | CM | — |
| 2.2 | DAGS | — |
| 0 | MWM | — |
| 3.1 | CM | — |
| 22.9 | AMH | H 0868 |
| 0 | AMH | 15 0076 |
| 22.7 | DAGS | — |
| 0 | MWL | — |
| 22.7 | DAE | — |
| 2.2 | MGO | MAGNEZIUM H.O COATING THROUGHOUT REACH |
| 2.2 | DAE | — |
| 0 | MGO | CONNECTIONS AT 3' CLOCK AT MH CAPPED |
Properties (6)
- additional_info
- SC378252
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-06-28T03:32:12-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
