Wastewater/Activity/PacpInspection/1.0Aug 25, 2016, 09:40 AM
H 0608_H 0607 _20160825_024507.mp4
- Date
- 08/25/2016
- W/O
- 585959
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00190
- PipeID
- P11029
- Time
- 2:40 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3572
- Sewer Name
- H JOINT OUTFALL H - UNIT 8G
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_585959_TV15150_AUG2016
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- H 0608
- Downstream MH
- H 0607
- Dir. of Survey
- Downstream
- Length Surveyed
- 5.6 ft.
- Total Length
- 5.6 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

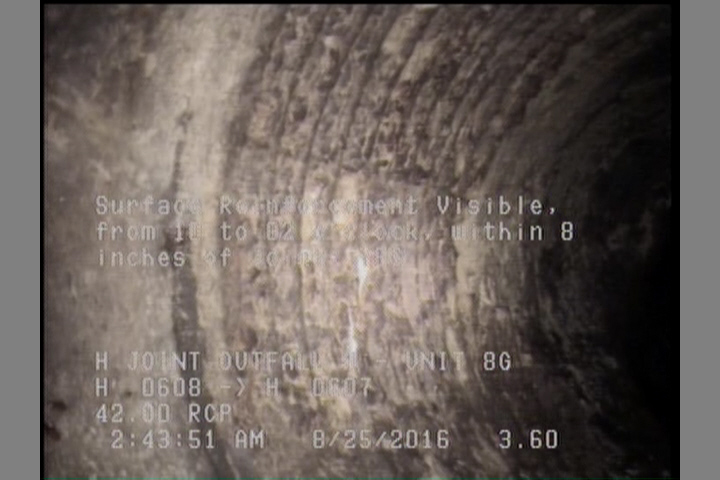

3.6 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

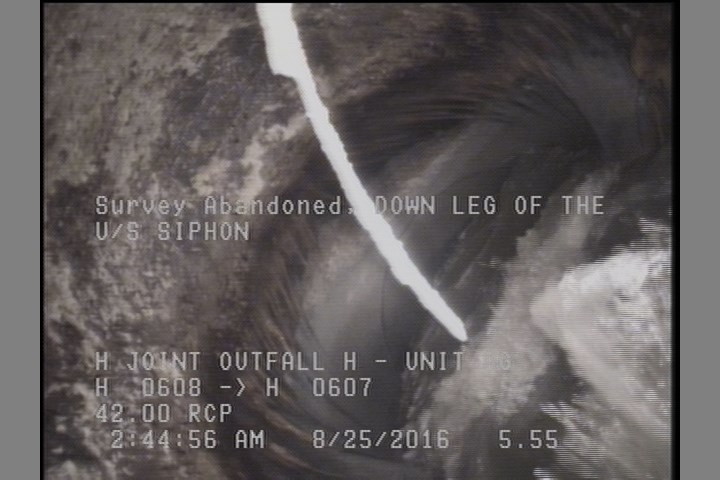

5.6 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON

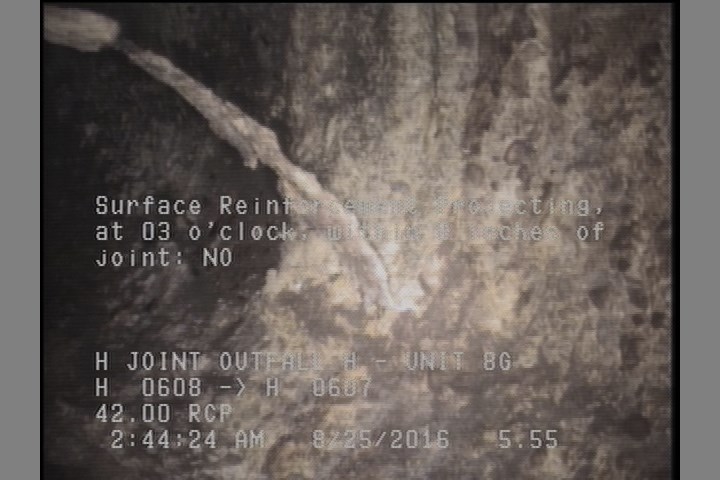

5.6 ft. - Surface Reinforcement Projecting, at 03 o'clock, within 8 inches of joint: NO
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 3.6 | SRV | — |
| 5.6 | MSA | DOWN LEG OF THE U/S SIPHON |
| 5.6 | SRP | — |
| 0 | MWM | — |
| 0 | AMH | H 0608 |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC306159
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-08-25T02:40:25-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 27198
