Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2016, 05:54 AM

  • 14 0961_14 0960_09132016_225433.mp4

Date
09/13/2016
W/O
585470
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00957
PipeID
P23177
Time
10:54 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3757
Sewer Name
14 AVENUE "H" WEST TRUNK
City
LANCASTER
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
04
Purpose
Routine Assessment
Project
WO_585470_TV14044_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
14 0960
Downstream MH
14 0961
Dir. of Survey
Upstream
Length Surveyed
226.9 ft.
Total Length
226.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2H00
O&M Rating
88
Overall Index
2
Overall Quick
—
Overall Rating
88
Pipe schematic from manhole 14 0960 to 14 0961
MH: 14 0960MH: 14 0961upstream0 ft. AMH - Upstream Manhole, Survey Ends - 14 09610.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE5.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish224.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start226.9 ft. AMH - Downstream Manhole, Survey Begins - 14 0960226.9 ft. MWM - Water Mark, 10 %of cross sectional area226.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK226.9 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (2)

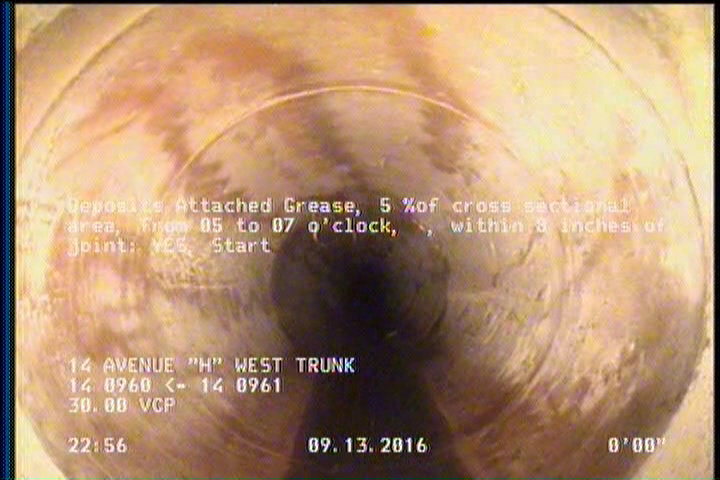

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

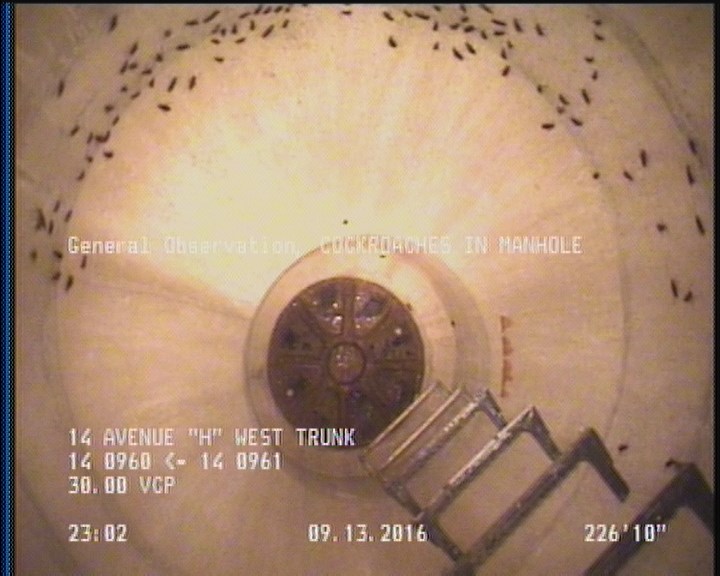

  • General Observation - COCKROACHES IN MANHOLE

    226.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P23177Work order 585470

Observations (8)

DistanceCodeObservation
226.9AMH14 0961
0AMH14 0960
0MWM—
2DAGS—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
226.8MGOCOCKROACHES IN MANHOLE
221.7DAGS—
0MWL—

Properties (6)

additional_info
SC306098
custom_field_two
4
customer
LACSD
datetime
2016-09-13T22:54:16-07:00
documentation
PRO PIPE
is_lateral_inspection
false
