Wastewater/Activity/PacpInspection/1.0Sep 14, 2016, 06:35 AM
14 0958_14 0957_09132016_233533.mp4
- Date
- 09/13/2016
- W/O
- 585470
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00957
- PipeID
- P23174
- Time
- 11:35 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3757
- Sewer Name
- 14 AVENUE "H" WEST TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_585470_TV14044_AUG2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 14 0958
- Downstream MH
- 14 0957
- Dir. of Survey
- Downstream
- Length Surveyed
- 366.5 ft.
- Total Length
- 366.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 144
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 144
Observation photos (2)

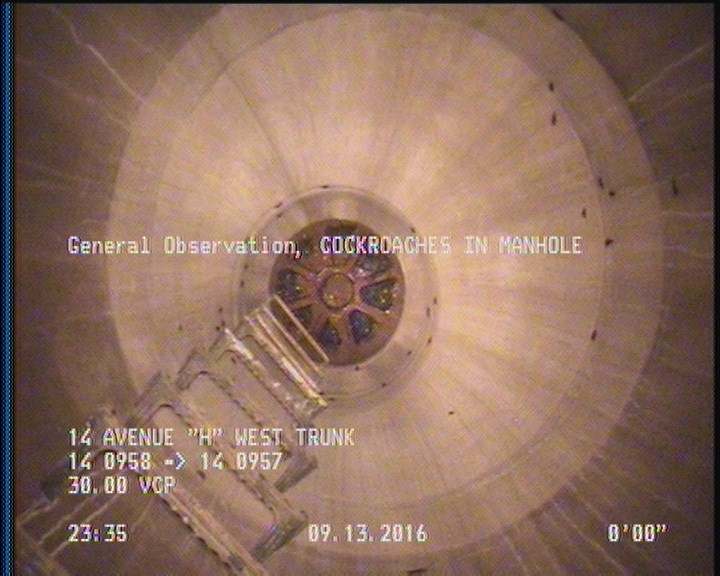

0 ft. - General Observation - COCKROACHES IN MANHOLE

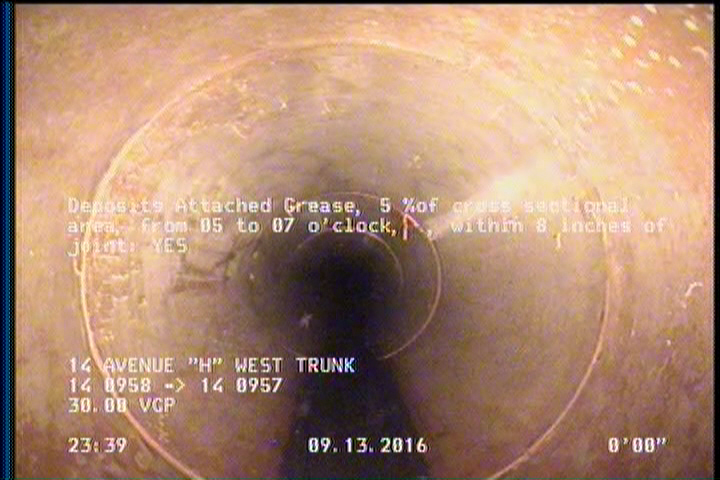

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 14 0958 |
| 360.3 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 366.5 | AMH | 14 0957 |
| 366.5 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
Properties (6)
- additional_info
- SC306098
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-13T23:35:14-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
