Wastewater/Activity/PacpInspection/1.0Mar 3, 2016, 10:48 AM
14 0533_14 0532_03032016_024829.mp4
- Date
- 03/03/2016
- W/O
- 552346
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00588
- PipeID
- P18622
- Time
- 2:48 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3274
- Sewer Name
- 14 35TH STREET WEST TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_552346_TV14042_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 14 0533
- Downstream MH
- 14 0532
- Dir. of Survey
- Downstream
- Length Surveyed
- 530.3 ft.
- Total Length
- 530.3 ft.
- Structural Index
- 3
- Structural Quick
- 3T2T
- Structural Rating
- 525
- O&M Index
- 2
- O&M Quick
- 2T00
- O&M Rating
- 210
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 735
Observation photos (3)

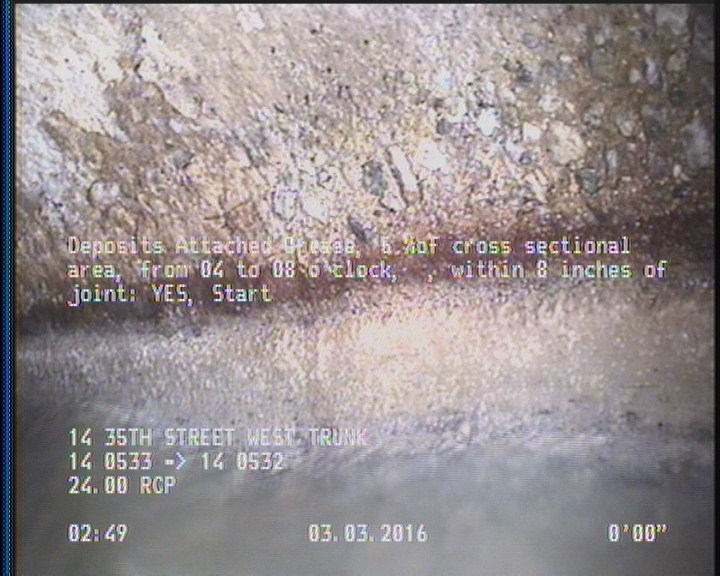

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

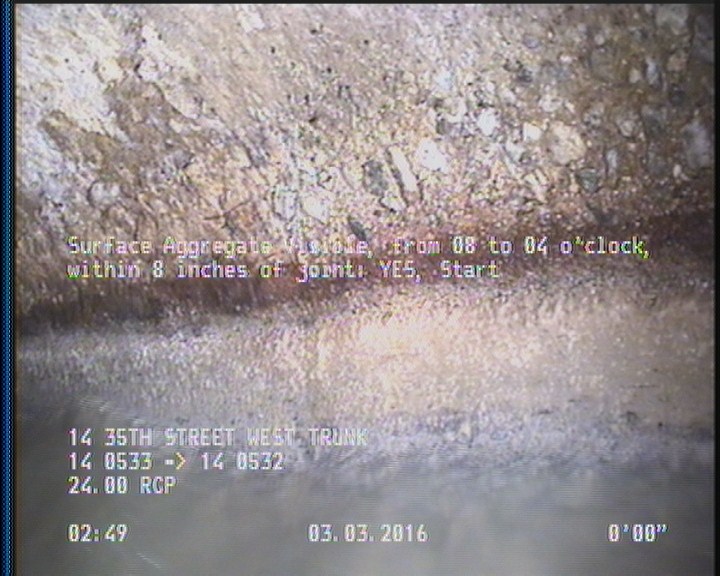

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

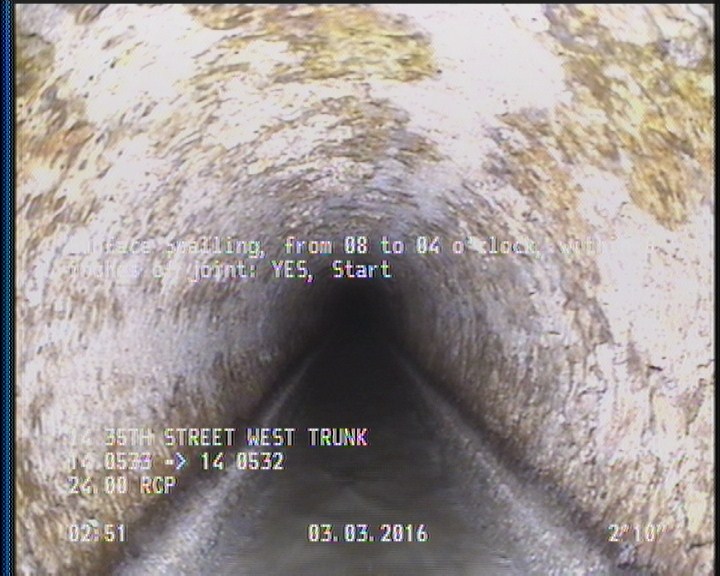

2.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 528.8 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 2 | SAV | — |
| 528.8 | SAV | — |
| 2.9 | SSS | — |
| 2 | MGO | MAG COATING 15% |
| 530.3 | AMH | 14 0532 |
| 0 | AMH | 14 0533 |
| 528.8 | SSS | — |
Properties (6)
- additional_info
- SC225498
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-03T02:48:00-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
