Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2016, 08:09 PM

  • G 0127_G 0126_20160107_001833.mp4

Date
01/07/2016
W/O
547460
Weather
Damp
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01180
PipeID
P25032
Time
12:09 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3108
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
19
Purpose
Routine Assessment
Project
WO_547460_TV01004_JAN2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
36 in.
Upstream MH
G 0127
Downstream MH
G 0126
Dir. of Survey
Downstream
Length Surveyed
336.1 ft.
Total Length
336.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2X00
O&M Rating
252
Overall Index
2
Overall Quick
—
Overall Rating
252
Pipe schematic from manhole G 0127 to G 0126
MH: G 0127MH: G 0126downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - G 01272 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start31.1 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - HYDROGEN SULFIDE BUILDUP331.4 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish331.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish336.1 ft. MGO - General Observation - CONNECTION AT MANHOLE ACTIVE 3 O'CLOCK336.1 ft. AMH - Downstream Manhole, Survey Ends - G 0126336.1 ft. MGO - General Observation - CONNECTION AT MANHOLE ACTIVE 9 O'CLOCK

Observation photos (4)

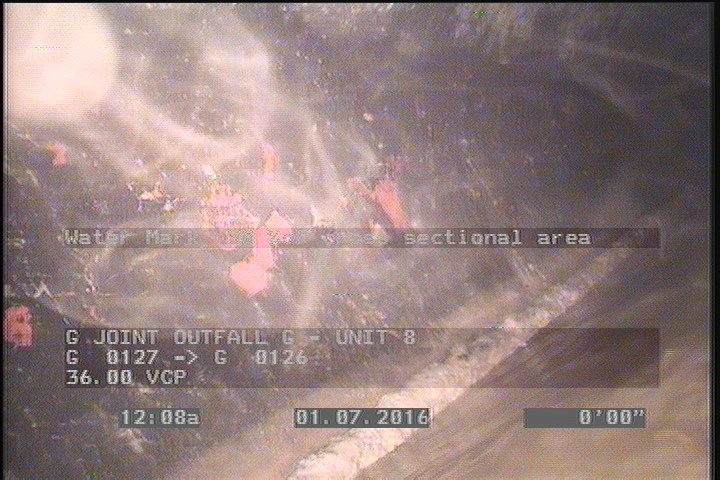

  • Water Mark, 30 %of cross sectional area

    0 ft. - Water Mark, 30 %of cross sectional area

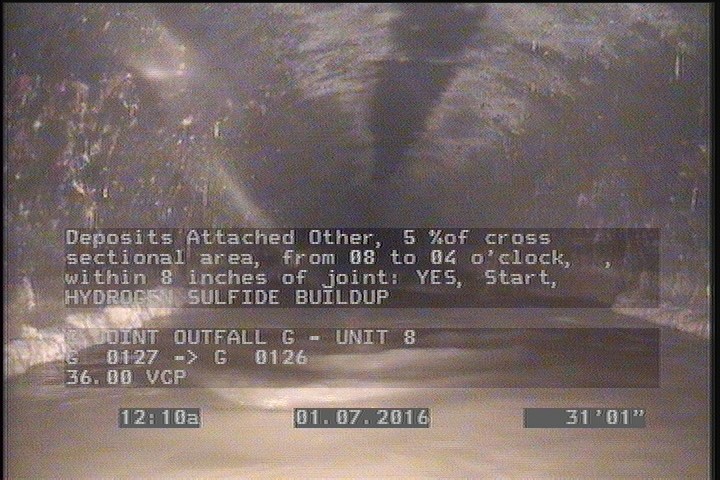

  • Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - HYDROGEN SULFIDE BUILDUP

    31.1 ft. - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - HYDROGEN SULFIDE BUILDUP

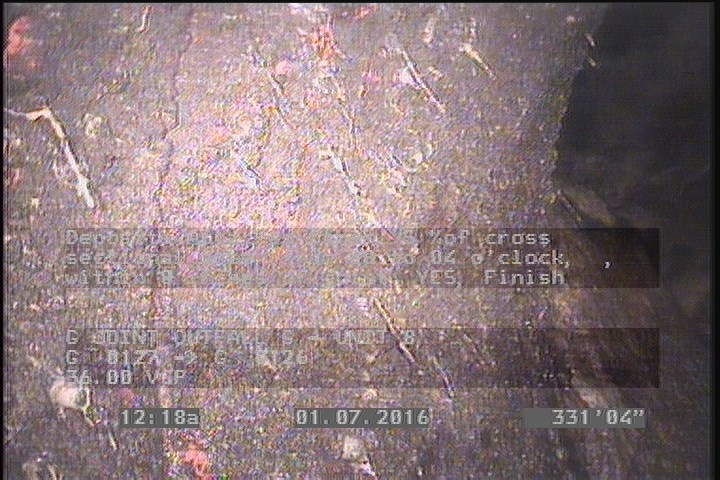

  • Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish

    331.4 ft. - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish

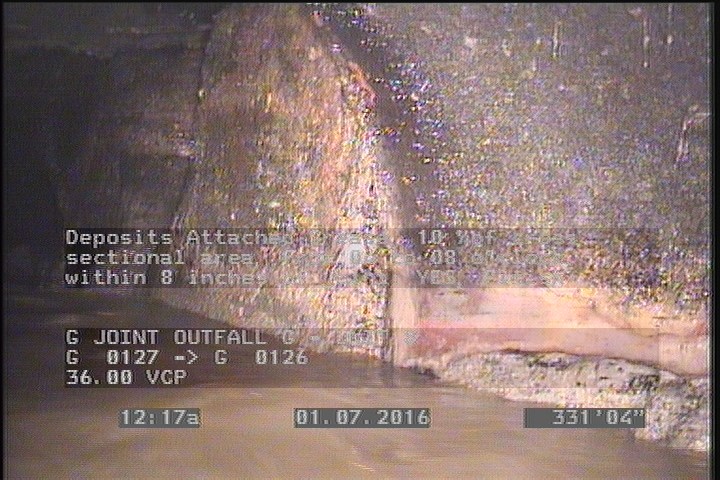

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

    331.4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

All inspections of P25032Work order 547460

Observations (10)

DistanceCodeObservation
0MWL—
2DAGS—
336.1MGOCONNECTION AT MANHOLE ACTIVE 3 O'CLOCK
336.1AMHG 0126
331.4DAZ—
331.4DAGS—
31.1DAZHYDROGEN SULFIDE BUILDUP
336.1MGOCONNECTION AT MANHOLE ACTIVE 9 O'CLOCK
0MWM—
0AMHG 0127

Properties (7)

additional_info
SC224489
custom_field_two
4
customer
LACSD
datetime
2016-01-07T12:09:18-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
year_laid
20040209
