Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 09:48 AM

  • G 0177_G 0176_20160112_020226.mp4

Date
01/12/2016
W/O
547459
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01180
PipeID
P01082
Time
1:48 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3112
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
LYNNWOOD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_547459_TV01053_JAN2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
G 0177
Downstream MH
G 0176
Dir. of Survey
Downstream
Length Surveyed
331.4 ft.
Total Length
331.4 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole G 0177 to G 0176
MH: G 0177MH: G 0176downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 & 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - G 01770 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area2.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start309 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES328.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish331.4 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK331.4 ft. AMH - Downstream Manhole, Survey Ends - G 0176

Observation photos (2)

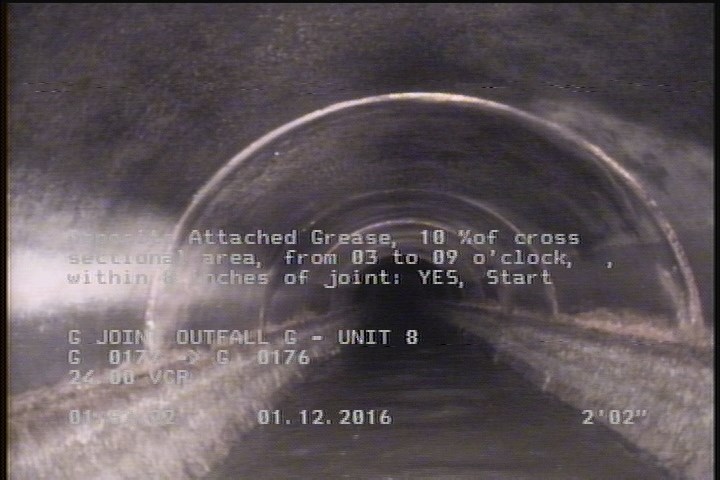

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

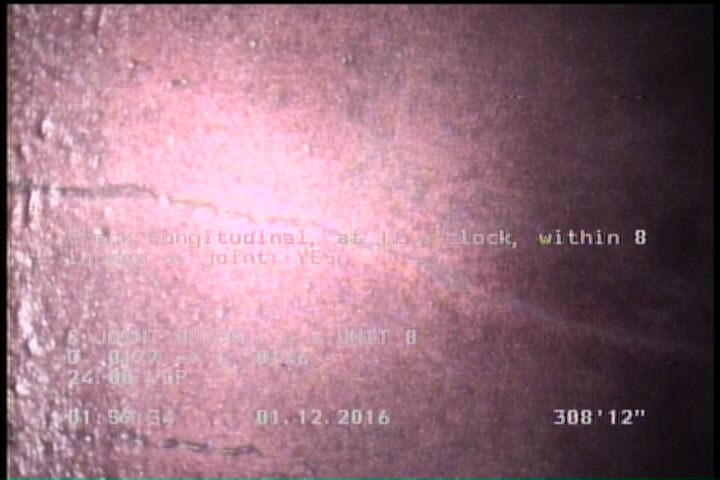

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    309 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P01082Work order 547459

Observations (9)

DistanceCodeObservation
0MGOCONNECTION AT MH 3 & 9 OCLOCK
331.4MGOCONNECTION AT MH 3 OCLOCK
331.4AMHG 0176
0AMHG 0177
328.4DAGS—
0MWL—
2.2DAGS—
0MWM—
309CL—

Properties (6)

additional_info
SC224493
custom_field_two
4
customer
LACSD
datetime
2016-01-12T01:48:49-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
