Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 19, 2016, 08:09 AM

  • H 1414_H 1413 _19082016_011012.mp4

Date
08/19/2016
W/O
585476
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01204
PipeID
P16285
Time
1:09 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3569
Sewer Name
H JOINT OUTFALL H - UNIT 8M
City
WEST COVINA
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
30
Purpose
Routine Assessment
Project
WO_585476_TV22034_AUG2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
H 1414
Downstream MH
H 1413
Dir. of Survey
Downstream
Length Surveyed
419.5 ft.
Total Length
419.6 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole H 1414 to H 1413
MH: H 1414MH: H 1413downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - H 14142.8 ft. MGO - General Observation - MAG COAT 80%301.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"356.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"363.1 ft. SAV - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO380.2 ft. SAV - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO396.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"407.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO419.6 ft. AMH - Downstream Manhole, Survey Ends - H 1413

Observation photos (2)

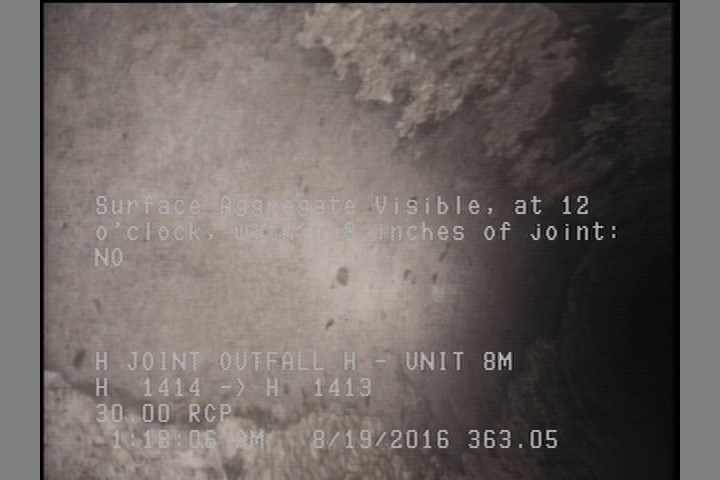

  • Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

    363.1 ft. - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

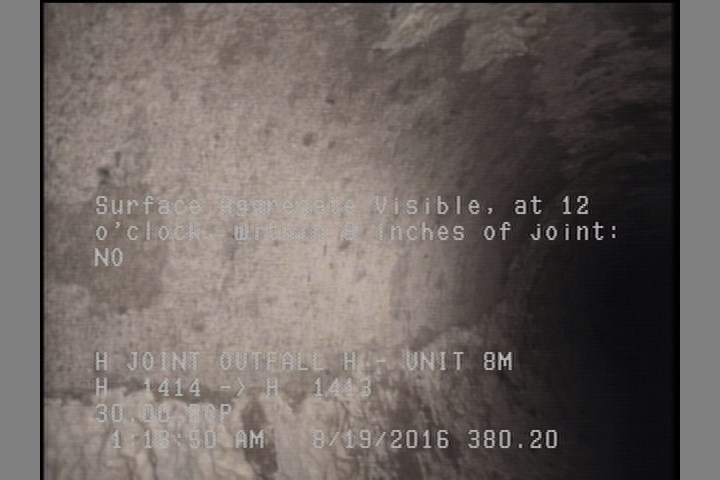

  • Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

    380.2 ft. - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

All inspections of P16285Work order 585476

Observations (12)

DistanceCodeObservation
2.8MGOMAG COAT 80%
301.5TF—
0MWM—
380.2SAV—
0MWL—
0MGOLATERAL AT MH 9 OCLOCK
396.4TF—
419.6AMHH 1413
356.6TFA—
0AMHH 1414
407.6DSZ—
363.1SAV—

Properties (6)

additional_info
SC306153
custom_field_two
4
customer
LACSD
datetime
2016-08-19T01:09:25-07:00
documentation
PROPIPE
is_lateral_inspection
false
