Wastewater/Activity/PacpInspection/1.0Aug 19, 2016, 07:49 AM
H 1415_H 1414 _19082016_005211.mp4
- Date
- 08/19/2016
- W/O
- 585476
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01204
- PipeID
- P16286
- Time
- 12:49 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3569
- Sewer Name
- H JOINT OUTFALL H - UNIT 8M
- City
- WEST COVINA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_585476_TV22034_AUG2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- H 1415
- Downstream MH
- H 1414
- Dir. of Survey
- Downstream
- Length Surveyed
- 428.5 ft.
- Total Length
- 428.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

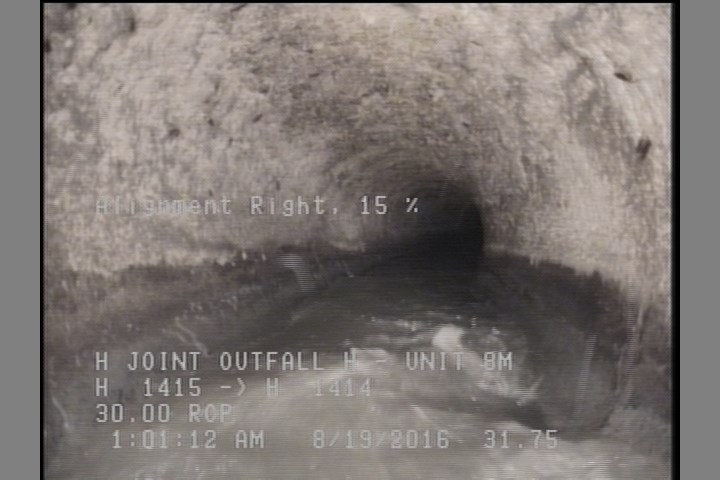

31.8 ft. - Alignment Right, 15 %

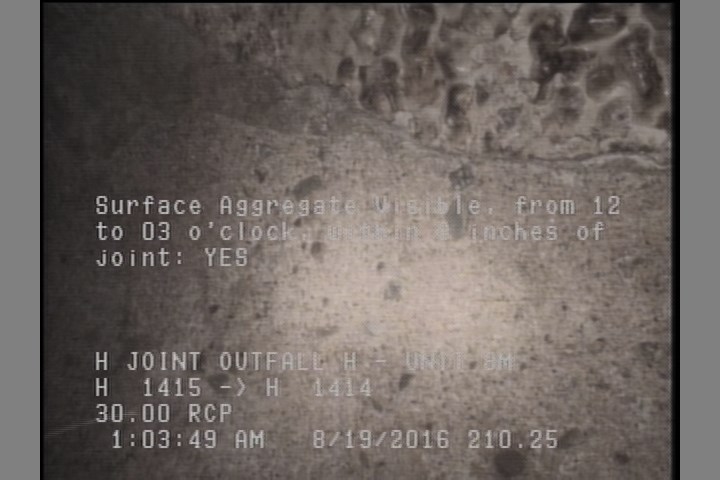

210.3 ft. - Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 428.5 | MGO | LATERAL AT MH 9 OCLOCK |
| 2.1 | MGO | MAG COAT 80% |
| 31.8 | LR | — |
| 210.3 | SAV | — |
| 0 | AMH | H 1415 |
| 379.6 | TFC | — |
| 357 | TFC | — |
| 301.2 | TFC | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 428.5 | AMH | H 1414 |
Properties (6)
- additional_info
- SC306153
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-19T00:49:17-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
