Wastewater/Activity/PacpInspection/1.0Aug 18, 2016, 06:10 AM
H 1427_H 1426 _17082016_231240.mp4
- Date
- 08/17/2016
- W/O
- 585476
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01204
- PipeID
- P16299
- Time
- 11:10 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3568
- Sewer Name
- H JOINT OUTFALL H - UNIT 8M
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_585476_TV22034_AUG2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- H 1427
- Downstream MH
- H 1426
- Dir. of Survey
- Downstream
- Length Surveyed
- 419.8 ft.
- Total Length
- 419.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 5141
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (3)

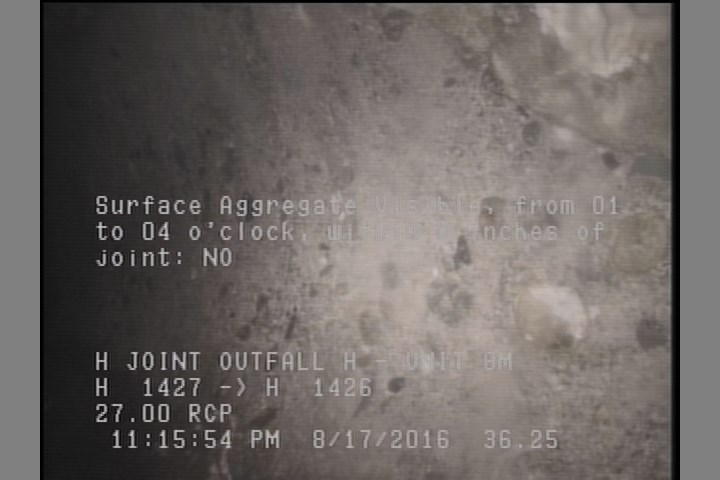

36.3 ft. - Surface Aggregate Visible, from 01 to 04 o'clock, within 8 inches of joint: NO

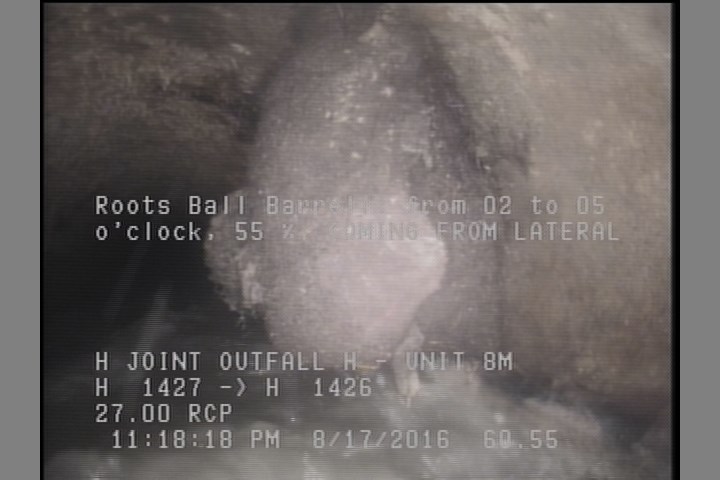

60.6 ft. - Roots Ball Barrell, from 02 to 05 o'clock, 55 % - COMING FROM LATERAL

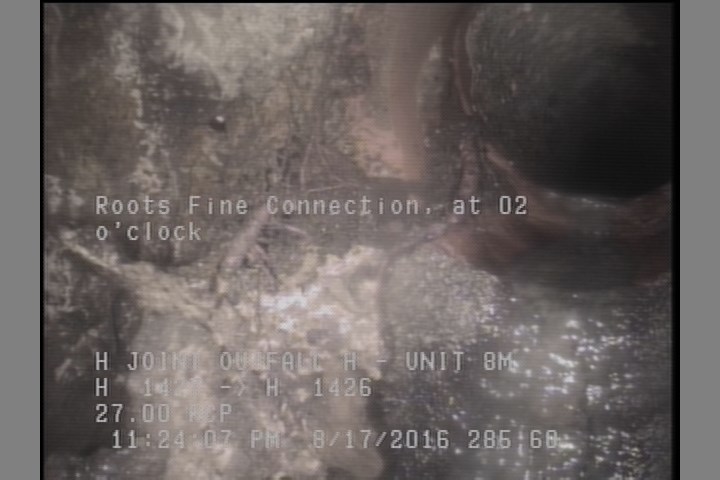

285.6 ft. - Roots Fine Connection, at 02 o'clock
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 3.2 | MGO | MAG COAT 80% |
| 60.6 | RBB | COMING FROM LATERAL |
| 0 | MWM | — |
| 0 | AMH | H 1427 |
| 413.7 | TF | — |
| 134.7 | TF | — |
| 198.3 | TF | — |
| 63.9 | TF | — |
| 0 | MGO | LATERAL AT MH 9 OCLOCK |
| 31.8 | TFC | — |
| 285.6 | TF | — |
| 341.6 | TF | — |
| 419.8 | MGO | LATERAL AT MH 9 OCLOCK |
| 0 | MWL | — |
| 36.3 | SAV | — |
| 150.4 | TF | — |
| 285.6 | RFC | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 419.8 | AMH | H 1426 |
Properties (6)
- additional_info
- SC306151
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-17T23:10:59-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
