Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 25, 2016, 05:28 AM

  • H 1389_H 1388 _24082016_222835.mp4

Date
08/24/2016
W/O
585476
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01204
PipeID
P16263
Time
10:28 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3571
Sewer Name
H JOINT OUTFALL H - UNIT 8M
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
35
Purpose
Routine Assessment
Project
WO_585476_TV22034_AUG2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
H 1389
Downstream MH
H 1388
Dir. of Survey
Downstream
Length Surveyed
397.3 ft.
Total Length
397.3 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole H 1389 to H 1388
MH: H 1389MH: H 1388downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 13890 ft. MWM - Water Mark, 20 %of cross sectional area12.6 ft. MGO - General Observation - MAG COAT 80%31 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"78.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"103 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.2 ft. SAV - Surface Aggregate Visible, from 02 to 05 o'clock, within 8 inches of joint: NO158.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"158.8 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start182.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"214.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"294.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"319 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"342.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"366.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"397.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish397.3 ft. AMH - Downstream Manhole, Survey Ends - H 1388

Observation photos (2)

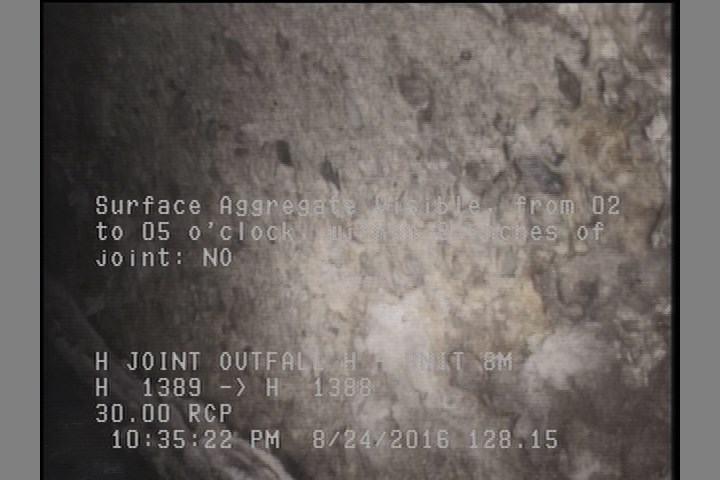

  • Surface Aggregate Visible, from 02 to 05 o'clock, within 8 inches of joint: NO

    128.2 ft. - Surface Aggregate Visible, from 02 to 05 o'clock, within 8 inches of joint: NO

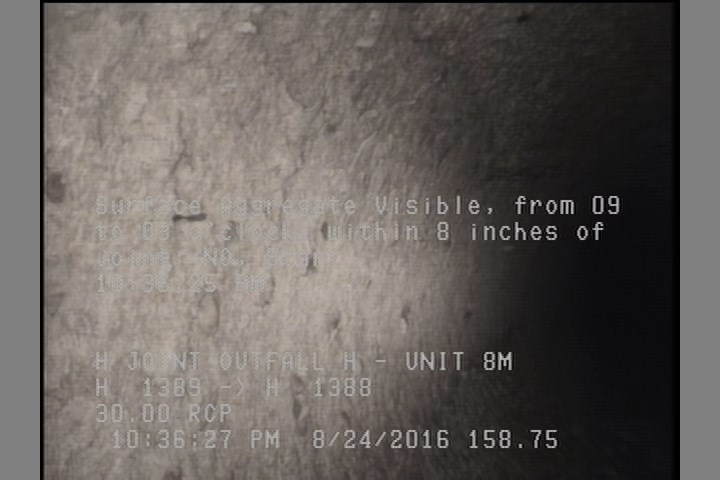

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

    158.8 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

All inspections of P16263Work order 585476

Observations (18)

DistanceCodeObservation
0MWL—
319TF—
342.8TFC—
78.5TFC—
366.9TF—
214.6TFC—
128.2SAV—
31TF—
158.8TF—
12.6MGOMAG COAT 80%
103TFC—
0AMHH 1389
0MWM—
158.8SAV—
397.3SAV—
182.4TFC—
397.3AMHH 1388
294.7TFC—

Properties (6)

additional_info
SC306158
custom_field_two
3
customer
LACSD
datetime
2016-08-24T22:28:24-07:00
documentation
PROPIPE
is_lateral_inspection
false
