Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 22, 2016, 11:10 AM

  • H 1392_H 1391 _22082016_041105.mp4

Date
08/22/2016
W/O
585476
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01204
PipeID
P16266
Time
4:10 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3570
Sewer Name
H JOINT OUTFALL H - UNIT 8M
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
35
Purpose
Routine Assessment
Project
WO_585476_TV22034_AUG2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
H 1392
Downstream MH
H 1391
Dir. of Survey
Downstream
Length Surveyed
393.1 ft.
Total Length
393.2 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole H 1392 to H 1391
MH: H 1392MH: H 1391downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 13920 ft. MWL - Water Level, 10 %of cross sectional area4.6 ft. MGO - General Observation - MAG COAT 80%48.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"56.8 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"104.5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"129.4 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"153.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"178 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"209.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"283.4 ft. SAV - Surface Aggregate Visible, from 01 to 04 o'clock, within 8 inches of joint: NO305.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"338.7 ft. SAP - Surface Aggregate Projecting, from 08 to 10 o'clock, within 8 inches of joint: YES349.1 ft. SAV - Surface Aggregate Visible, from 01 to 04 o'clock, within 8 inches of joint: NO386.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"393.2 ft. AMH - Downstream Manhole, Survey Ends - H 1391

Observation photos (3)

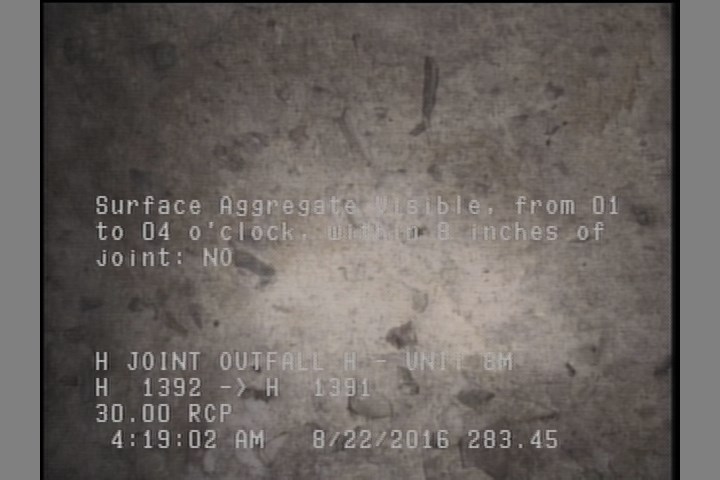

  • Surface Aggregate Visible, from 01 to 04 o'clock, within 8 inches of joint: NO

    283.4 ft. - Surface Aggregate Visible, from 01 to 04 o'clock, within 8 inches of joint: NO

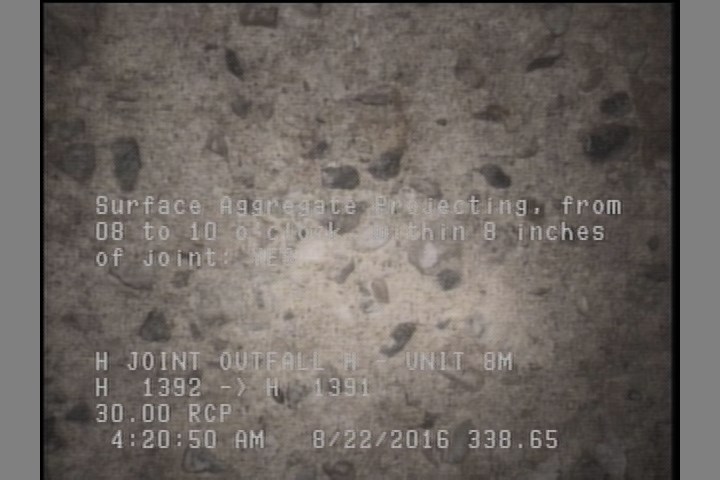

  • Surface Aggregate Projecting, from 08 to 10 o'clock, within 8 inches of joint: YES

    338.7 ft. - Surface Aggregate Projecting, from 08 to 10 o'clock, within 8 inches of joint: YES

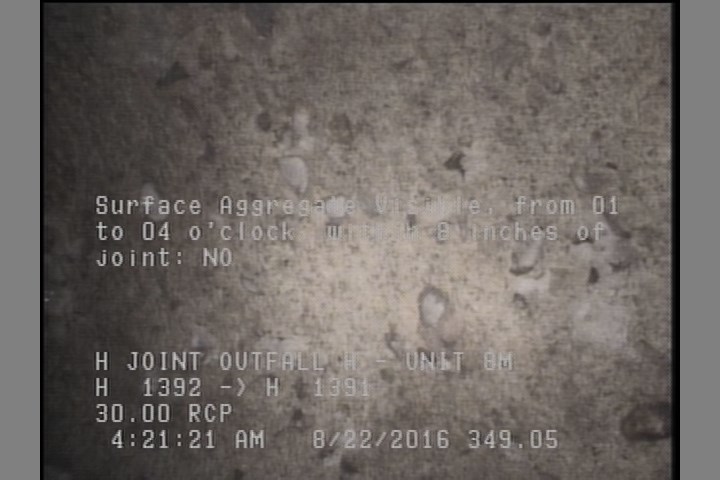

  • Surface Aggregate Visible, from 01 to 04 o'clock, within 8 inches of joint: NO

    349.1 ft. - Surface Aggregate Visible, from 01 to 04 o'clock, within 8 inches of joint: NO

All inspections of P16266Work order 585476

Observations (17)

DistanceCodeObservation
104.5TFC—
56.8TFC—
349.1SAV—
0MWM—
129.4TFC—
209.2TFC—
305.8TFC—
48.8TFC—
178TFC—
338.7SAP—
0AMHH 1392
0MWL—
393.2AMHH 1391
4.6MGOMAG COAT 80%
153.2TFC—
386.5TFC—
283.4SAV—

Properties (6)

additional_info
SC306154
custom_field_two
4
customer
LACSD
datetime
2016-08-22T04:10:31-07:00
documentation
PROPIPE
is_lateral_inspection
false
