Wastewater/Activity/PacpInspection/1.0Aug 31, 2016, 08:35 AM
29 0555A_29 0555 _20160831_023911.mp4
- Date
- 08/31/2016
- W/O
- 585950
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00537
- PipeID
- P24702
- Time
- 1:35 AM
- Certificate
- U-506-03-3383
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3695
- Sewer Name
- 29 21ST STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_585950_TV29055_AUG2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0555
- Downstream MH
- 29 0555A
- Dir. of Survey
- Upstream
- Length Surveyed
- 32.2 ft.
- Total Length
- 32.2 ft.
- Structural Index
- 2
- Structural Quick
- 3111
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

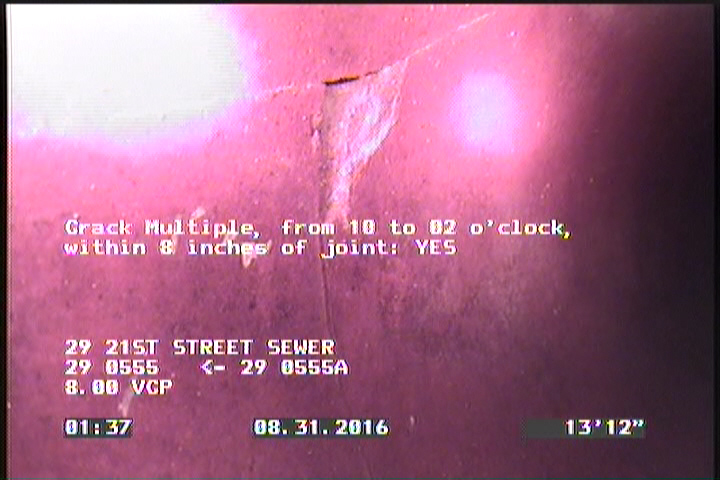

14 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

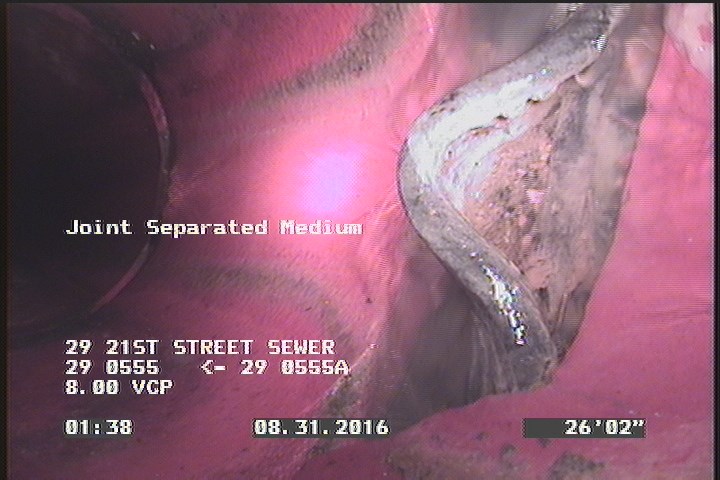

26.2 ft. - Joint Separated Medium

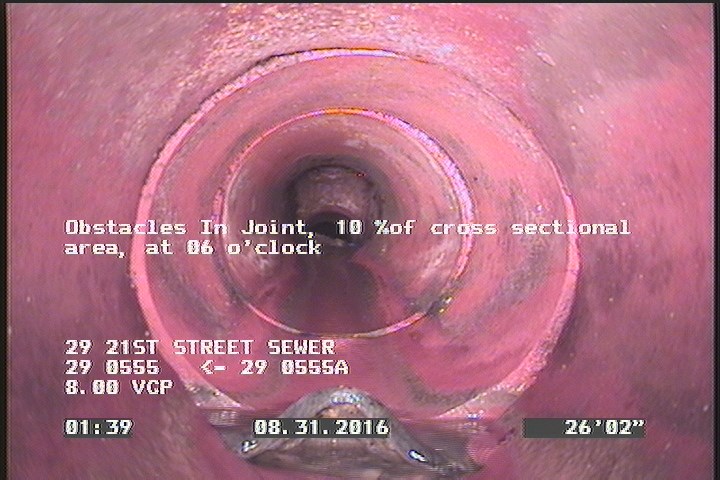

26.2 ft. - Obstacles In Joint, 10 %of cross sectional area, at 06 o'clock
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 32.2 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 0 | MWL | — |
| 0 | AMH | 29 0555 |
| 32.2 | AMH | 29 0555A |
| 26.2 | JSM | — |
| 0 | MWM | — |
| 14 | CM | — |
| 26.2 | OBJ | — |
Properties (6)
- additional_info
- SC306025
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-31T01:35:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
