Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 11, 2016, 11:24 AM

  • B 0307_B 0342_20160211_042952.mp4

Date
02/11/2016
W/O
552354
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00086
PipeID
P08818
Time
3:24 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3143
Sewer Name
B JOINT OUTFALL B - UNIT 3A
City
ROSEMEAD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
21
Purpose
Routine Assessment
Project
WO_552354_TV15103_FEB2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Upstream MH
B 0307
Downstream MH
B 0342
Dir. of Survey
Downstream
Length Surveyed
96 ft.
Total Length
96 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2B00
O&M Rating
26
Overall Index
2
Overall Quick
—
Overall Rating
26
Pipe schematic from manhole B 0307 to B 0342
MH: B 0307MH: B 0342downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - B 03070 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. MGO - General Observation - MAGNESIUM H.O. START13.8 ft. LR - Alignment Right, 15 %, Start78.5 ft. LR - Alignment Right, 15 %, Finish96 ft. AJB - Junction Box - B 0342

Observation photos (2)

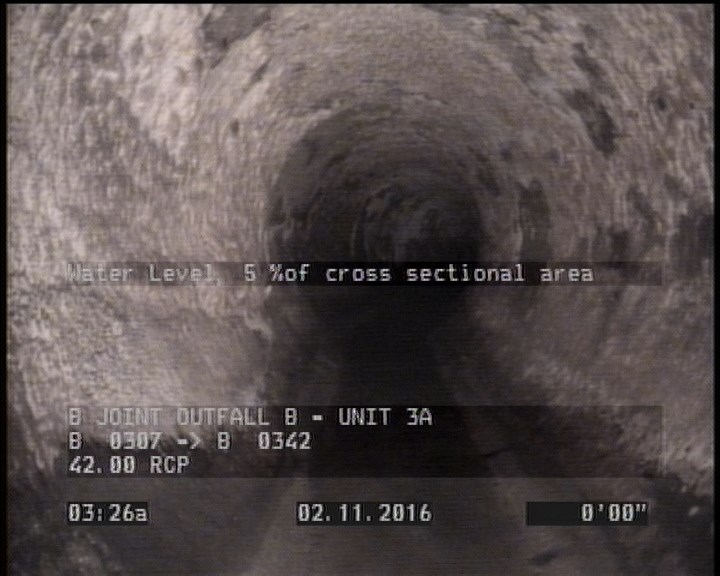

  • Water Level, 5 %of cross sectional area

    0 ft. - Water Level, 5 %of cross sectional area

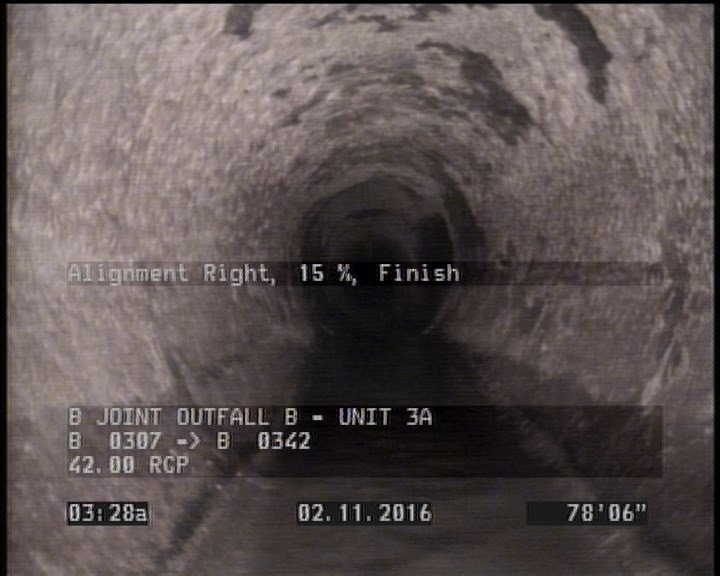

  • Alignment Right, 15 %, Finish

    78.5 ft. - Alignment Right, 15 %, Finish

All inspections of P08818Work order 552354

Observations (9)

DistanceCodeObservation
78.5LR—
0MWM—
0MGOLATERAL AT MH 3 OCLOCK
2MGOMAGNESIUM H.O. START
0AMHB 0307
0MGOLATERAL AT MH 9 OCLOCK
13.8LR—
96AJBB 0342
0MWL—

Properties (6)

additional_info
SC225530
custom_field_two
4
customer
LACSD
datetime
2016-02-11T03:24:00-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
