Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 11, 2016, 08:59 AM

  • B 0310_B 0309_20160211_021501.mp4

Date
02/11/2016
W/O
552354
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00086
PipeID
P08821
Time
12:59 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3143
Sewer Name
B JOINT OUTFALL B - UNIT 3A
City
ROSEMEAD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
21
Purpose
Routine Assessment
Project
WO_552354_TV15103_FEB2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
B 0310
Downstream MH
B 0309
Dir. of Survey
Downstream
Length Surveyed
570.8 ft.
Total Length
570.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2V00
O&M Rating
226
Overall Index
2
Overall Quick
—
Overall Rating
226
Pipe schematic from manhole B 0310 to B 0309
MH: B 0310MH: B 0309downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - B 03100 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK2 ft. MGO - General Observation - MAGNESIUM H.O. START3.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start558.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"570.8 ft. AMH - Downstream Manhole, Survey Ends - B 0309570.8 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK570.8 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK570.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (3)

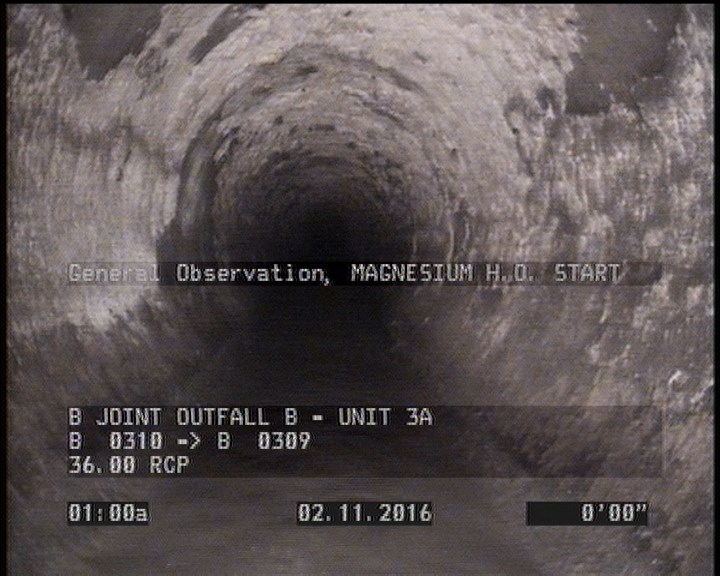

  • General Observation - MAGNESIUM H.O. START

    2 ft. - General Observation - MAGNESIUM H.O. START

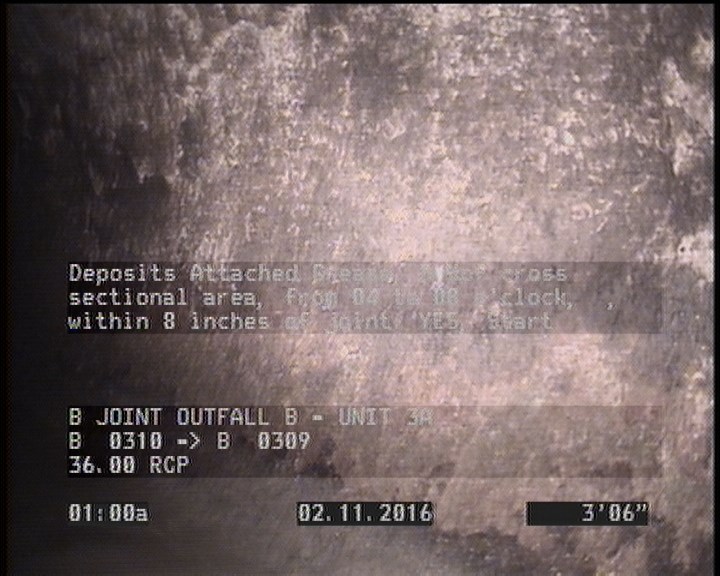

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

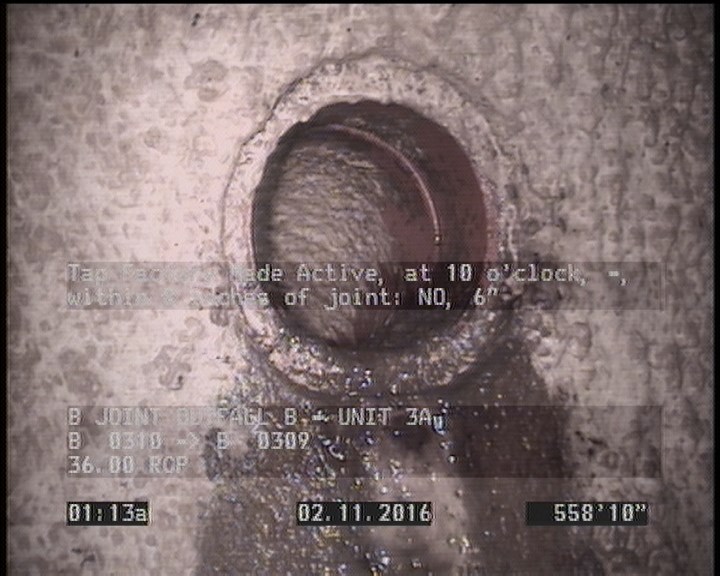

  • Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    558.8 ft. - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P08821Work order 552354

Observations (12)

DistanceCodeObservation
2MGOMAGNESIUM H.O. START
570.8AMHB 0309
0MWM—
570.8MGOLATERAL AT MH 9 OCLOCK
0MWL—
570.8MGOLATERAL AT MH 3 OCLOCK
0MGOLATERAL AT MH 9 OCLOCK
0AMHB 0310
570.8DAGS—
0MGOLATERAL AT MH 3 OCLOCK
3.5DAGS—
558.8TFA—

Properties (6)

additional_info
SC225530
custom_field_two
4
customer
LACSD
datetime
2016-02-11T00:59:00-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
