Wastewater/Activity/PacpInspection/1.0Feb 11, 2016, 08:42 AM
B 0740_B 0310_20160211_015638.mp4
- Date
- 02/11/2016
- W/O
- 552354
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00086
- PipeID
- P08822
- Time
- 12:42 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3143
- Sewer Name
- B JOINT OUTFALL B - UNIT 3A
- City
- ROSEMEAD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_552354_TV15103_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- B 0740
- Downstream MH
- B 0310
- Dir. of Survey
- Downstream
- Length Surveyed
- 557.8 ft.
- Total Length
- 557.8 ft.
- Structural Index
- 2
- Structural Quick
- 312B
- Structural Rating
- 31
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 31
Observation photos (4)

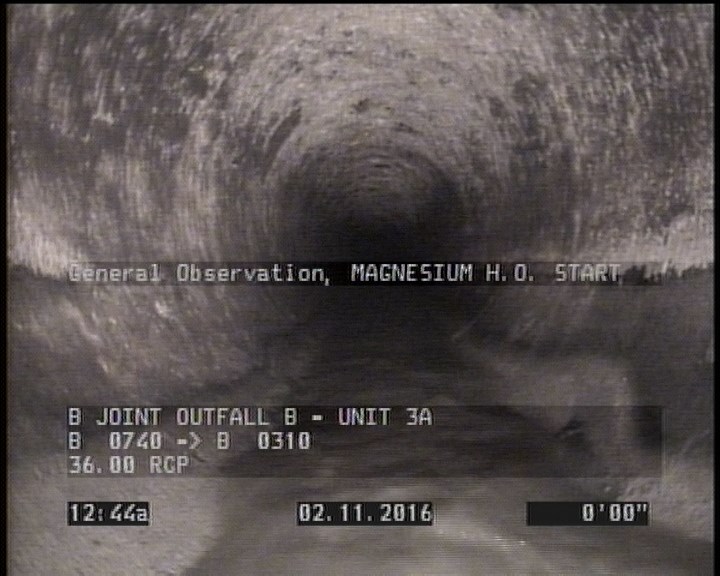

2 ft. - General Observation - MAGNESIUM H.O. START

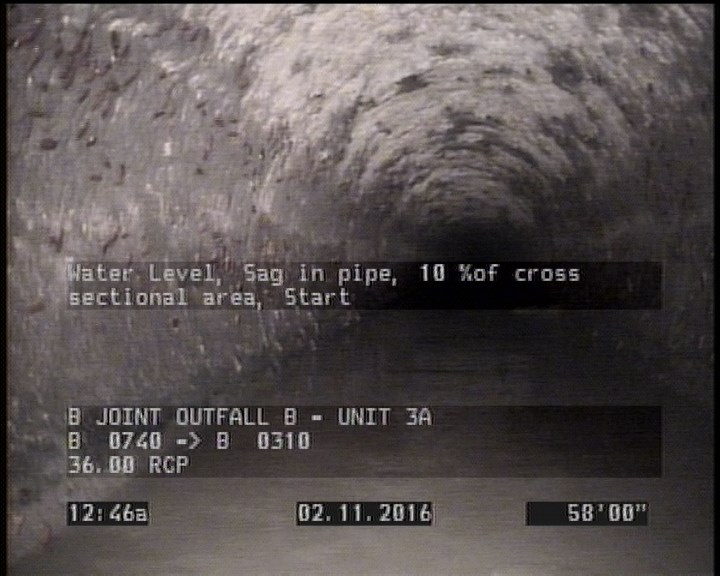

58 ft. - Water Level, Sag in pipe, 10 %of cross sectional area, Start

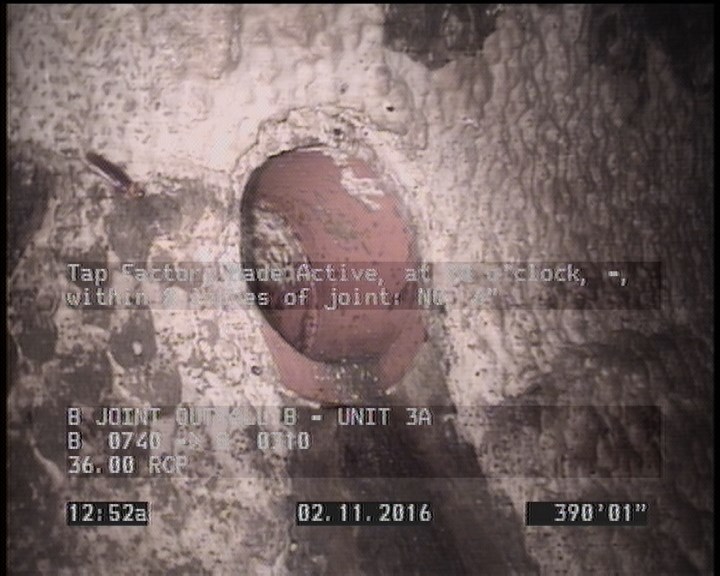

390.1 ft. - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"

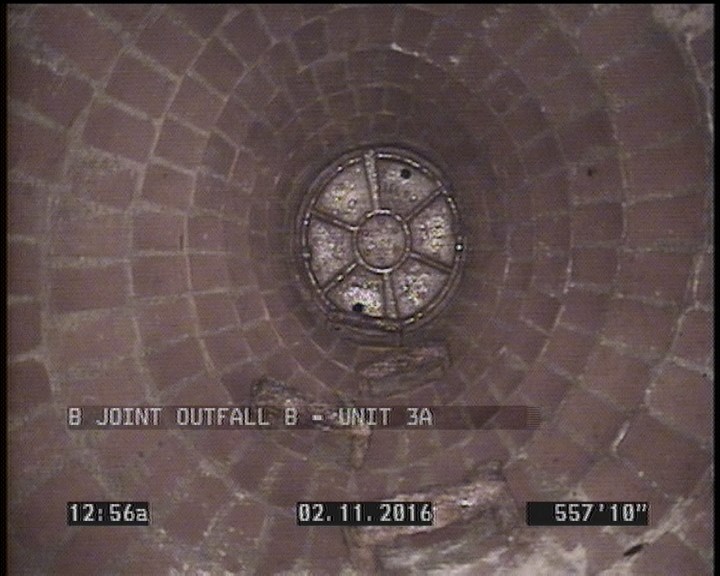

557.8 ft. - Downstream Manhole, Survey Ends - B 0310
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 557.8 | MGO | LATERAL AT MH 3 OCLOCK |
| 557.8 | MGO | LATERAL AT MH 9 OCLOCK |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 0 | MWM | — |
| 58 | MWLS | — |
| 554.6 | MGO | MAGNEZIUM H.O. FINISH |
| 2 | MGO | MAGNESIUM H.O. START |
| 390.1 | TFA | — |
| 33.8 | CM | — |
| 130.2 | MWLS | — |
| 0 | AJB | B 0740 |
| 557.8 | AMH | B 0310 |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC225530
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-11T00:42:00-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
