Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 16, 2016, 12:42 PM

  • 17 0063_17 0062_16022016_044313.mp4

Date
02/16/2016
W/O
552349
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00668
PipeID
P13782
Time
4:42 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3257
Sewer Name
17 DISTRICT #17 MAIN TRUNK
City
ALTADENA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 17
Page No.
04
Purpose
Routine Assessment
Project
WO_552349_TV17005_FEB2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Other
Height
18 in.
Upstream MH
17 0063
Downstream MH
17 0062
Dir. of Survey
Downstream
Length Surveyed
399.3 ft.
Total Length
399.3 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
237
O&M Index
2
O&M Quick
4131
O&M Rating
167
Overall Index
3
Overall Quick
—
Overall Rating
404
Pipe schematic from manhole 17 0063 to 17 0062
MH: 17 0063MH: 17 0062downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 17 00632 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3.5 ft. MGO - General Observation - MAG COATING 80%40.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"199.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"294.5 ft. RML - Roots Medium Lateral, from 11 to 01 o'clock, 15 %, within 8 inches of joint: YES294.5 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS397.6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish397.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish399.3 ft. AMH - Downstream Manhole, Survey Ends - 17 0062399.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (5)

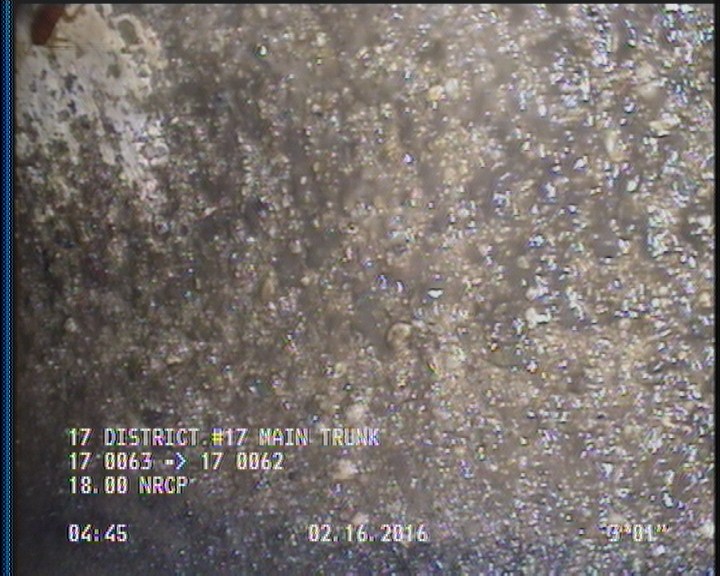

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

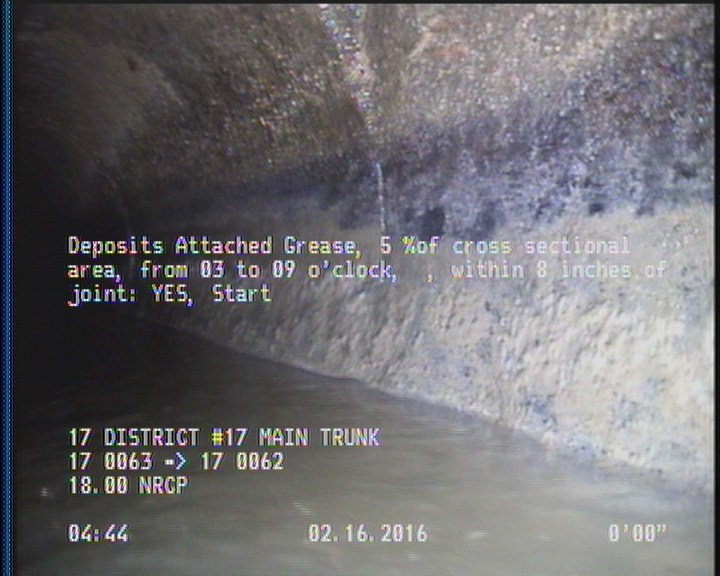

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • General Observation - MAG COATING 80%

    3.5 ft. - General Observation - MAG COATING 80%

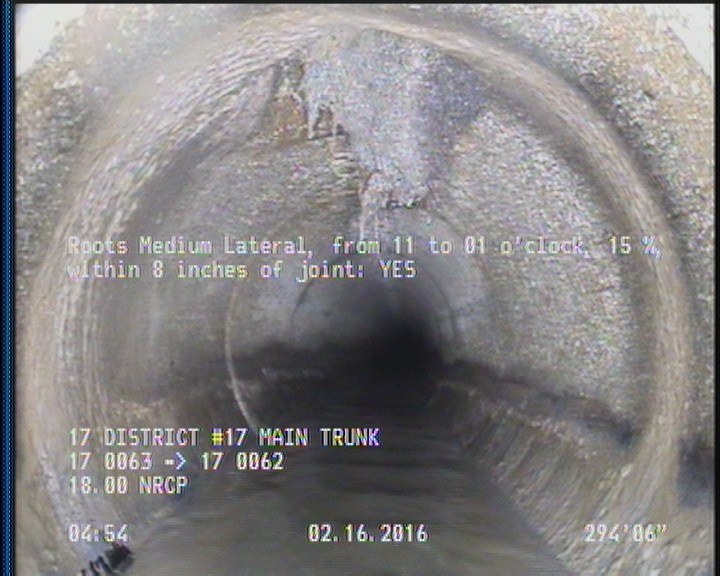

  • Roots Medium Lateral, from 11 to 01 o'clock, 15 %, within 8 inches of joint: YES

    294.5 ft. - Roots Medium Lateral, from 11 to 01 o'clock, 15 %, within 8 inches of joint: YES

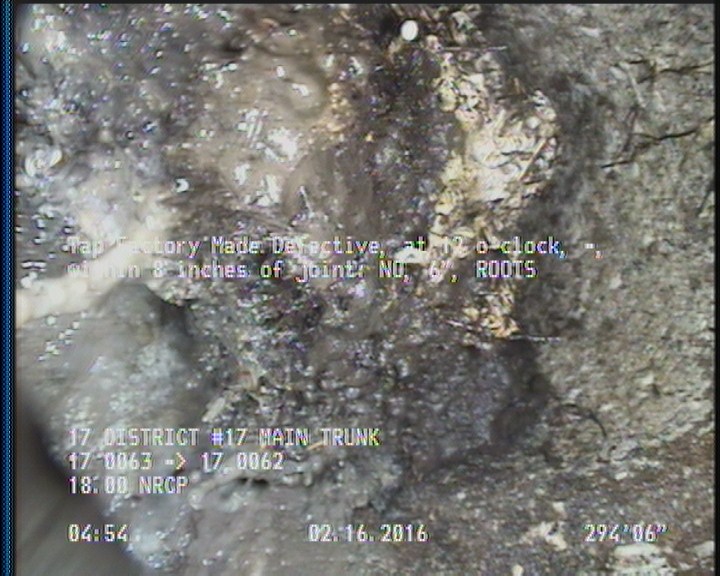

  • Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS

    294.5 ft. - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS

All inspections of P13782Work order 552349

Observations (14)

DistanceCodeObservation
0MWM—
0MWL—
2SAV—
399.3AMH17 0062
3.5MGOMAG COATING 80%
397.6SAV—
0AMH17 0063
2DAGS—
294.5RML—
40.4TFC—
399.3MGOACTIVE CONNECTION AT MH 3 O'CLOCK
397.6DAGS—
199.7TFC—
294.5TFDROOTS

Properties (6)

additional_info
SC225479
custom_field_two
3
customer
LACSD
datetime
2016-02-16T04:42:47-08:00
documentation
PRO PIPE
is_lateral_inspection
false
