Wastewater/Activity/PacpInspection/1.0Feb 12, 2016, 07:01 AM
17 0072_17 0071_11022016_230239.mp4
- Date
- 02/11/2016
- W/O
- 552349
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00668
- PipeID
- P13791
- Time
- 11:01 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3256
- Sewer Name
- 17 DISTRICT #17 MAIN TRUNK
- City
- ALTADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 17
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_552349_TV17005_FEB2016
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Other
- Height
- 15 in.
- Upstream MH
- 17 0072
- Downstream MH
- 17 0071
- Dir. of Survey
- Downstream
- Length Surveyed
- 186.7 ft.
- Total Length
- 186.7 ft.
- Structural Index
- 3
- Structural Quick
- 3F00
- Structural Rating
- 111
- O&M Index
- 2
- O&M Quick
- 2F11
- O&M Rating
- 75
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 186
Observation photos (4)

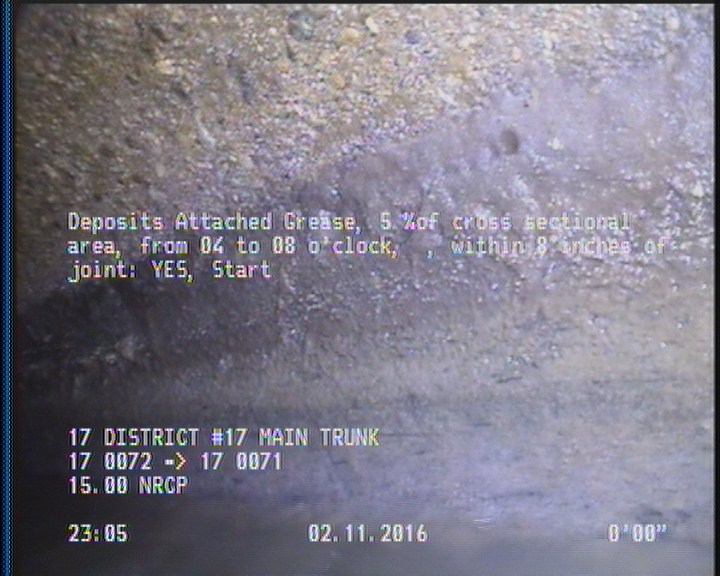

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

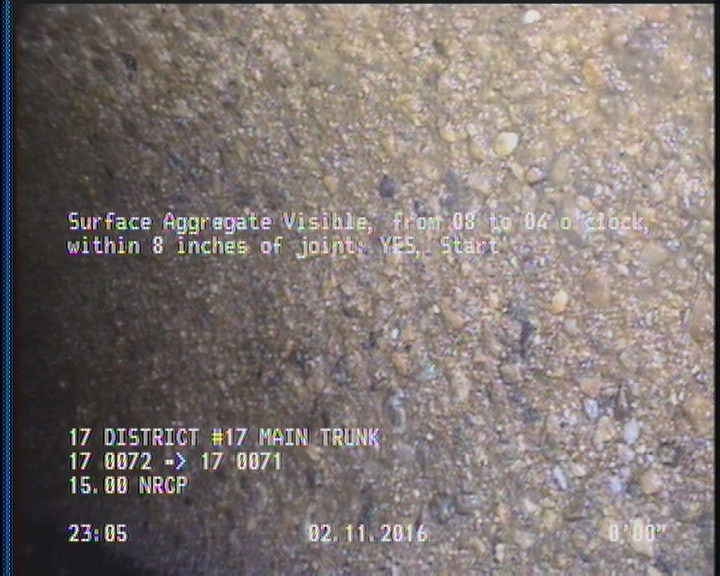

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

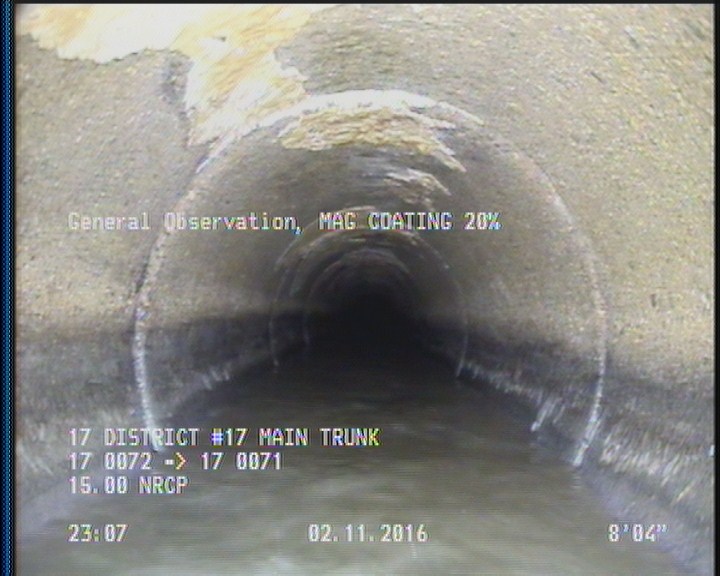

8.4 ft. - General Observation - MAG COATING 20%

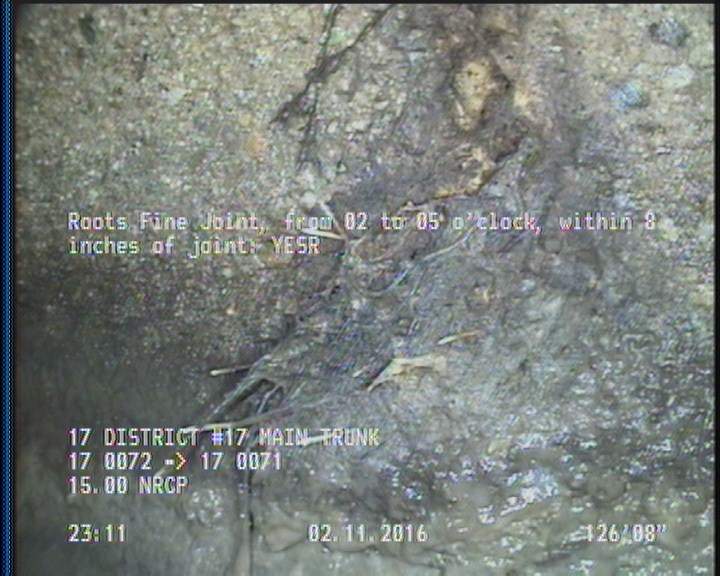

126.7 ft. - Roots Fine Joint, from 02 to 05 o'clock, within 8 inches of joint: YESR
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 184.8 | DAGS | — |
| 85.6 | TFA | — |
| 0 | MWM | — |
| 0 | AMH | 17 0072 |
| 61.1 | TFA | — |
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 143.3 | TFA | — |
| 186.7 | AMH | 17 0071 |
| 184.8 | SAV | — |
| 2 | SAV | — |
| 8.4 | MGO | MAG COATING 20% |
| 126.7 | RFJ | — |
| 146.4 | TFA | — |
Properties (6)
- additional_info
- SC225478
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-11T23:01:58-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
