Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 30, 2019, 09:17 AM

  • 6_1_3_30052019_022230.mp4

  • 6_1_3_30052019_022230.mp4

Date
05/30/2019
W/O
766493
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00228
PipeID
P01793
Time
2:17 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6555
Sewer Name
01 WRIGHT ROAD TRUNK
City
BELL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
WO_766493_TV01251_MAY2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 0956
Downstream MH
01 0955
Dir. of Survey
Downstream
Length Surveyed
40.9 ft.
Total Length
40.9 ft.
Structural Index
2
Structural Quick
2300
Structural Rating
6
O&M Index
2
O&M Quick
2700
O&M Rating
14
Overall Index
2
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 01 0956 to 01 0955
MH: 01 0956MH: 01 0955downstream0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. MGO - General Observation - CONNECTION IN MH 3 OCLOCK0 ft. MGO - General Observation - CONNECTION IN MH 9 OCLOCK0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 09562.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start21.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Start37.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Finish39.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish40.9 ft. AMH - Downstream Manhole, Survey Ends - 01 095540.9 ft. MGO - General Observation - CONNECTION IN MH 3 OCLOCK

Observation photos (2)

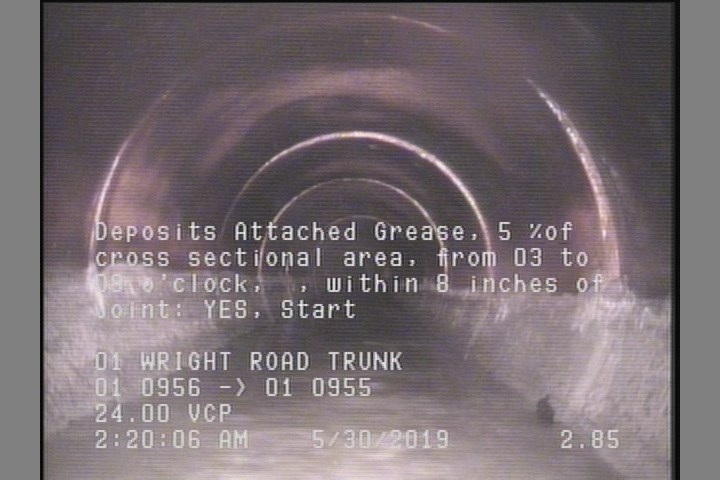

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

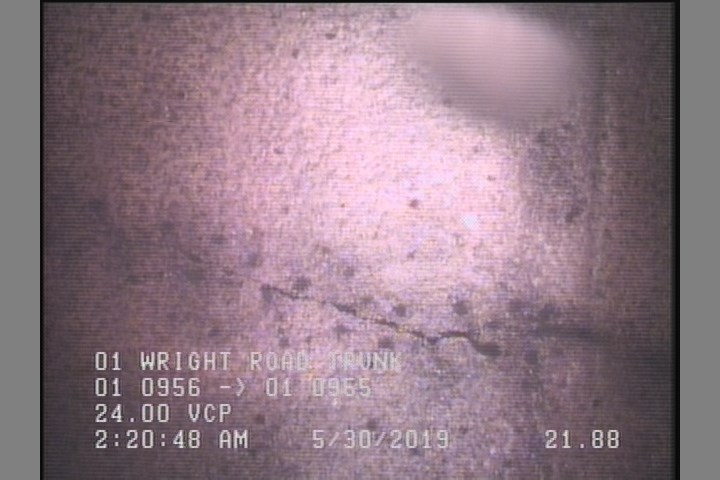

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Start

    21.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO, Start

All inspections of P01793Work order 766493

Observations (11)

DistanceCodeObservation
0MWM—
0MGOCONNECTION IN MH 3 OCLOCK
0MGOCONNECTION IN MH 9 OCLOCK
40.9AMH01 0955
39.2DAGS—
0MWL—
2.9DAGS—
21.9CL—
37.2CL—
40.9MGOCONNECTION IN MH 3 OCLOCK
0AMH01 0956

Properties (7)

additional_info
SC377677
custom_field_two
3
customer
LACSD
datetime
2019-05-30T02:17:37-07:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
10286
