Wastewater/Activity/PacpInspection/1.0Jun 21, 2019, 05:35 AM
14_1_1_20062019_224459.mp4
- Date
- 06/20/2019
- W/O
- 766407
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00349
- PipeID
- P02978
- Time
- 10:35 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6572
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- BELL GARDENS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_766407_TV02220_MAY2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- 02 1407
- Downstream MH
- 02 1406
- Dir. of Survey
- Downstream
- Length Surveyed
- 185.1 ft.
- Total Length
- 185.1 ft.
- Structural Index
- 4
- Structural Quick
- 5F3F
- Structural Rating
- 304
- O&M Index
- 1
- O&M Quick
- 1A00
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 314
Observation photos (3)

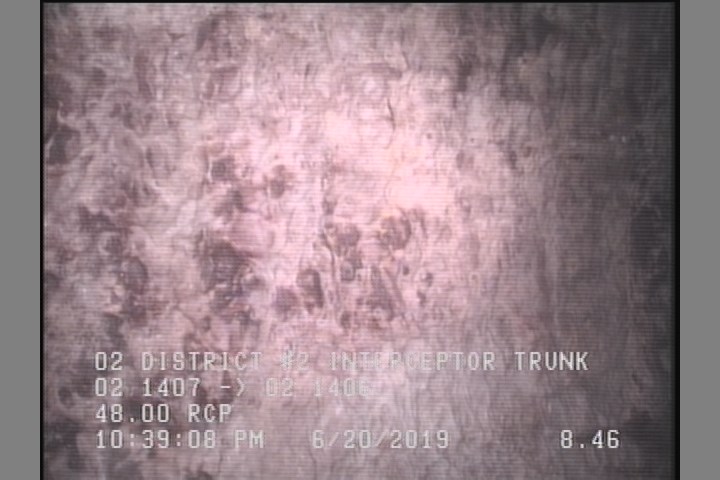

8.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

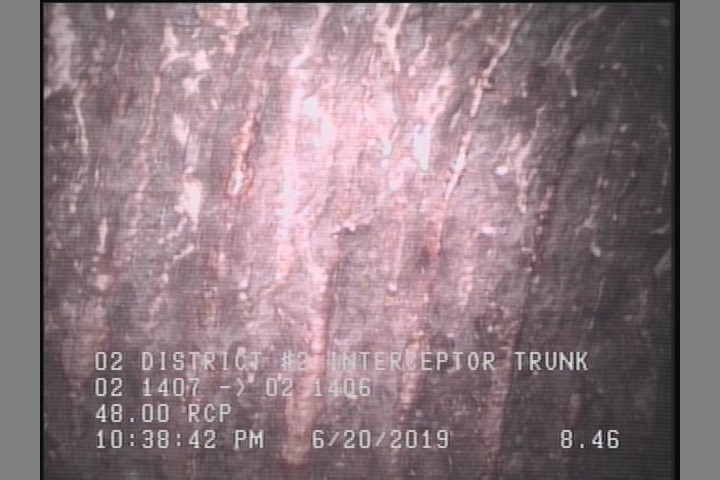

8.5 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

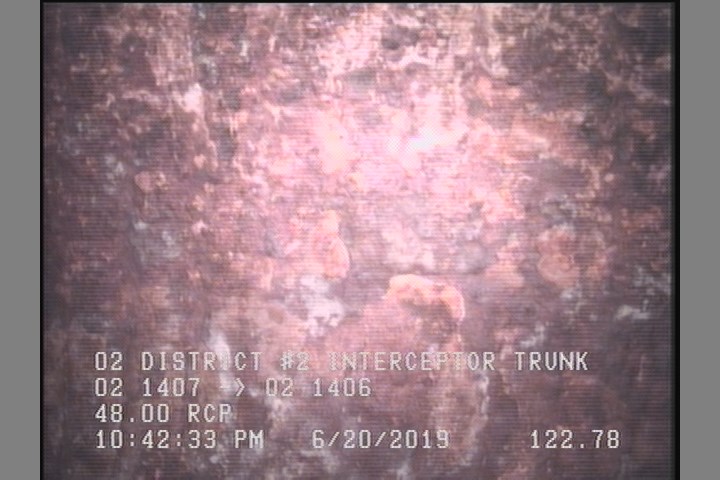

122.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 122.8 | SSS | — |
| 0 | MWL | — |
| 0 | AMH | 02 1407 |
| 8.5 | SAP | — |
| 8.5 | SRV | — |
| 185.1 | AMH | 02 1406 |
| 0 | MGO | CONNECTION IN MH 9 OCLOCK |
| 67.3 | MGO | MAG COAT THROUGHOUT PIPE |
| 8.5 | MGO | CAMERA UNSTABLE DUE TO TURBULENT FLOW |
| 181.7 | SAP | — |
| 181.7 | SSS | — |
| 185.1 | MGO | CONNECTION IN MH 9 OCLOCK |
| 8.5 | LL | — |
| 0 | MWM | — |
| 181.7 | SRV | — |
| 57 | LL | — |
Properties (6)
- additional_info
- SC377697
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-06-20T22:35:18-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
