Wastewater/Activity/PacpInspection/1.0Jun 20, 2019, 10:34 AM
17_1_1_20062019_034059.mp4
- Date
- 06/20/2019
- W/O
- 766407
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00349
- PipeID
- P02994
- Time
- 3:34 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6571
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- BELL GARDENS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_766407_TV02220_MAY2019
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Width
- 60 in.
- Upstream MH
- 02 1423
- Downstream MH
- 02 1422
- Dir. of Survey
- Downstream
- Length Surveyed
- 6.6 ft.
- Total Length
- 6.6 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

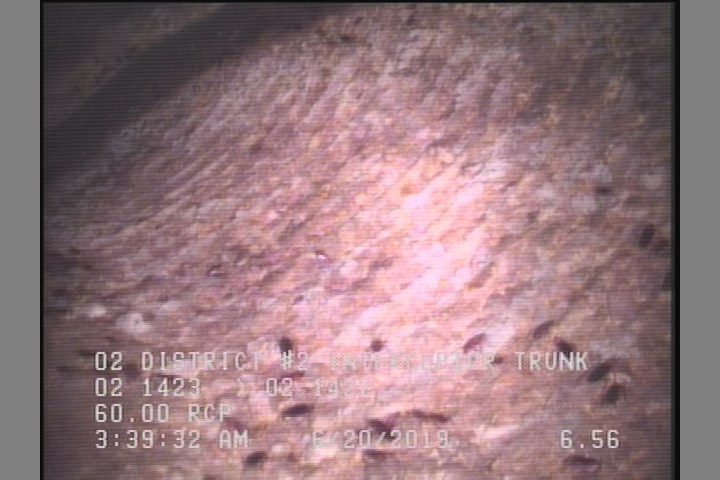

6.6 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO

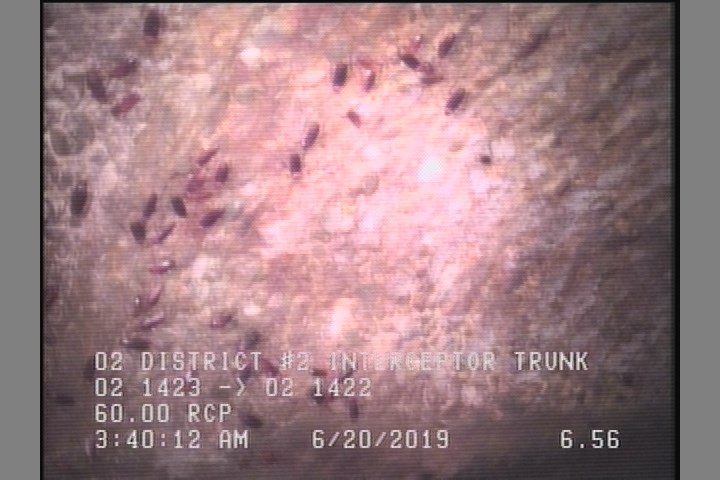

6.6 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: NO

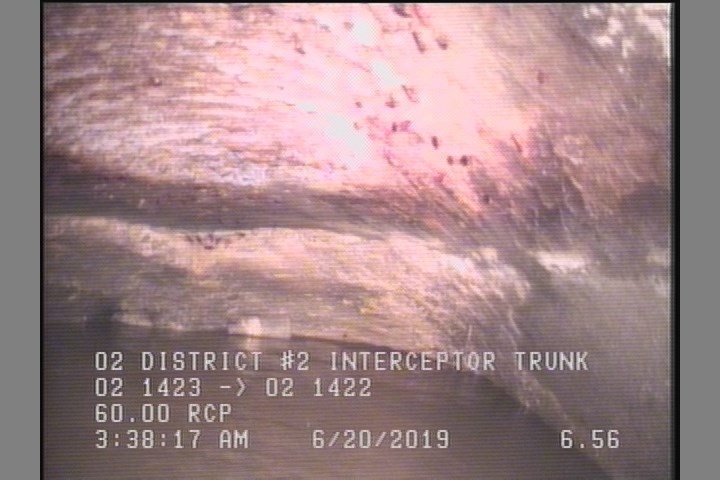

6.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 6.6 | SRV | — |
| 6.6 | SAP | — |
| 6.6 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 6.6 | MSA | VIEW OF THE DOWNLEG PIPE FROM THE U/S SIDE OF THE |
| 0 | AMH | 02 1423 |
Properties (6)
- additional_info
- SC377696
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-06-20T03:34:21-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
