Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 21, 2018, 07:43 AM

  • 32 0146_32 0145A _21082018_005616.mp4

Date
08/21/2018
W/O
723911
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00887
PipeID
P19895
Time
12:43 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6007
Sewer Name
32 DISTRICT #32 MAIN TRUNK
City
SANTA CLARITA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
13
Purpose
Routine Assessment
Project
WO_723911_TV32048_SEP2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
32 0146
Downstream MH
32 0145A
Dir. of Survey
Downstream
Length Surveyed
387.9 ft.
Total Length
387.9 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
231
O&M Index
2
O&M Quick
412N
O&M Rating
158
Overall Index
3
Overall Quick
—
Overall Rating
389
Pipe schematic from manhole 32 0146 to 32 0145A
MH: 32 0146MH: 32 0145Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 32 01460 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start32.3 ft. MGO - General Observation - MAG COATING THROUGHOUT 60%387.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish387.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE387.8 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish387.9 ft. AMH - Downstream Manhole, Survey Ends - 32 0145A387.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK387.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

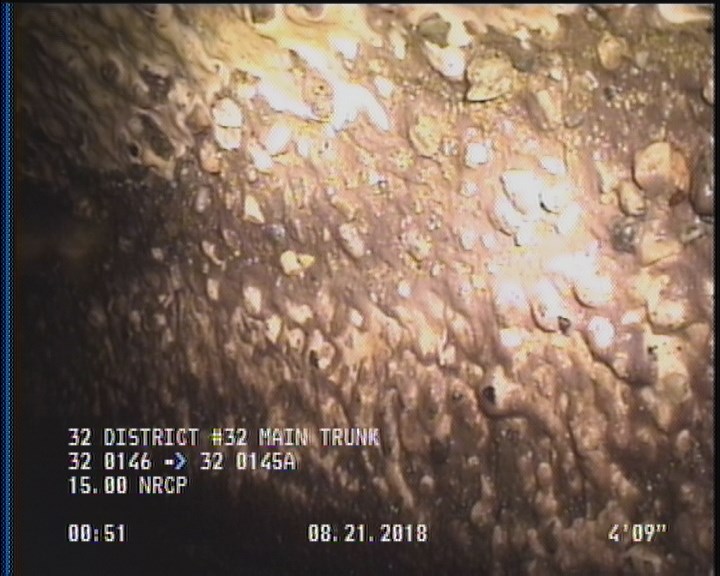

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    387.8 ft. - General Observation - COCKROACHES IN MANHOLE

  • General Observation - COCKROACHES IN MANHOLE

    387.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P19895Work order 723911

Observations (12)

DistanceCodeObservation
2DAGS—
387.9AMH32 0145A
0AMH32 0146
387.9MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWM—
0MWL—
387.8DAGS—
387.8MGOCOCKROACHES IN MANHOLE
387.8SAP—
2SAP—
32.3MGOMAG COATING THROUGHOUT 60%
387.9MGOCOCKROACHES IN MANHOLE

Properties (6)

additional_info
SC364777
custom_field_two
2
customer
LACSD
datetime
2018-08-21T00:43:09-07:00
documentation
PRO PIPE
is_lateral_inspection
false
