Wastewater/Activity/PacpInspection/1.0Aug 21, 2018, 07:56 AM
32 0145A_32 0145 _21082018_010732.mp4
- Date
- 08/21/2018
- W/O
- 723911
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00887
- PipeID
- P19894
- Time
- 12:56 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6007
- Sewer Name
- 32 DISTRICT #32 MAIN TRUNK
- City
- SANTA CLARITA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_723911_TV32048_SEP2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0145A
- Downstream MH
- 32 0145
- Dir. of Survey
- Downstream
- Length Surveyed
- 191.3 ft.
- Total Length
- 191.3 ft.
- Structural Index
- 3
- Structural Quick
- 3G00
- Structural Rating
- 114
- O&M Index
- 2
- O&M Quick
- 412G
- O&M Rating
- 80
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 194
Observation photos (3)

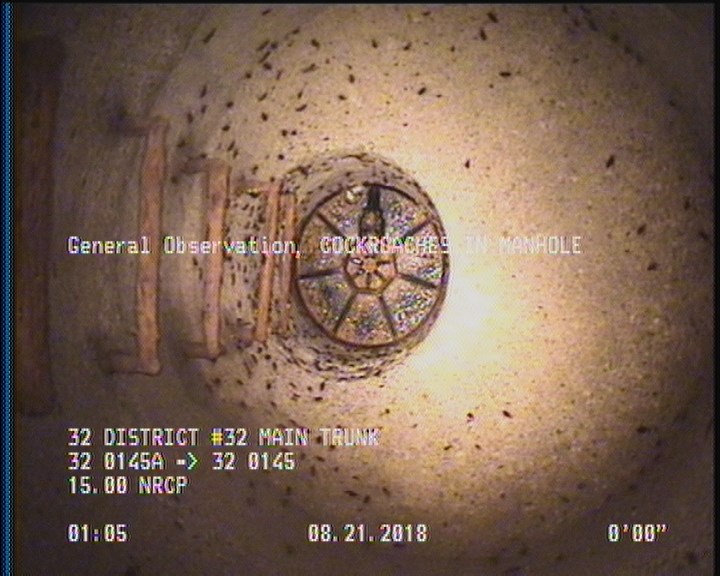

0 ft. - General Observation - COCKROACHES IN MANHOLE

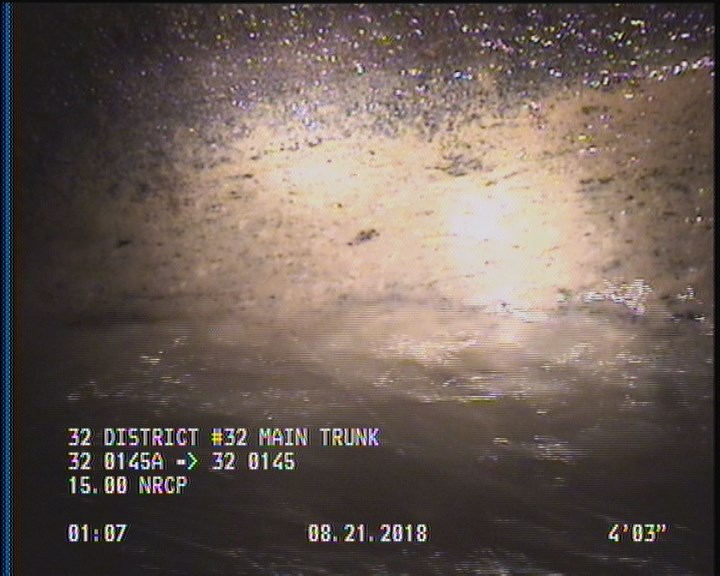

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

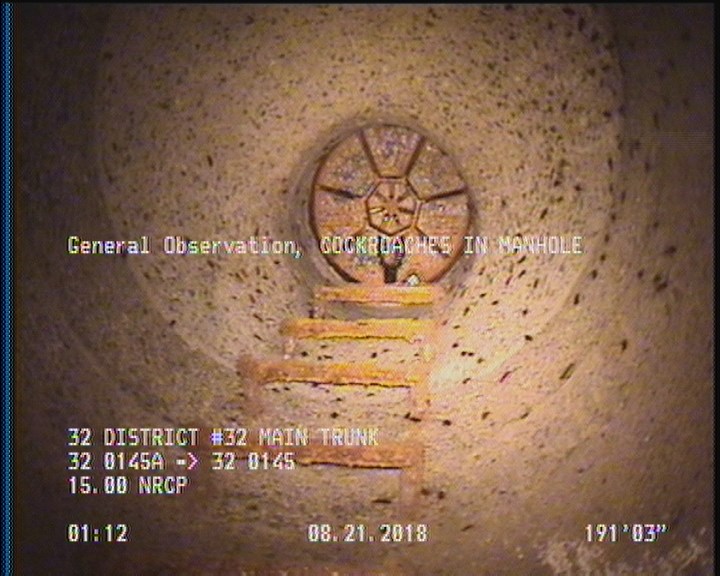

191.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 191.2 | SAP | — |
| 2 | SAP | — |
| 191.2 | DAGS | — |
| 191.3 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 191.3 | AMH | 32 0145 |
| 0 | AMH | 32 0145A |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 34.2 | MGO | MAG COATING THROUGHOUT 60% |
Properties (6)
- additional_info
- SC364777
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-21T00:56:34-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
