Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 21, 2018, 08:48 AM

  • 32 0143_32 0142 _21082018_020838.mp4

Date
08/21/2018
W/O
723911
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00887
PipeID
P19891
Time
1:48 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6007
Sewer Name
32 DISTRICT #32 MAIN TRUNK
City
SANTA CLARITA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
09
Purpose
Routine Assessment
Project
WO_723911_TV32048_SEP2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
32 0143
Downstream MH
32 0142
Dir. of Survey
Downstream
Length Surveyed
530.9 ft.
Total Length
530.9 ft.
Structural Index
3
Structural Quick
3T00
Structural Rating
315
O&M Index
2
O&M Quick
412T
O&M Rating
214
Overall Index
3
Overall Quick
—
Overall Rating
529
Pipe schematic from manhole 32 0143 to 32 0142
MH: 32 0143MH: 32 0142downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 01430 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start529.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish529.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish530.9 ft. AMH - Downstream Manhole, Survey Ends - 32 0142530.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

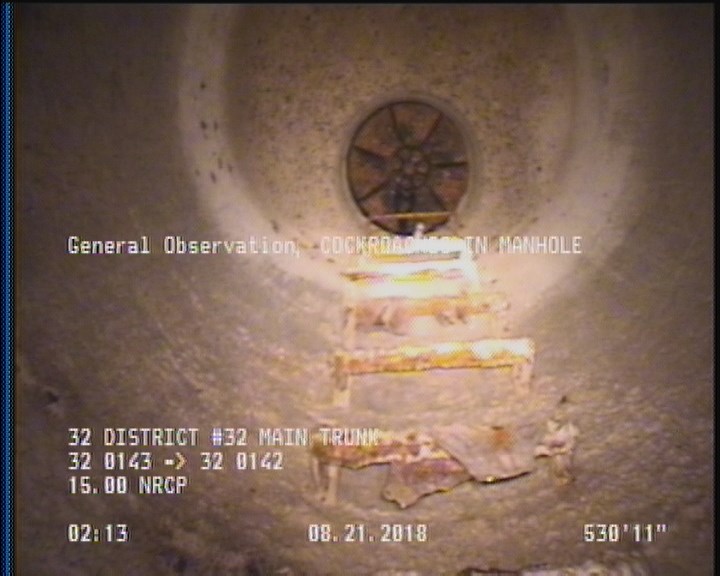

  • General Observation - COCKROACHES IN MANHOLE

    530.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P19891Work order 723911

Observations (11)

DistanceCodeObservation
2DAGS—
529.3SAP—
2SAP—
0MGOCOCKROACHES IN MANHOLE
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
529.3DAGS—
0AMH32 0143
530.9AMH32 0142
0MWM—
530.9MGOCOCKROACHES IN MANHOLE

Properties (6)

additional_info
SC364777
custom_field_two
2
customer
LACSD
datetime
2018-08-21T01:48:44-07:00
documentation
PRO PIPE
is_lateral_inspection
false
