Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 24, 2018, 06:14 AM

  • 32 0137_32 0136 _23082018_233056.mp4

Date
08/23/2018
W/O
723911
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00887
PipeID
P19884
Time
11:14 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6016
Sewer Name
32 DISTRICT #32 MAIN TRUNK
City
SANTA CLARITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
09
Purpose
Routine Assessment
Project
WO_723911_TV32048_SEP2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
32 0137
Downstream MH
32 0136
Dir. of Survey
Downstream
Length Surveyed
335.3 ft.
Total Length
335.3 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
198
O&M Index
2
O&M Quick
2L00
O&M Rating
132
Overall Index
3
Overall Quick
—
Overall Rating
330
Pipe schematic from manhole 32 0137 to 32 0136
MH: 32 0137MH: 32 0136downstream0 ft. AMH - Upstream Manhole, Survey Begins - 32 01370 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start333.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish333.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish335.3 ft. AMH - Downstream Manhole, Survey Ends - 32 0136335.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK335.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

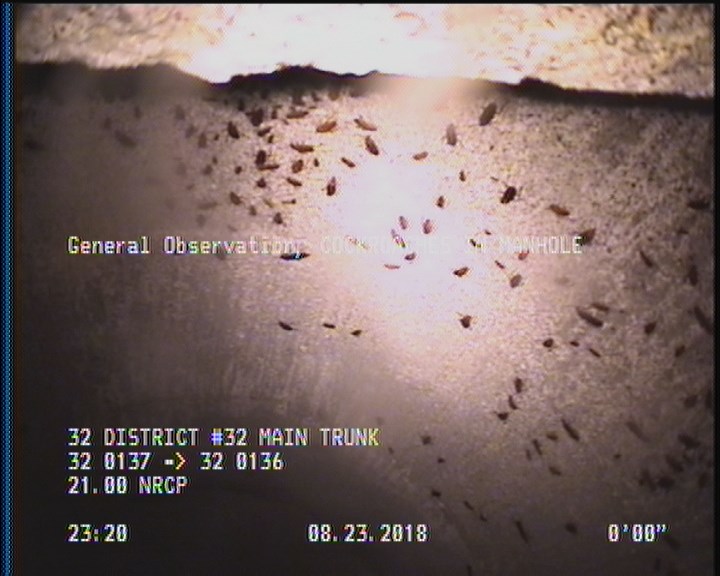

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

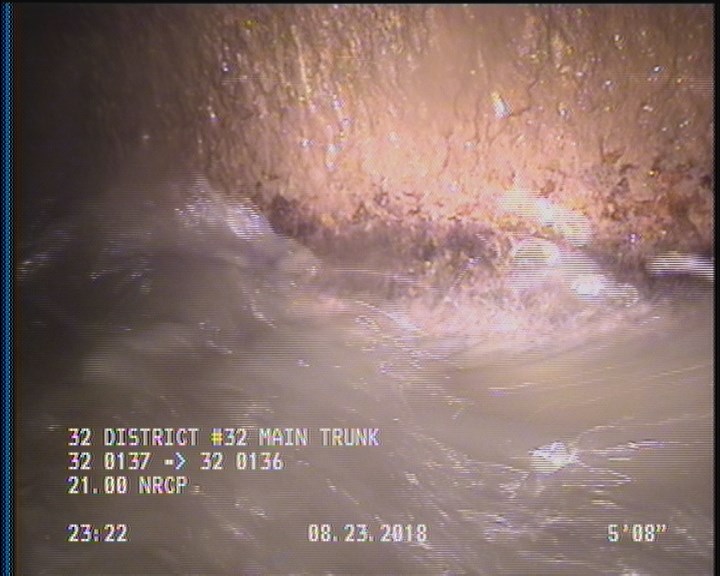

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

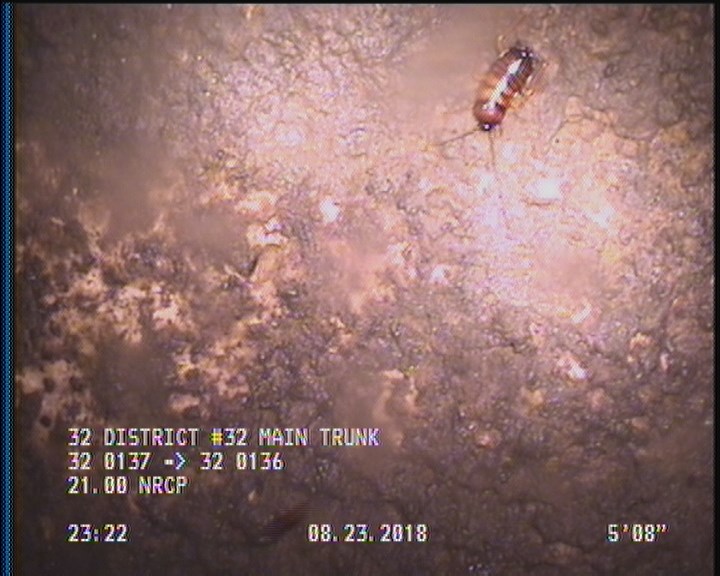

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

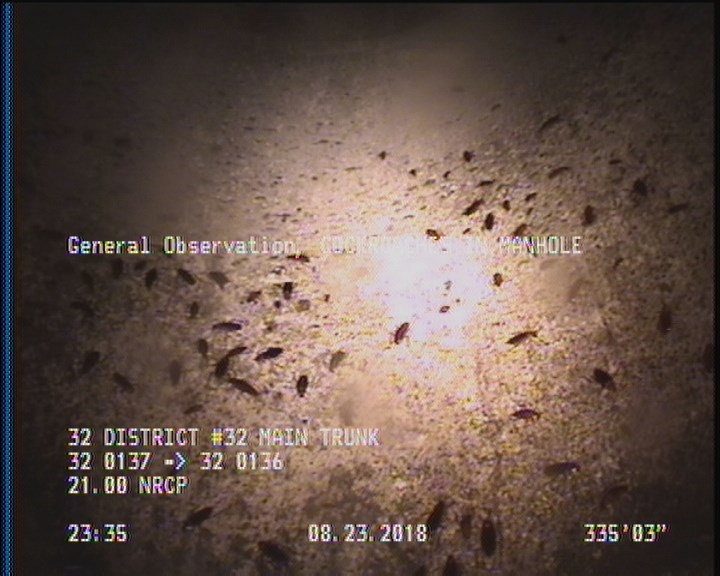

  • General Observation - COCKROACHES IN MANHOLE

    335.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P19884Work order 723911

Observations (11)

DistanceCodeObservation
0AMH32 0137
333.2SAP—
2DAGS—
335.3AMH32 0136
0MWM—
335.3MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
2SAP—
0MGOCOCKROACHES IN MANHOLE
333.2DAGS—
335.3MGOCOCKROACHES IN MANHOLE

Properties (6)

additional_info
SC364780
custom_field_two
2
customer
LACSD
datetime
2018-08-23T23:14:51-07:00
documentation
PRO PIPE
is_lateral_inspection
false
