Wastewater/Activity/PacpInspection/1.0Aug 22, 2018, 07:25 AM
32 0131_32 0130_22082018_005306.mp4
- Date
- 08/22/2018
- W/O
- 723911
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00887
- PipeID
- P19877
- Time
- 12:25 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6008
- Sewer Name
- 32 DISTRICT #32 MAIN TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_723911_TV32048_SEP2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 0131
- Downstream MH
- 32 0130
- Dir. of Survey
- Downstream
- Length Surveyed
- 475.5 ft.
- Total Length
- 475.5 ft.
- Structural Index
- 3
- Structural Quick
- 3R2R
- Structural Rating
- 470
- O&M Index
- 2
- O&M Quick
- 412R
- O&M Rating
- 192
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 662
Observation photos (4)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

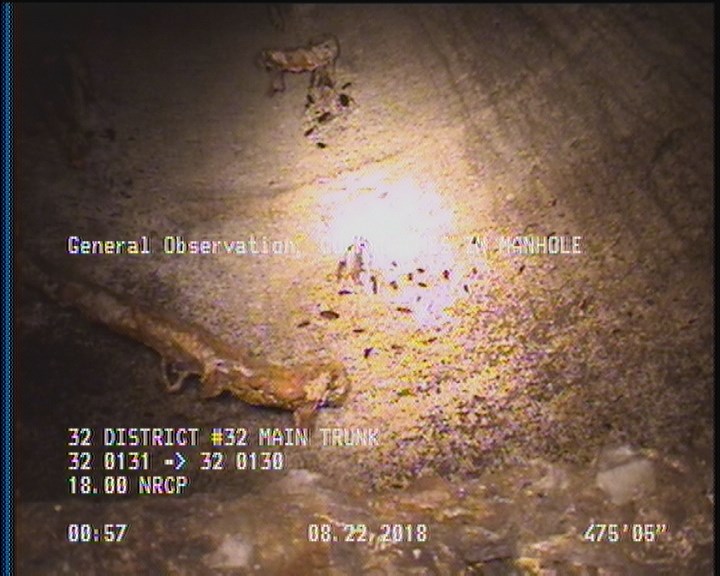

475.5 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 473.8 | SSS | — |
| 475.5 | MGO | COCKROACHES IN MANHOLE |
| 2 | SSS | — |
| 0 | AMH | 32 0131 |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SAP | — |
| 475.5 | AMH | 32 0130 |
| 473.8 | DAGS | — |
| 473.8 | SAP | — |
Properties (6)
- additional_info
- SC364778
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-22T00:25:47-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
