Wastewater/Activity/PacpInspection/1.0Aug 2, 2019, 06:58 PM
02 1550_02 1621_822019_120347.mp4
- Date
- 08/02/2019
- W/O
- 0785335
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00233
- PipeID
- P04061
- Time
- 11:58 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G8044
- Sewer Name
- 02 ARIZONA AVENUE RELIEF TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190802SHO_ARIZONA_AVENUE_RELIEF_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 02 1550
- Downstream MH
- 02 1621
- Dir. of Survey
- Downstream
- Length Surveyed
- 92 ft.
- Total Length
- 92 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

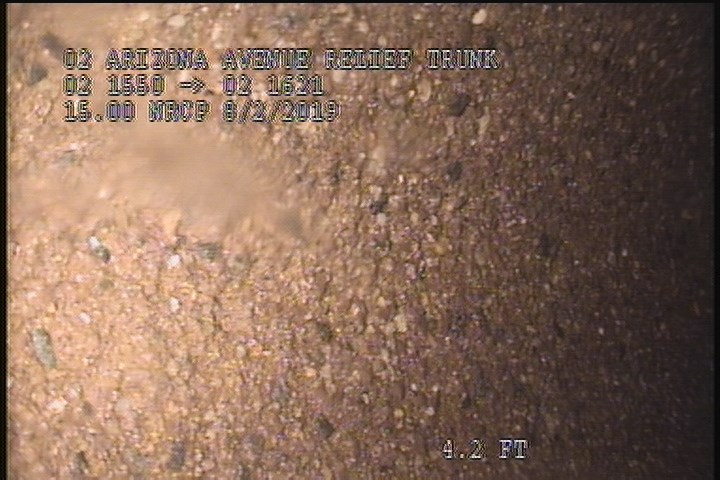

4.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

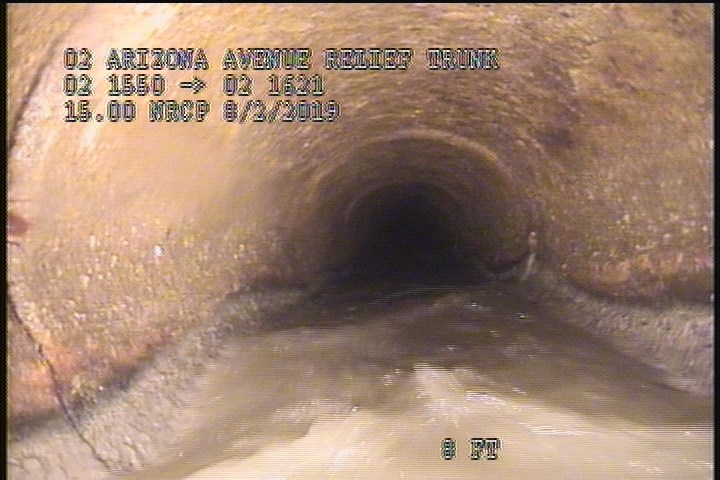

8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

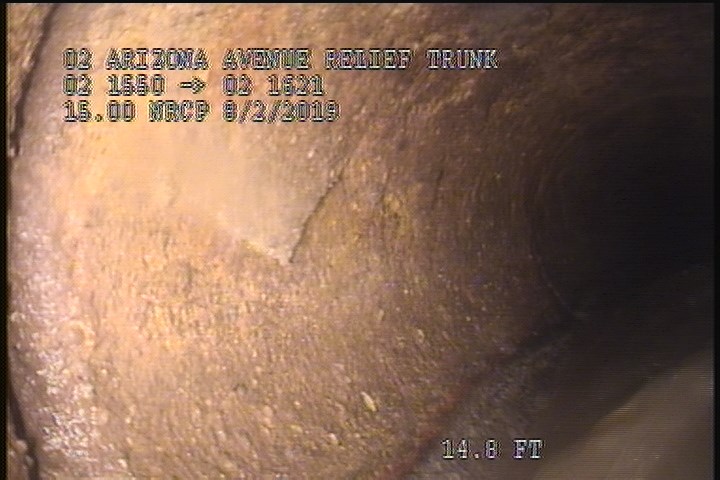

14.8 ft. - Surface Spalling, from 09 to 11 o'clock, within 8 inches of joint: YES, Start

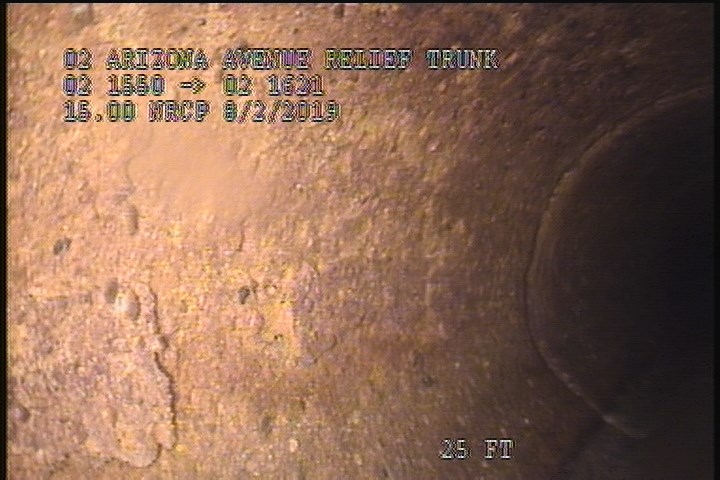

25 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 25 | SSS | — |
| 92 | AMH | MH 1621 |
| 8 | DAGS | — |
| 14.8 | SSS | — |
| 0 | AMH | MH 1550 |
| 25 | SSS | — |
| 0 | MGO | ONE ACTIVE CONNECTION IN THE MH @ 9 |
| 91 | SSS | — |
| 91 | DAGS | — |
| 91 | SAV | — |
| 4.2 | SAV | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (7)
- additional_info
- RFIR
- custom_field_three
- EXPOSED AGGREGATE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-08-02T11:58:56-07:00
- documentation
- OBREGON, IGNACIO, CASTILLO
- is_lateral_inspection
- false
