Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 5, 2019, 11:37 AM

  • Section#5_02 2077_02 2076__852019__I0205.mp4

Date
08/05/2019
W/O
0785336
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00241
PipeID
P04285
Time
4:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0205
Sewer Name
02 CITY TERRACE TRUNK
City
LOS ANGLES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
07A
Purpose
Routine Assessment
Project
20190802MDM_CITY_TERRACE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 2077
Downstream MH
02 2076
Dir. of Survey
Downstream
Length Surveyed
471.7 ft.
Total Length
471.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 02 2077 to 02 2076
MH: 02 2077MH: 02 2076downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:45AM2 ft. MGO - General Observation - 100% MAG COAT START8.9 ft. MGO - General Observation - CONCRETE GOOD COND UNDER MAG COAT180.3 ft. MGO - General Observation - CONCRETE GOOD CONDIYION UNDER MAG COAT237.4 ft. MGO - General Observation - 100% MAG COAT288.6 ft. MGO - General Observation - CONCRETE GOOD CONDITION471.2 ft. MGO - General Observation - 100% MAG COAT FINISH471.7 ft. AMH - Downstream Manhole, Survey Ends - 5:15AM

Observation photos (5)

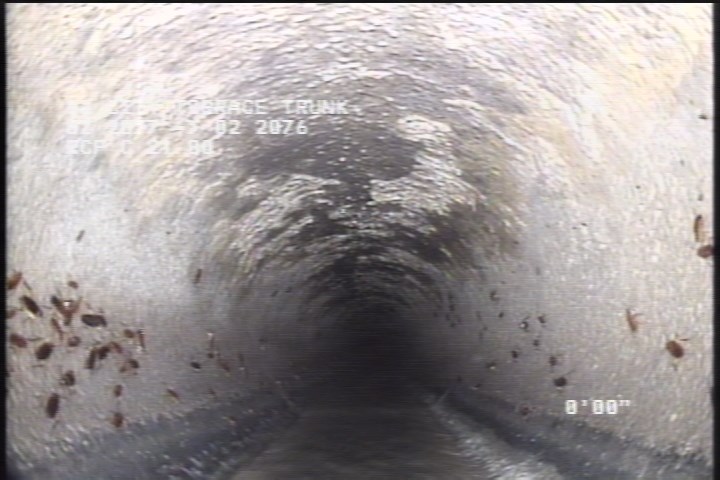

  • General Observation - 100% MAG COAT START

    2 ft. - General Observation - 100% MAG COAT START

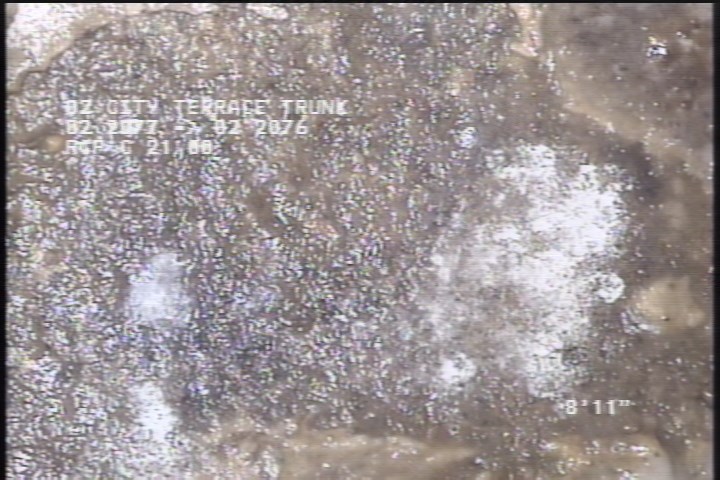

  • General Observation - CONCRETE GOOD COND UNDER MAG COAT

    8.9 ft. - General Observation - CONCRETE GOOD COND UNDER MAG COAT

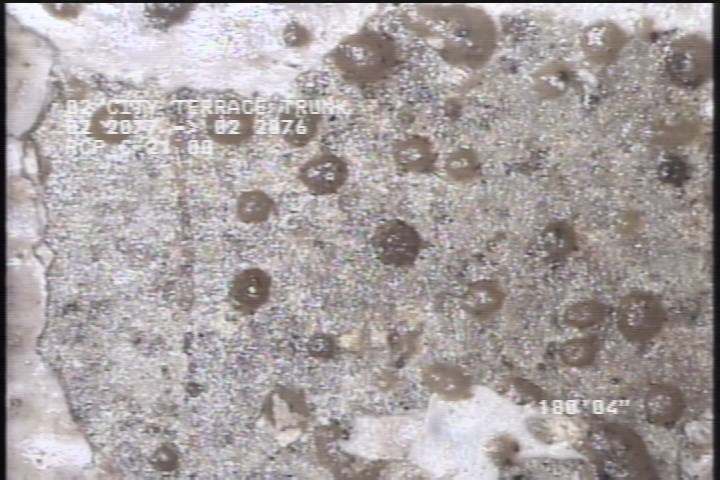

  • General Observation - CONCRETE GOOD CONDIYION UNDER MAG COAT

    180.3 ft. - General Observation - CONCRETE GOOD CONDIYION UNDER MAG COAT

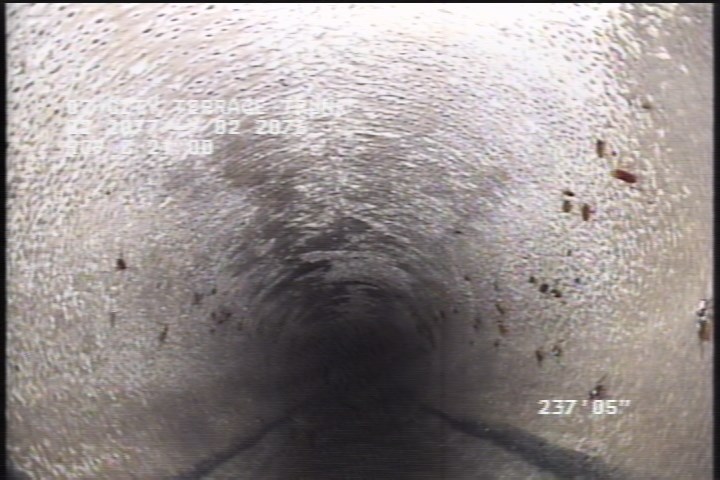

  • General Observation - 100% MAG COAT

    237.4 ft. - General Observation - 100% MAG COAT

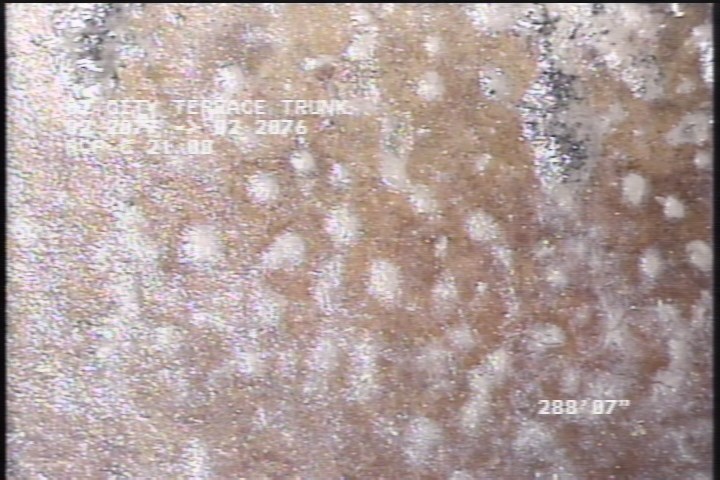

  • General Observation - CONCRETE GOOD CONDITION

    288.6 ft. - General Observation - CONCRETE GOOD CONDITION

All inspections of P04285Work order 0785336

Observations (10)

DistanceCodeObservation
180.3MGOCONCRETE GOOD CONDIYION UNDER MAG COAT
8.9MGOCONCRETE GOOD COND UNDER MAG COAT
471.7AMH5:15AM
288.6MGOCONCRETE GOOD CONDITION
0MWM—
2MGO100% MAG COAT START
0MWL—
237.4MGO100% MAG COAT
0AMH4:45AM
471.2MGO100% MAG COAT FINISH

Properties (6)

custom_field_three
GOOD CONDITION CONCRETE UNDER MAG COAT
custom_field_two
4
customer
LACSD
datetime
2019-08-05T04:37:05-07:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
