Wastewater/Activity/PacpInspection/1.0Aug 5, 2019, 09:46 AM
Section#4_02 2078_02 2077__852019__I0205.mp4
- Date
- 08/05/2019
- W/O
- 0785336
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00241
- PipeID
- P04286
- Time
- 2:46 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0205
- Sewer Name
- 02 CITY TERRACE TRUNK
- City
- LOS ANGLES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 07A
- Purpose
- Routine Assessment
- Project
- 20190802MDM_CITY_TERRACE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 02 2077
- Downstream MH
- 02 2078
- Dir. of Survey
- Upstream
- Length Surveyed
- 469 ft.
- Total Length
- 469 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2500
- O&M Rating
- 10
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (7)

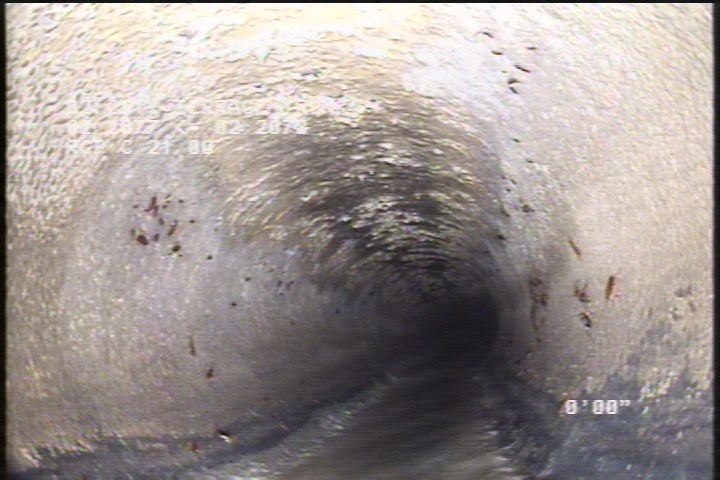

2 ft. - General Observation - 100% MAG COAT START

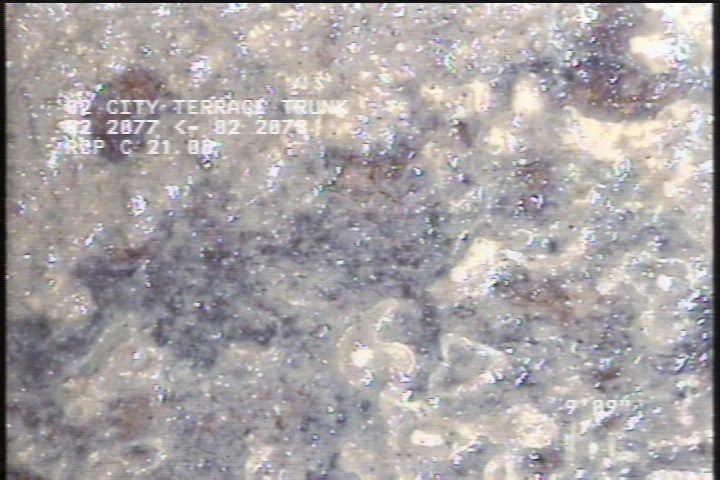

9.8 ft. - Surface Spalling, from 02 to 03 o'clock, within 8 inches of joint: NO - SLIGHT FLAKING CONCRETE UNDER MAG COAT

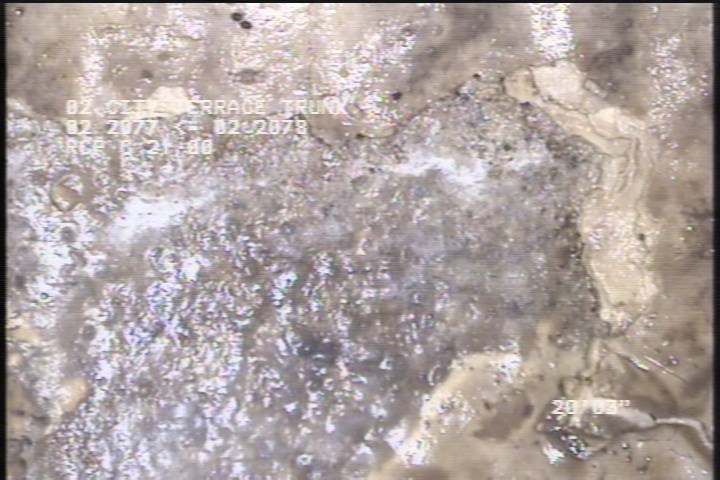

20.2 ft. - General Observation - ROUGH TEXTURED CONCRETE UNDER MAG COAT

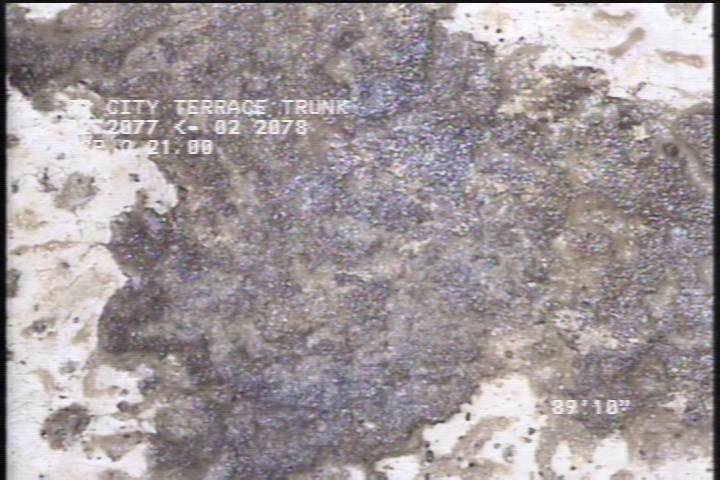

89.8 ft. - Surface Spalling, from 02 to 03 o'clock, within 8 inches of joint: NO - ROUGH TEXTURED CONCRETE UNDER MAG COAT

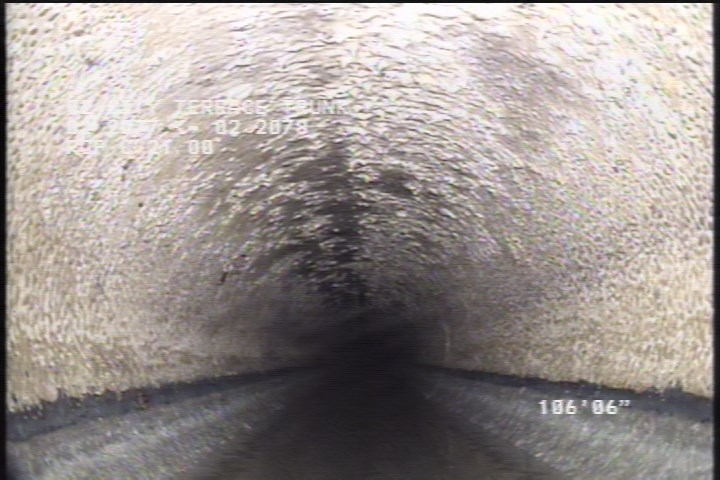

106.5 ft. - General Observation - 100% MAG COAT

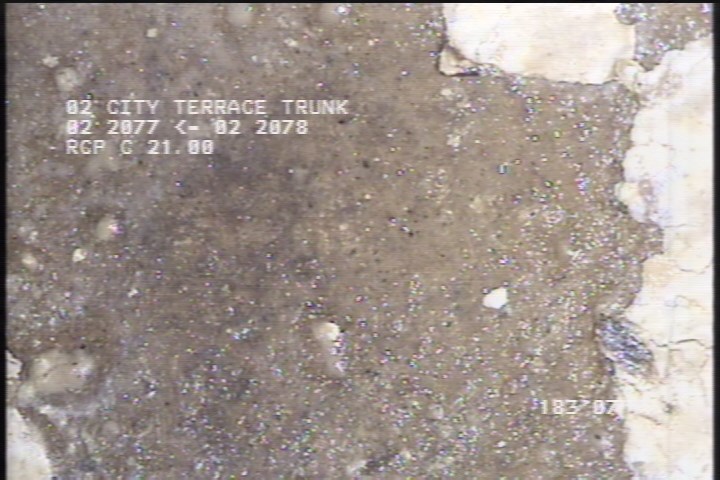

183.6 ft. - General Observation - CONCRETE GOOD CONDITION UNDER MAG COAT

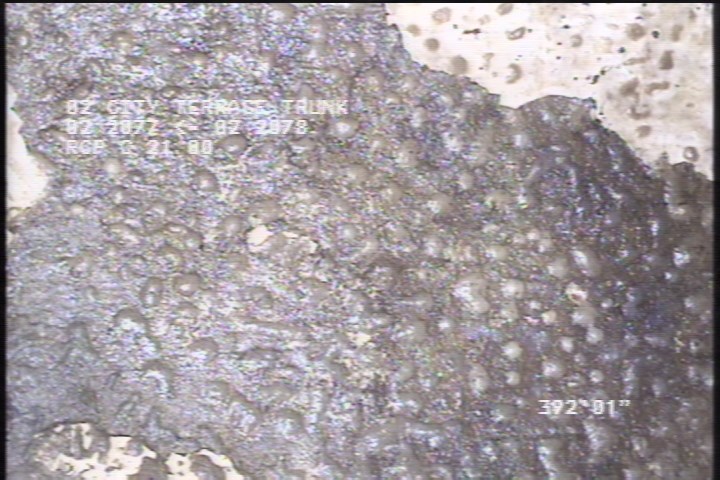

392.1 ft. - General Observation - ROUGH TEXTURED CONCRETE
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 89.8 | SSS | ROUGH TEXTURED CONCRETE UNDER MAG COAT |
| 2 | MGO | 100% MAG COAT START |
| 175.2 | MGO | 98% MAG COAT START |
| 20.2 | MGO | ROUGH TEXTURED CONCRETE UNDER MAG COAT |
| 134.4 | MGO | CONCRETE UNDER MAG COAT GOOD CONDITION |
| 0 | AMH | 3:45AM |
| 392.1 | MGO | ROUGH TEXTURED CONCRETE |
| 384.2 | DSGV | — |
| 469 | AMH | 4:35AM |
| 0 | MWL | — |
| 183.6 | MGO | CONCRETE GOOD CONDITION UNDER MAG COAT |
| 0 | MWM | — |
| 106.5 | MGO | 100% MAG COAT |
| 409.6 | DSGV | — |
| 468.2 | MGO | 98% MAG COAT FINISH |
| 9.8 | SSS | SLIGHT FLAKING CONCRETE UNDER MAG COAT |
Properties (7)
- additional_info
- REVERSE INSPECTION
- custom_field_three
- GOOD CONDITION CONCRETE UNDER MAG COAT
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-08-05T02:46:14-07:00
- documentation
- MARTIN,REVELES,OLIVER 111,BRAR
- is_lateral_inspection
- false
