Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 1, 2019, 07:19 AM

  • Section#1_02 0097_02 0096__812019__I0200.mp4

Date
08/01/2019
W/O
0784800
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00237
PipeID
P02263
Time
12:19 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0200
Sewer Name
02 BELLFLOWER TRUNK
City
BELLFLOWER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
38
Purpose
Maintenance Related
Project
20190801MDM_BELLFLOWER_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 0097
Downstream MH
02 0096
Dir. of Survey
Downstream
Length Surveyed
361.2 ft.
Total Length
361.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 02 0097 to 02 0096
MH: 02 0097MH: 02 0096downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM348.8 ft. MGO - General Observation - 18" VCP360.9 ft. MWL - Water Level, 5 %of cross sectional area - DOWNSTREAM MH 96361.2 ft. AMH - Downstream Manhole, Survey Ends - 1:10AM

Observation photos (2)

  • General Observation - 18" VCP

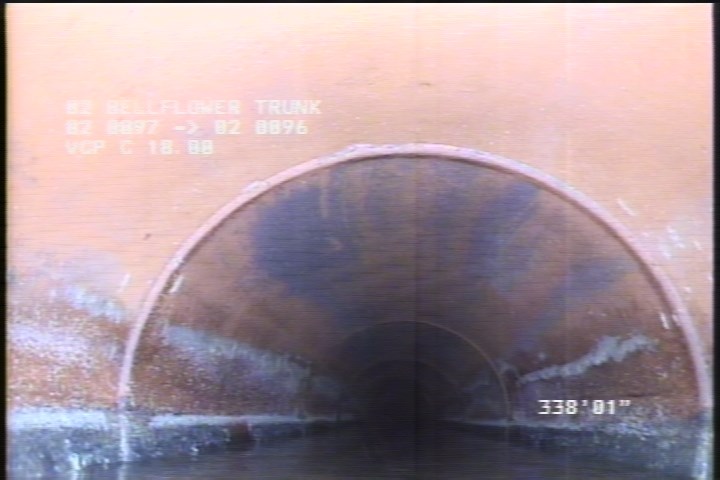

    348.8 ft. - General Observation - 18" VCP

  • Water Level, 5 %of cross sectional area - DOWNSTREAM MH 96

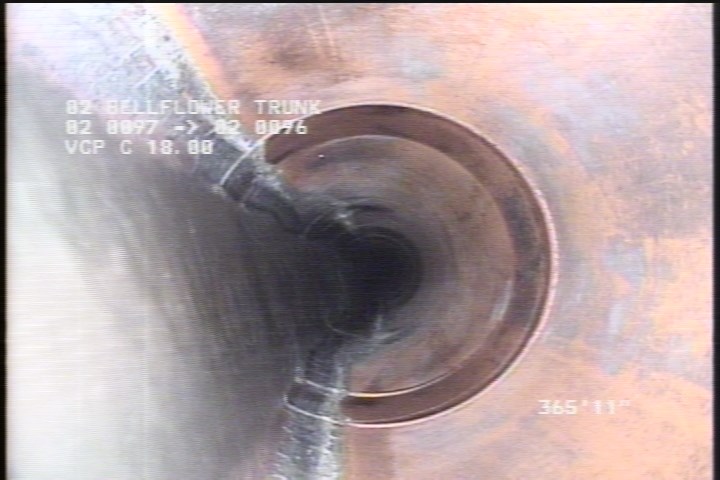

    360.9 ft. - Water Level, 5 %of cross sectional area - DOWNSTREAM MH 96

All inspections of P02263Work order 0784800

Observations (6)

DistanceCodeObservation
348.8MGO18" VCP
0MWL—
361.2AMH1:10AM
0MWM—
360.9MWLDOWNSTREAM MH 96
0AMH12:35AM

Properties (5)

additional_info
SINKHOLE
customer
LACSD
datetime
2019-08-01T00:19:44-07:00
documentation
MARTIN,OLIVER 111,SHADLER
is_lateral_inspection
false
