Wastewater/Activity/PacpInspection/1.0Jul 31, 2019, 10:30 AM
Section#2_15 0851_15 0850__7312019__I0199R.mp4
- Date
- 07/31/2019
- W/O
- 0782576
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00594
- PipeID
- P12629
- Time
- 3:30 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0199R
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTS 3&2A
- City
- SIERRA MADRE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 01
- Purpose
- Maintenance Related
- Project
- 20190731MDM_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_3_2A
- Material
- NRCP
- Shape
- Circular
- Height
- 8.399999618530273 in.
- Upstream MH
- 15 0851
- Downstream MH
- 15 0850
- Dir. of Survey
- Downstream
- Length Surveyed
- 86.6 ft.
- Total Length
- 86.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4231
- O&M Rating
- 11
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (2)

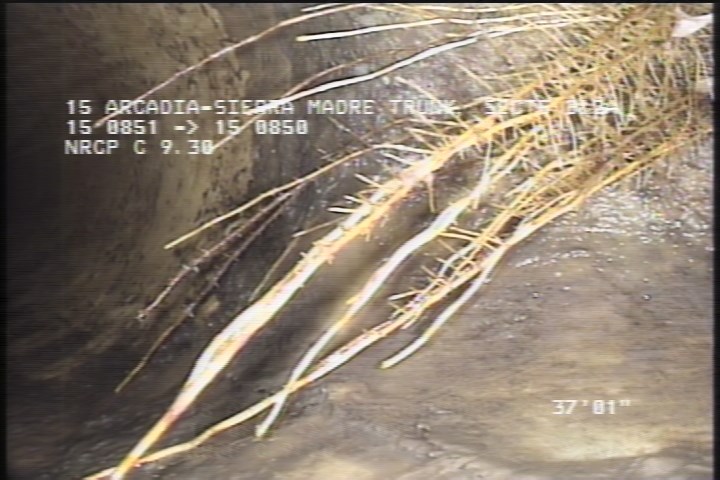

37.1 ft. - Roots Medium Barrell, from 02 to 04 o'clock, 5 %, within 8 inches of joint: NO

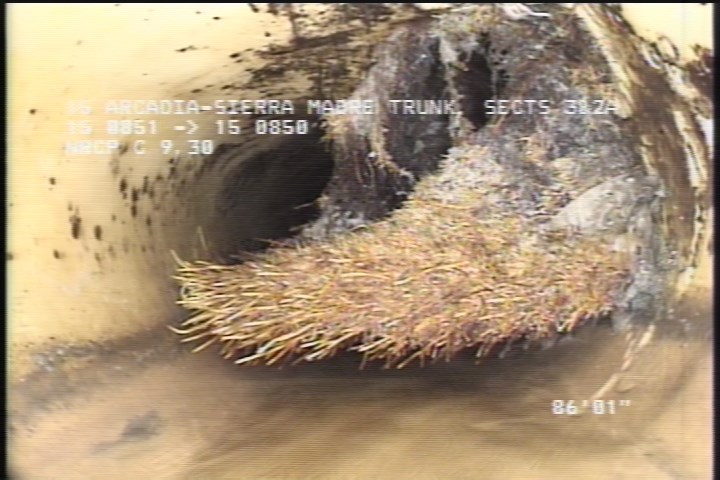

86.1 ft. - Roots Ball Lateral, from 12 to 08 o'clock, 60 %, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | MH CONN 9:00 ACTIVE |
| 37.1 | RMB | — |
| 86.1 | RBL | — |
| 37.7 | TB | ACTIVE |
| 0 | MWM | — |
| 86.1 | TBD | OPEN 90% ROOTS |
| 0 | MWL | — |
| 0 | MGO | MH CONN 3:00 ACTIVE |
| 86.6 | MSA | 60% ROOTS |
| 0 | AMH | 4:20AM |
Properties (6)
- additional_info
- POST CLEANING EVALUATION ONLY
- customer
- LACSD
- datetime
- 2019-07-31T03:30:41-07:00
- documentation
- MARTIN,OLIVER 111,SHADLER
- is_lateral_inspection
- false
- lining
- PVCP
