Wastewater/Activity/PacpInspection/1.0Jul 30, 2019, 12:09 PM
Section#5_16 0277_16 0267__7302019__I0197R.mp4
- Date
- 07/30/2019
- W/O
- #
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00654
- PipeID
- P13325
- Time
- 5:09 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0197R
- Sewer Name
- 16 CHAPEL AVENUE TRUNK, SECTION 3
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Maintenance Related
- Project
- 20190730MDM_CHAPEL_AVENUE_TRUNK_SECTION_3
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 16 0277
- Downstream MH
- 16 0267
- Dir. of Survey
- Downstream
- Length Surveyed
- 338.8 ft.
- Total Length
- 338.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3514
- O&M Rating
- 19
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 19
Observation photos (4)

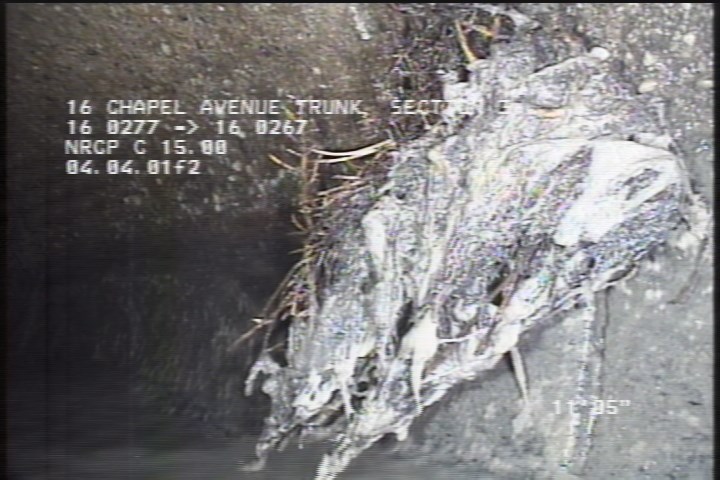

11.4 ft. - Roots Medium Joint, from 02 to 05 o'clock, 10 %, within 8 inches of joint: YESR

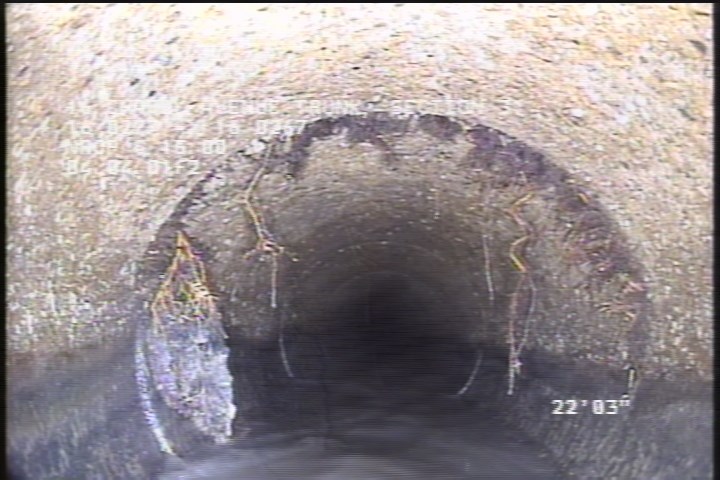

17.9 ft. - Roots Medium Joint, from 08 to 04 o'clock, 15 %, within 8 inches of joint: YESR

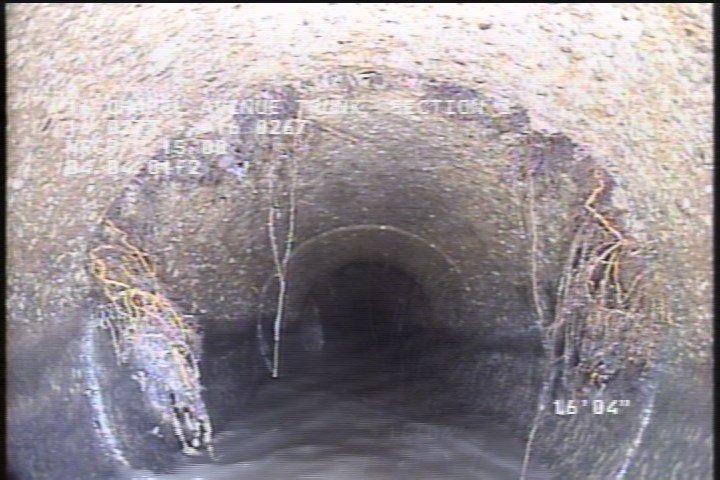

24 ft. - Roots Medium Joint, from 08 to 04 o'clock, 15 %, within 8 inches of joint: YESR

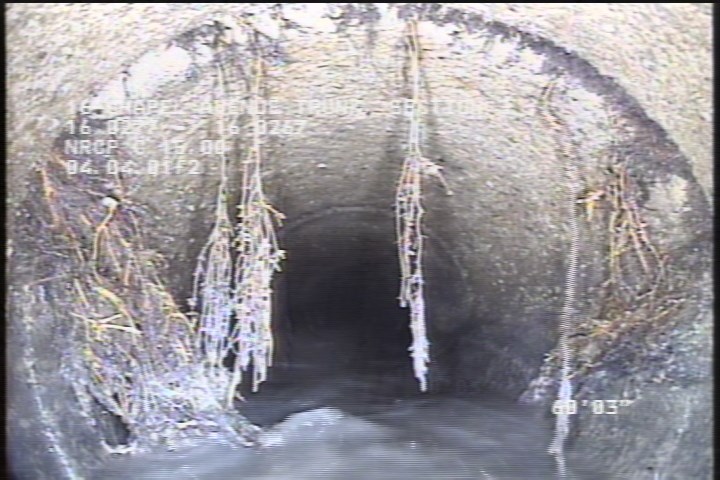

61.9 ft. - Roots Medium Joint, from 08 to 04 o'clock, 20 %, within 8 inches of joint: YESR
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 40.1 | RMJ | — |
| 338.8 | AMH | 5:35AM |
| 5.1 | RFJ | 4% |
| 11.4 | RMJ | — |
| 17.9 | RMJ | — |
| 0 | MWM | — |
| 86.8 | RFJ | 4% |
| 183.3 | RFJ | 4% |
| 24 | RMJ | — |
| 0 | MWL | — |
| 0 | AMH | 5:15AM |
| 146.1 | RFJ | 4% |
| 61.9 | RMJ | — |
| 57.8 | TF | OPEN |
Properties (5)
- additional_info
- POST ROOT EVALUATION ONLY
- customer
- LACSD
- datetime
- 2019-07-30T05:09:31-07:00
- documentation
- MARTIN,OLIVER 111,SHADLER
- is_lateral_inspection
- false
