Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 30, 2019, 06:05 AM

  • 9_1_1_29052019_232039.mp4

Date
05/29/2019
W/O
766493
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00228
PipeID
P01801
Time
11:05 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6555
Sewer Name
01 WRIGHT ROAD TRUNK
City
BELL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
05
Purpose
Routine Assessment
Project
WO_766493_TV01251_MAY2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 0964
Downstream MH
01 0963
Dir. of Survey
Downstream
Length Surveyed
329 ft.
Total Length
329 ft.
Structural Index
3
Structural Quick
3G25
Structural Rating
136
O&M Index
2
O&M Quick
2V00
O&M Rating
234
Overall Index
2
Overall Quick
—
Overall Rating
370
Pipe schematic from manhole 01 0964 to 01 0963
MH: 01 0964MH: 01 0963downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 09640 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area5.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.5 ft. FS - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start60.2 ft. DSC - Deposits Settled Compacted, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start82 ft. FS - Fracture spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish127.7 ft. FS - Fracture longitudal, from 11 to 01 o'clock, within 8 inches of joint: YES, Start182.2 ft. MGO - General Observation - CAMERA UNSTABLE DUE TO DEBRIS264 ft. CS - Crack longitudal, from 11 to 01 o'clock, within 8 inches of joint: YES, Start264 ft. FS - Fracture longitudall, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish287.7 ft. CS - Crack longitudal, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish326.9 ft. DSC - Deposits Settled Compacted, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish326.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish329 ft. AMH - Downstream Manhole, Survey Ends - 01 0963

Observation photos (3)

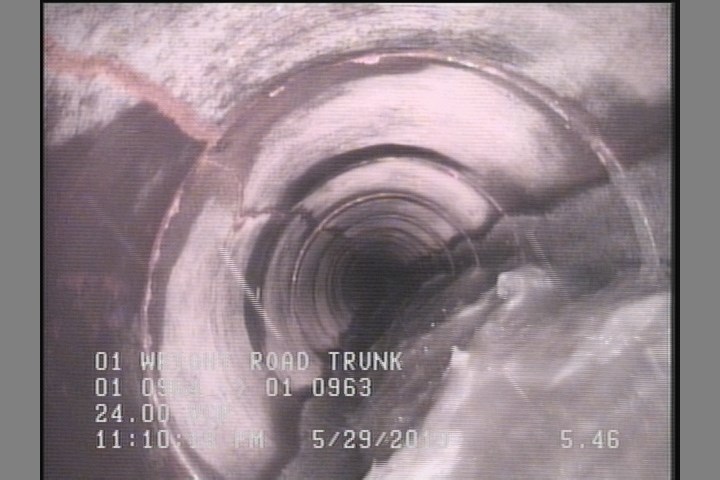

  • Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    5.5 ft. - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

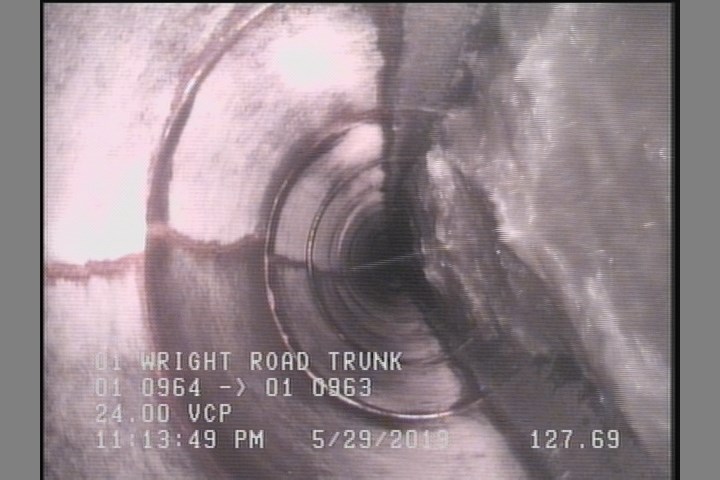

  • Fracture longitudal, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    127.7 ft. - Fracture longitudal, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

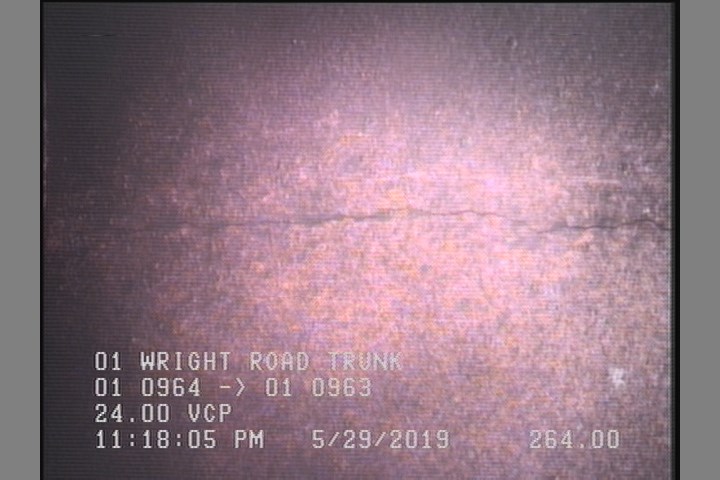

  • Crack longitudal, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    264 ft. - Crack longitudal, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

All inspections of P01801Work order 766493

Observations (15)

DistanceCodeObservation
127.7FS—
0AMH01 0964
0MWM—
287.7CS—
5.5DAGS—
82FS—
264CS—
326.9DSC—
0MWL—
264FS—
182.2MGOCAMERA UNSTABLE DUE TO DEBRIS
5.5FS—
329AMH01 0963
60.2DSC—
326.9DAGS—

Properties (7)

additional_info
SC377677
custom_field_two
2
customer
LACSD
datetime
2019-05-29T23:05:19-07:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
10286
