Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 21, 2019, 05:59 AM

  • 1_1_1_20062019_231733.mp4

Date
06/20/2019
W/O
766493
Weather
Dry
Operator/Surveyor
J. VARGAS
Sewer ID
Z00228
PipeID
P01783
Time
10:59 PM
Certificate
U-2509-8149
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5590
Sewer Name
01 WRIGHT ROAD TRUNK
City
CUDAHY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
WO_766493_TV01251_MAY2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 0946
Downstream MH
01 0945
Dir. of Survey
Downstream
Length Surveyed
294.1 ft.
Total Length
294.1 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
168
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
171
Pipe schematic from manhole 01 0946 to 01 0945
MH: 01 0946MH: 01 0945downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 09460 ft. MGO - General Observation - CONNECTIONS AT BOTH 3 AND 9 O' CLOCK AT MH0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. VC - Vermin Cockroach4.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start9.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start291.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish291.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish291.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish294.1 ft. AMH - Downstream Manhole, Survey Ends - 01 0945

Observation photos (2)

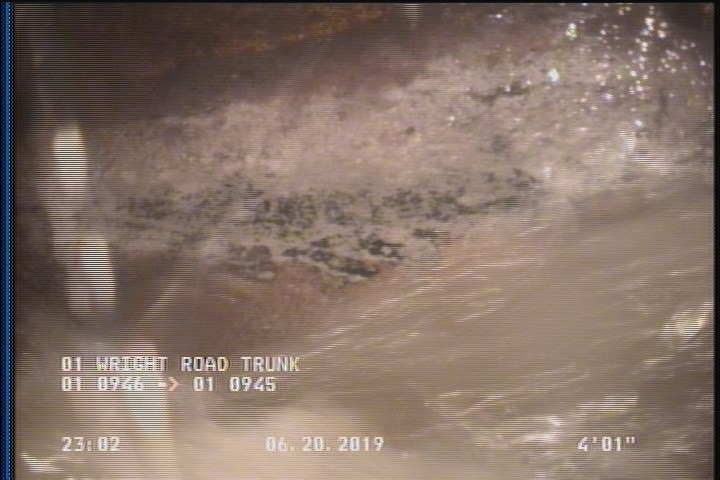

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    4.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

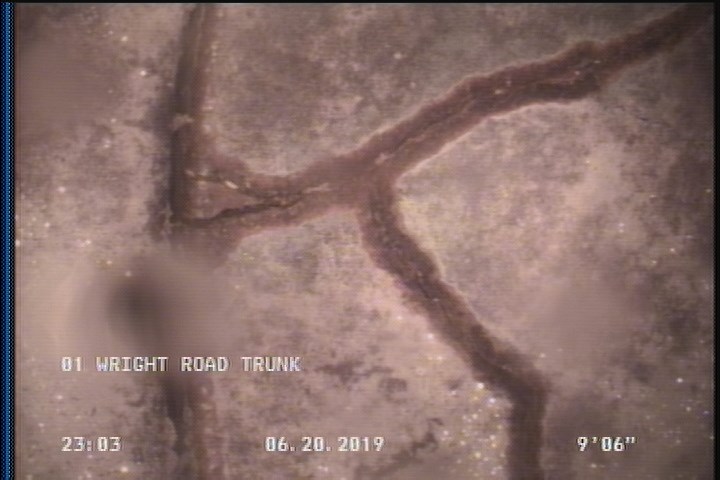

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    9.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01783Work order 766493

Observations (11)

DistanceCodeObservation
9.5CM—
294.1AMH01 0945
291.1DAGS—
0MWM—
0AMH01 0946
291.1DAE—
0MGOCONNECTIONS AT BOTH 3 AND 9 O' CLOCK AT MH
0MWL—
291.1CM—
4.1DAGS—
0VC—

Properties (7)

additional_info
SC377543
custom_field_two
3
customer
LACSD
datetime
2019-06-20T22:59:41-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
10286
