Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 30, 2019, 08:35 AM

  • 8_1_1_30052019_014616.mp4

Date
05/30/2019
W/O
766493
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00228
PipeID
P01796
Time
1:35 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6555
Sewer Name
01 WRIGHT ROAD TRUNK
City
BELL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
WO_766493_TV01251_MAY2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 0959
Downstream MH
01 0958
Dir. of Survey
Downstream
Length Surveyed
301.6 ft.
Total Length
301.6 ft.
Structural Index
3
Structural Quick
4631
Structural Rating
53
O&M Index
2
O&M Quick
2K00
O&M Rating
118
Overall Index
2
Overall Quick
—
Overall Rating
171
Pipe schematic from manhole 01 0959 to 01 0958
MH: 01 0959MH: 01 0958downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 09590 ft. MWM - Water Mark, 40 %of cross sectional area5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES, Start148.4 ft. CM - Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES149.3 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start185.3 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish227.3 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start256.6 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish256.6 ft. FM - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Start287.7 ft. FM - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish298.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES, Finish301.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0958

Observation photos (5)

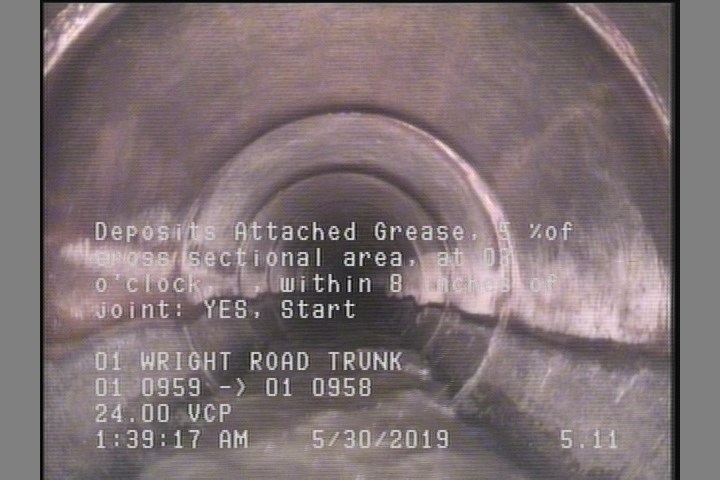

  • Deposits Attached Grease, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES, Start

    5 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES, Start

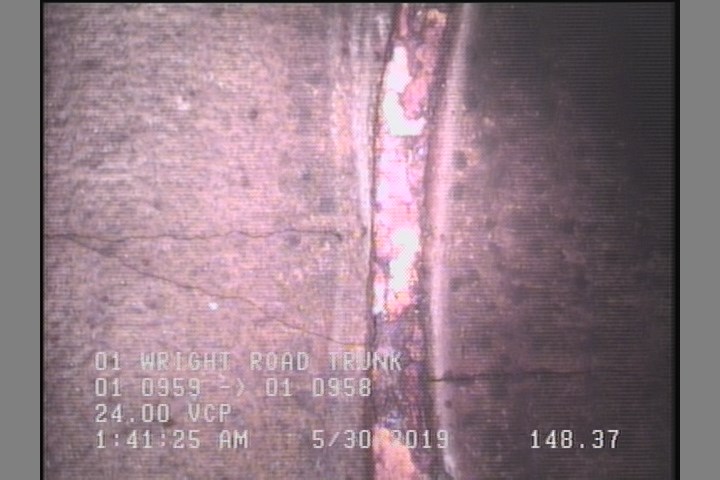

  • Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES

    148.4 ft. - Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES

  • Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    149.3 ft. - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

  • Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    227.3 ft. - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

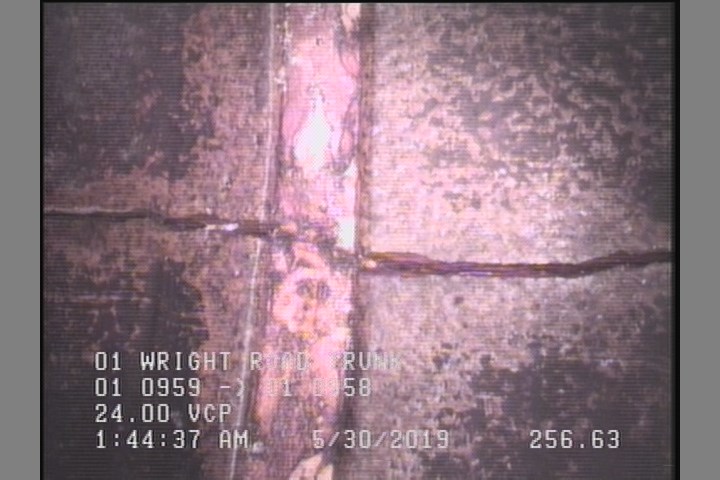

  • Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    256.6 ft. - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

All inspections of P01796Work order 766493

Observations (13)

DistanceCodeObservation
0MWL—
256.6CS—
0AMH01 0959
0MWM—
301.6AMH01 0958
148.4CM—
298.8DAGS—
185.3CS—
287.7FM—
5DAGS—
256.6FM—
227.3CS—
149.3CS—

Properties (7)

additional_info
SC377677
custom_field_two
3
customer
LACSD
datetime
2019-05-30T01:35:44-07:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
10286
