Wastewater/Activity/PacpInspection/1.0Jun 20, 2019, 04:50 AM
8_1_1_19062019_222029.mp4
- Date
- 06/19/2019
- W/O
- 766407
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00349
- PipeID
- P02969
- Time
- 9:50 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6571
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- BELL GARDENS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_766407_TV02220_MAY2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- 02 1398
- Downstream MH
- 02 1397
- Dir. of Survey
- Downstream
- Length Surveyed
- 442.1 ft.
- Total Length
- 442.1 ft.
- Structural Index
- 4
- Structural Quick
- 5O3L
- Structural Rating
- 611
- O&M Index
- 1
- O&M Quick
- 1A00
- O&M Rating
- 12
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 623
Observation photos (3)
34.6 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

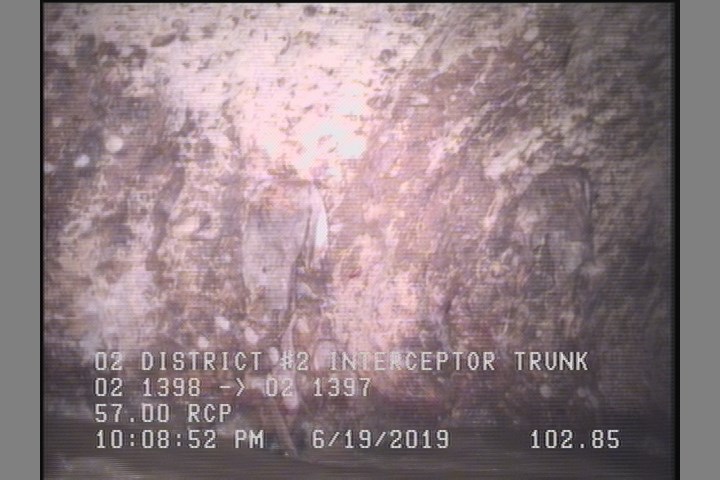

102.9 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
109.8 ft. - Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: NO
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | MAG COAT THROUGHOUT PIPE |
| 0 | MWM | — |
| 0 | MWL | — |
| 442.1 | AMH | 02 1397 |
| 109.8 | SRC | — |
| 147.6 | MGO | CLEARED SCREEN TO VIEW FULL PIPE |
| 440 | SRV | — |
| 34.6 | SRV | — |
| 44.6 | LR | — |
| 442.1 | MGO | CONNECTION IN MH 3 OCLOCK |
| 102.9 | LR | — |
| 440 | SAP | — |
| 0 | AMH | 02 1398 |
| 102.9 | SAP | — |
Properties (6)
- additional_info
- SC377696
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-06-19T21:50:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
