Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 20, 2019, 09:31 AM

  • 4_1_1_20062019_025657.mp4

Date
06/20/2019
W/O
766407
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00349
PipeID
P02965
Time
2:31 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6571
Sewer Name
02 DISTRICT #2 INTERCEPTOR TRUNK
City
BELL GARDENS
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
23
Purpose
Routine Assessment
Project
WO_766407_TV02220_MAY2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Width
54 in.
Upstream MH
02 1394
Downstream MH
02 1393
Dir. of Survey
Downstream
Length Surveyed
654.2 ft.
Total Length
654.2 ft.
Structural Index
4
Structural Quick
5Y3Y
Structural Rating
1024
O&M Index
2
O&M Quick
2Y14
O&M Rating
260
Overall Index
3
Overall Quick
—
Overall Rating
1284
Pipe schematic from manhole 02 1394 to 02 1393
MH: 02 1394MH: 02 1393downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 13940 ft. MWM - Water Mark, 40 %of cross sectional area10.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start10.5 ft. MGO - General Observation - MAG COAT THROUGHOUT PIPE10.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start12.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start13 ft. LL - Alignment Left, 5 %, Start28.7 ft. LL - Alignment Left, 5 %, Finish631.6 ft. LL - Alignment Left, 10 %652.7 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish652.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish652.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish654.2 ft. AMH - Downstream Manhole, Survey Ends - 02 1393

Observation photos (2)

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

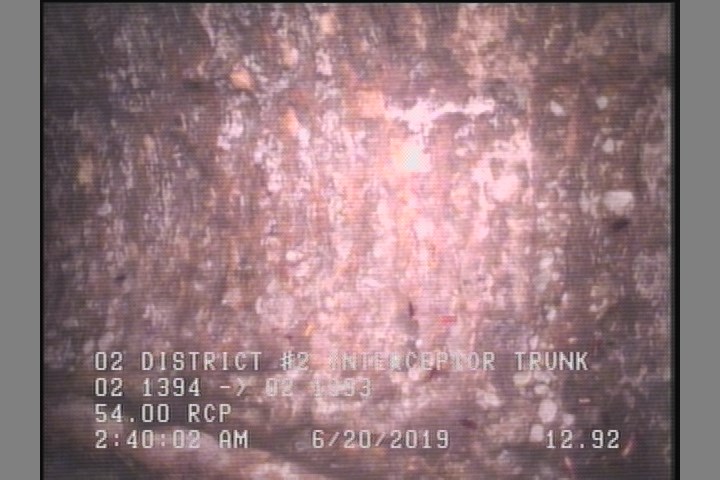

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    12.9 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P02965Work order 766407

Observations (14)

DistanceCodeObservation
13LL—
12.9SRV—
10.5DAGS—
652.7SRV—
10.5MGOMAG COAT THROUGHOUT PIPE
0MWL—
654.2AMH02 1393
652.7SAP—
0AMH02 1394
28.7LL—
652.7DAGS—
10.5SAP—
631.6LL—
0MWM—

Properties (6)

additional_info
SC377696
custom_field_two
2
customer
LACSD
datetime
2019-06-20T02:31:56-07:00
documentation
PROPIPE
is_lateral_inspection
false
