Wastewater/Activity/PacpInspection/1.0Jun 20, 2019, 07:54 AM
5_1_1_20062019_015224.mp4
- Date
- 06/20/2019
- W/O
- 766407
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00349
- PipeID
- P02966
- Time
- 12:54 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6571
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- BELL GARDENS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_766407_TV02220_MAY2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- 02 1395
- Downstream MH
- 02 1394
- Dir. of Survey
- Downstream
- Length Surveyed
- 949 ft.
- Total Length
- 949 ft.
- Structural Index
- 3
- Structural Quick
- 513d
- Structural Rating
- 563
- O&M Index
- 2
- O&M Quick
- 2\00
- O&M Rating
- 292
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 855
Observation photos (4)

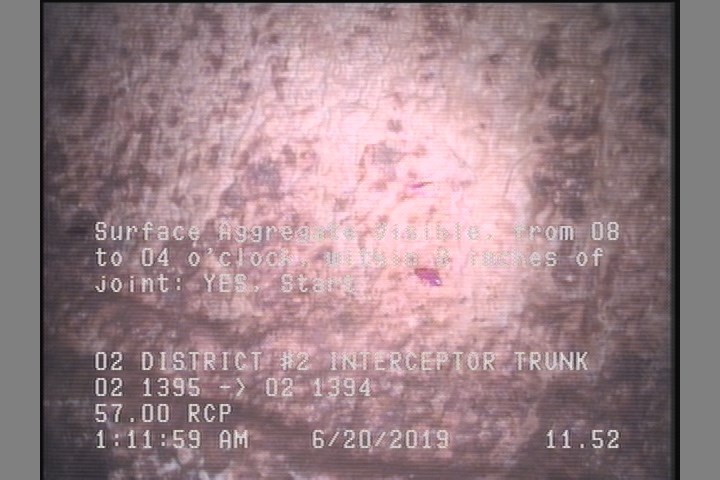

11.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

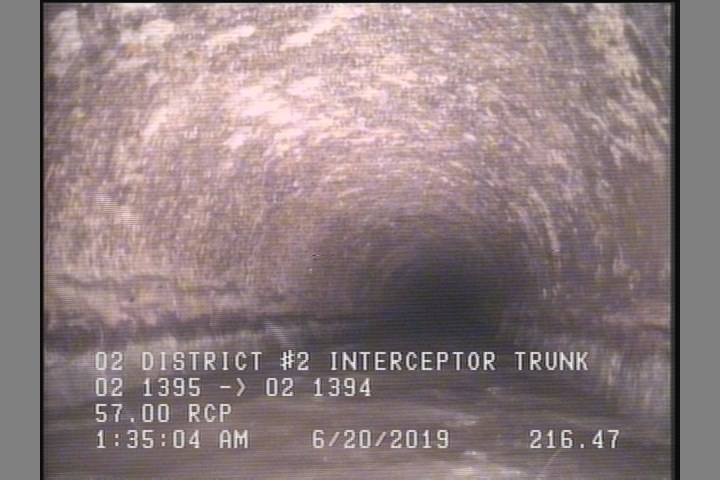

214 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

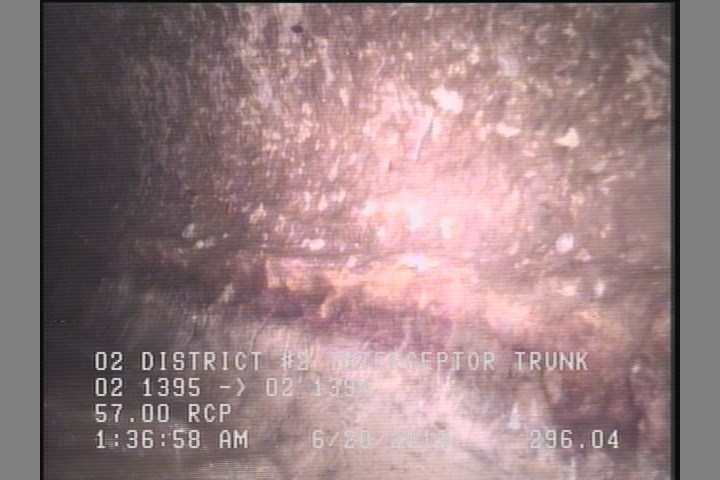

291.6 ft. - Surface Aggregate Projecting, from 03 to 09 o'clock, within 8 inches of joint: YES, Start
742.7 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 291.6 | SAP | — |
| 0 | AMH | 02 1395 |
| 944.7 | SAP | — |
| 286.4 | SAV | — |
| 10.5 | MGO | MAG COAT THROUGHOUT PIPE |
| 0 | MWL | — |
| 944.7 | DAGS | — |
| 11.5 | SAV | — |
| 742.7 | SRV | — |
| 0 | MWM | — |
| 214 | DAGS | — |
| 949 | AMH | 02 1394 |
Properties (6)
- additional_info
- SC377696
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-06-20T00:54:11-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
