Wastewater/Activity/PacpInspection/1.0May 15, 2019, 09:57 AM
11_1_1_15052019_030412.mp4
- Date
- 05/15/2019
- W/O
- 761817
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00577
- PipeID
- P18081
- Time
- 2:57 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6528
- Sewer Name
- 14 TRUNK "A"
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_761817_TV14018_APR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 14 0068A
- Downstream MH
- 14 0068
- Dir. of Survey
- Downstream
- Length Surveyed
- 104.4 ft.
- Total Length
- 104.4 ft.
- Structural Index
- 3
- Structural Quick
- 3C2C
- Structural Rating
- 100
- O&M Index
- 2
- O&M Quick
- 412C
- O&M Rating
- 44
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 144
Observation photos (3)

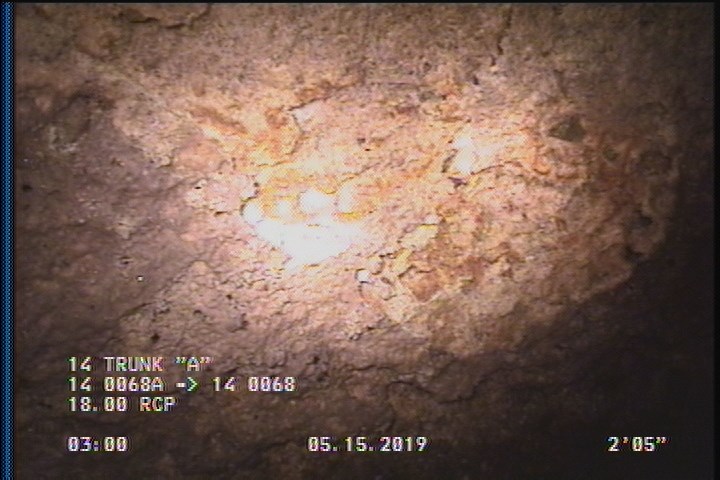

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

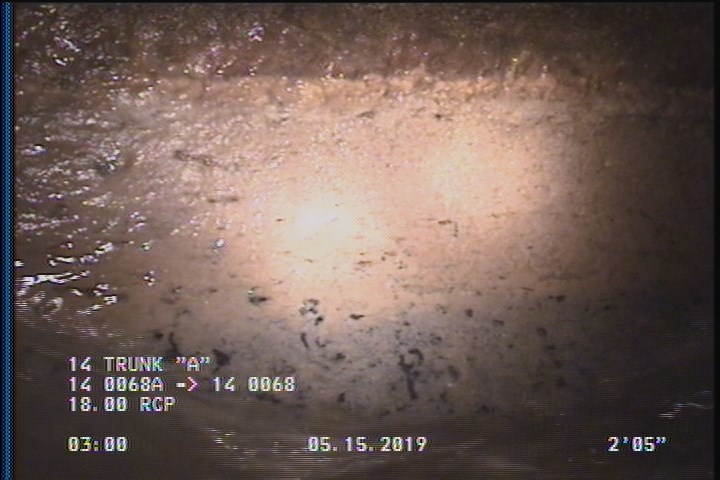

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 0 | MWM | — |
| 15.6 | TBA | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | DAGS | — |
| 104.4 | AMH | 14 0068 |
| 102.4 | SAP | — |
| 102.4 | SSS | — |
| 102.4 | DAGS | — |
| 2 | SAP | — |
| 0 | MWL | — |
| 79.5 | TBA | — |
| 0 | AMH | 14 0068A |
Properties (6)
- additional_info
- SC366248
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-05-15T02:57:01-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
