Date
04/15/2019
W/O
761426
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00141
PipeID
P09837
Time
3:18 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6518
Sewer Name
C JOINT OUTFALL C - UNIT 8C
City
HAWAIIAN GARDENS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
06
Purpose
Routine Assessment
Project
WO_761426_TV19012_APR2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
C 0374
Downstream MH
C 0373
Dir. of Survey
Downstream
Length Surveyed
144.9 ft.
Total Length
144.9 ft.
Structural Index
2
Structural Quick
3D2E
Structural Rating
134
O&M Index
2
O&M Quick
4133
O&M Rating
69
Overall Index
2
Overall Quick
—
Overall Rating
203
Pipe schematic from manhole C 0374 to C 0373
MH: C 0374MH: C 0373downstream0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. IR - Infiltration Runner, at 12 o'clock, within 8 inches of joint: YES0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 03741 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start6.8 ft. MGO - General Observation - MAG COAT THROUGHOUT START13.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start36 ft. ID - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES47.1 ft. IS - Infiltration Stain, from 02 to 04 o'clock, within 8 inches of joint: YES47.3 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - UNKNOWN DEBRIS60.4 ft. IS - Infiltration Stain, at 01 o'clock, within 8 inches of joint: YES78.1 ft. IS - Infiltration Stain, from 09 to 03 o'clock, within 8 inches of joint: YES, Start130.1 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - UNKNOWN DEBRIS142.5 ft. IS - Infiltration Stain, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish142.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish142.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish142.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish144.9 ft. MSA - Survey Abandoned - DUE TO DEBRIS IN LINE

Observation photos (6)

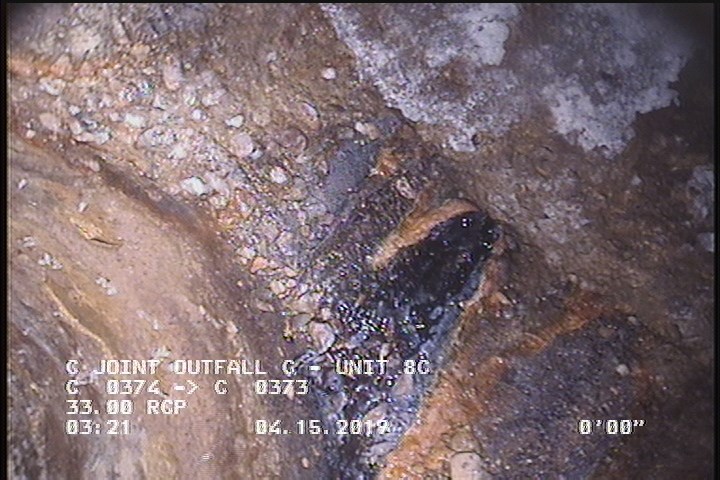

  • Infiltration Runner, at 12 o'clock, within 8 inches of joint: YES

    0 ft. - Infiltration Runner, at 12 o'clock, within 8 inches of joint: YES

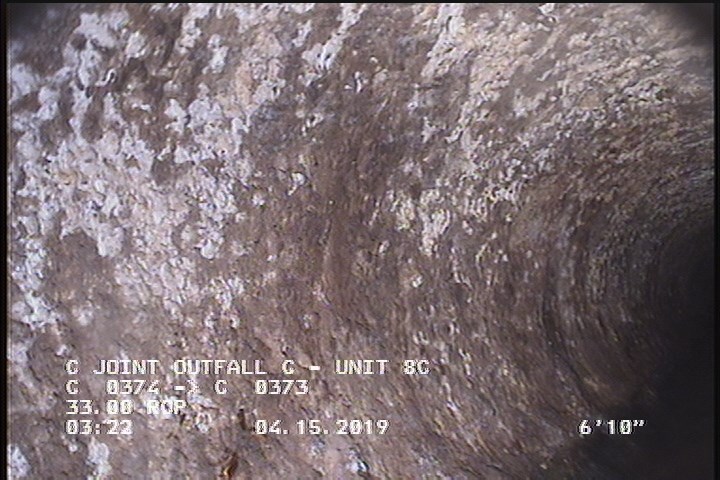

  • General Observation - MAG COAT THROUGHOUT START

    6.8 ft. - General Observation - MAG COAT THROUGHOUT START

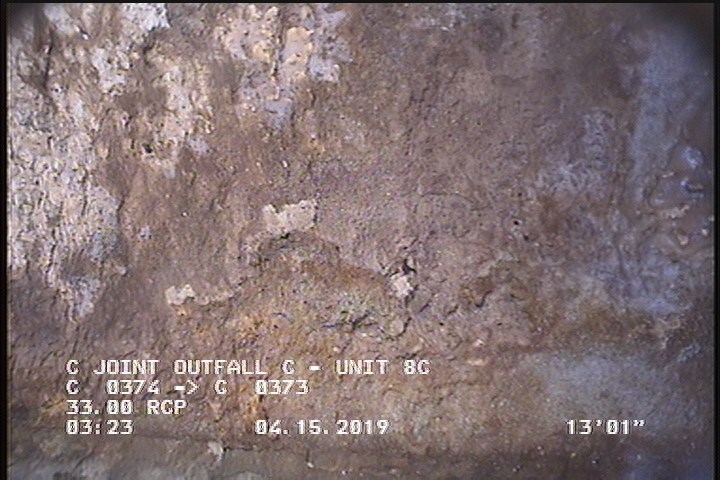

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    13.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

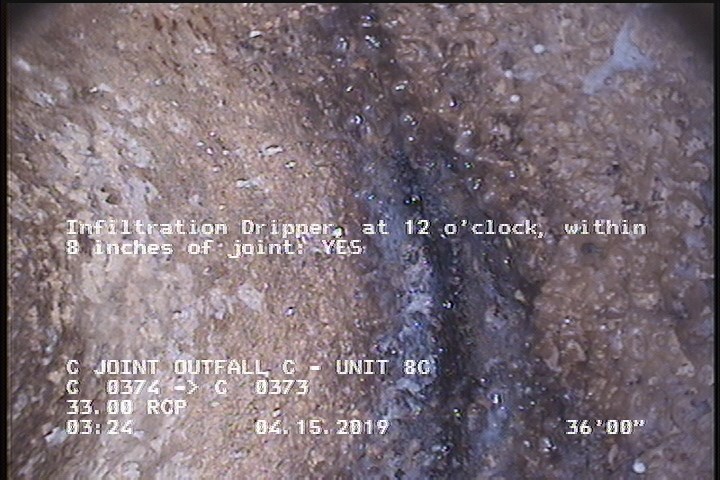

  • Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES

    36 ft. - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES

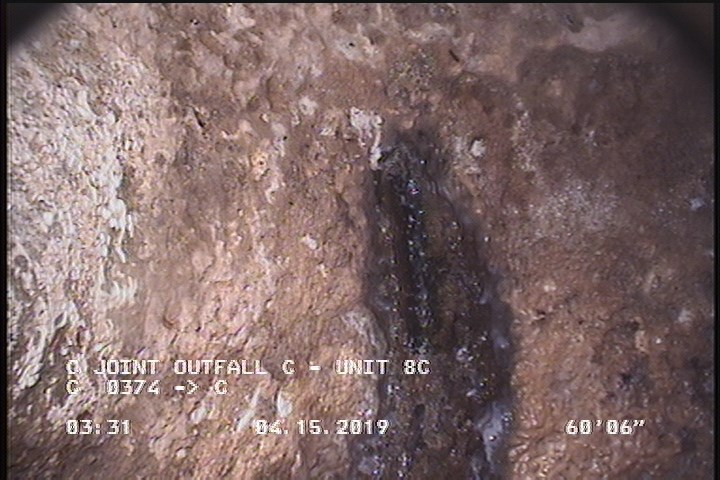

  • Infiltration Stain, at 01 o'clock, within 8 inches of joint: YES

    60.4 ft. - Infiltration Stain, at 01 o'clock, within 8 inches of joint: YES

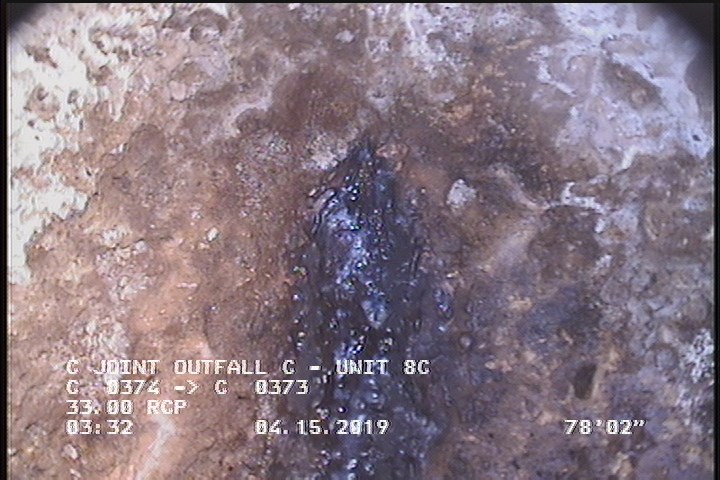

  • Infiltration Stain, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    78.1 ft. - Infiltration Stain, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P09837Work order 761426

Observations (19)

DistanceCodeObservation
142.5IS—
13.1SAP—
0MWL—
1DAGS—
78.1IS—
130.1DSZUNKNOWN DEBRIS
0IR—
0MWM—
1SSS—
47.3DSZUNKNOWN DEBRIS
60.4IS—
36ID—
142.5SSS—
144.9MSADUE TO DEBRIS IN LINE
142.5DAGS—
0AMHC 0374
6.8MGOMAG COAT THROUGHOUT START
142.5SAP—
47.1IS—

Properties (6)

custom_field_two
5
customer
LACSD
datetime
2019-04-15T03:18:51-07:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
26760
