Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 3, 2019, 06:34 AM

  • 1_1_1_02052019_234234.mp4

Date
05/02/2019
W/O
761426
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00141
PipeID
P09832
Time
11:34 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6531
Sewer Name
C JOINT OUTFALL C - UNIT 8C
City
HAWAIIAN GARDENS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
07
Purpose
Routine Assessment
Project
WO_761426_TV19012_APR2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
C 0369
Downstream MH
C 0368
Dir. of Survey
Downstream
Length Surveyed
28.6 ft.
Total Length
28.6 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole C 0369 to C 0368
MH: C 0369MH: C 0368downstream0 ft. AMH - Upstream Manhole, Survey Begins - C 03690 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - CONNECTION IN MH 9 OCLOCK10 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start19 ft. ID - Infiltration Dripper, at 01 o'clock, within 8 inches of joint: YES25.9 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish28.6 ft. AMH - Downstream Manhole, Survey Ends - C 036828.6 ft. MGO - General Observation - CONNECTION IN MH 9 OCLOCK

Observation photos (2)

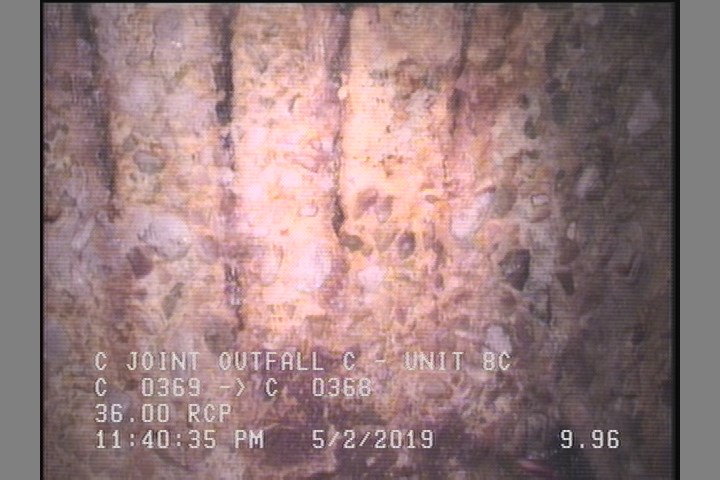

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    10 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

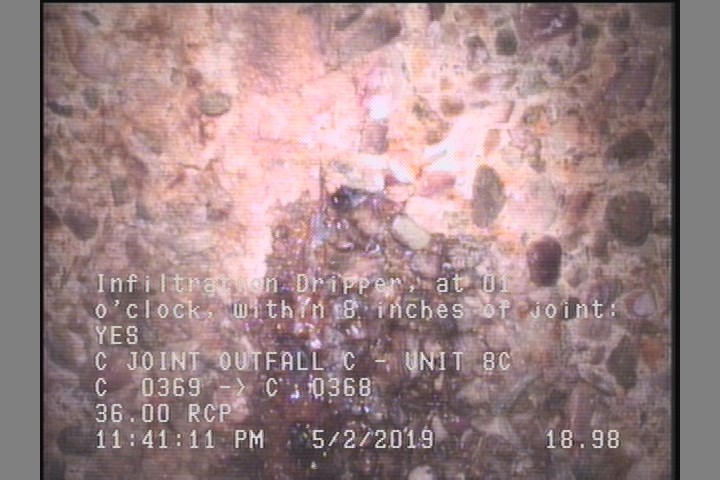

  • Infiltration Dripper, at 01 o'clock, within 8 inches of joint: YES

    19 ft. - Infiltration Dripper, at 01 o'clock, within 8 inches of joint: YES

All inspections of P09832Work order 761426

Observations (9)

DistanceCodeObservation
0AMHC 0369
19ID—
0MWL—
0MWM—
0MGOCONNECTION IN MH 9 OCLOCK
25.9SRV—
28.6AMHC 0368
28.6MGOCONNECTION IN MH 9 OCLOCK
10SRV—

Properties (6)

custom_field_two
2
customer
LACSD
datetime
2019-05-02T23:34:14-07:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
26760
