Wastewater/Activity/PacpInspection/1.0Mar 29, 2019, 05:04 AM
21 0331_A 0716_03282019_221743.mp4
- Date
- 03/28/2019
- W/O
- 755953
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00314
- PipeID
- P20054
- Time
- 10:04 PM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6505
- Sewer Name
- A JOA-1A CHINO BASIN WASTEWATER LINE
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_755953_TV21093_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 21 0331
- Downstream MH
- A 0716
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

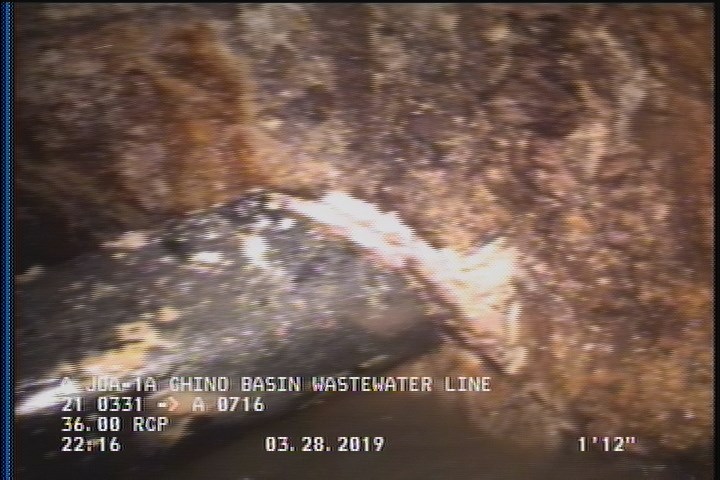

0 ft. - Water Level, 70 %of cross sectional area

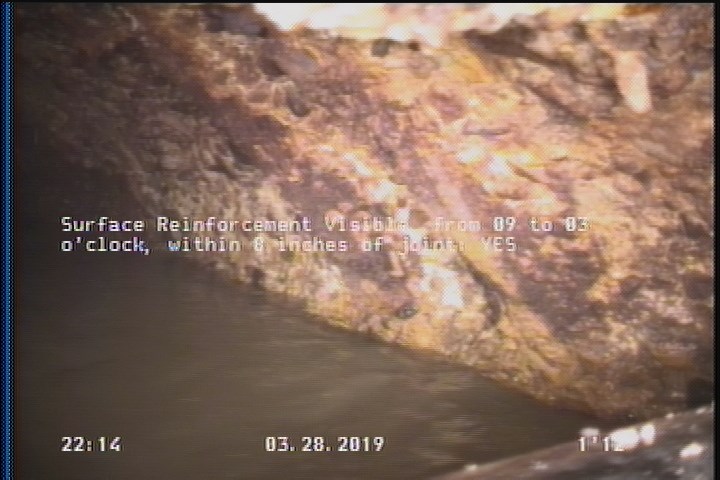

2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

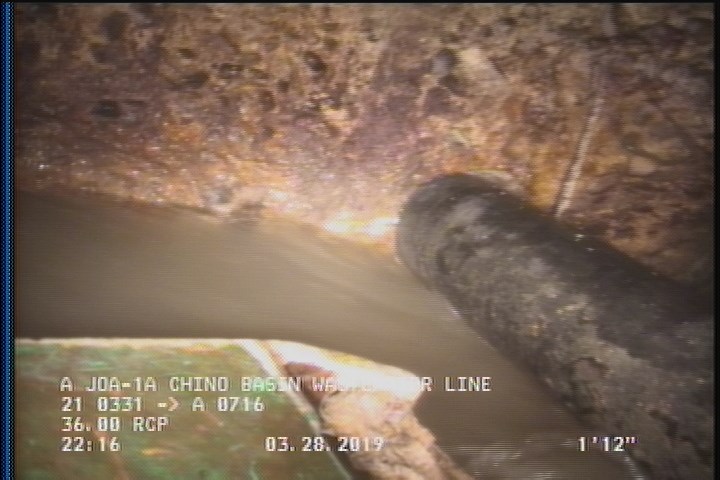

2 ft. - Obstacles Other, 5 %of cross sectional area, from 10 to 02 o'clock - PIECE OF PIPE IN LINE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SRV | — |
| 2 | MSA | DUE TO OBSTRUCTION/OBSTRUCTION REMOVE BY DISTRICTS |
| 2 | OBZ | PIECE OF PIPE IN LINE |
| 0 | MGO | CONNECTION AT 12'0 IN MH |
| 0 | AMH | 21 0331 |
Properties (5)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-03-28T22:04:13-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
