Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 25, 2019, 04:30 PM

  • 05 0460_05 0459_7252019_094717.mp4

Date
07/25/2019
W/O
0782137
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00526
PipeID
P05674
Time
9:30 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8037
Sewer Name
05 STRAWBERRY AVENUE TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Capital Improvement Program Assesment
Project
20190725MI_STRAWBERRY_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 0460
Downstream MH
05 0459
Dir. of Survey
Downstream
Length Surveyed
324.4 ft.
Total Length
324.4 ft.
Structural Index
2
Structural Quick
3223
Structural Rating
12
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 05 0460 to 05 0459
MH: 05 0460MH: 05 0459downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:00 AM0 ft. MGO - General Observation - CONNECTION AT MH, 9 OCLOCK, ACTIVE0 ft. MWL - Water Level, 15 %of cross sectional area8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start9.2 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start47.3 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 4" - Open49.8 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 4"97 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 4" - Open99.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - Open115.1 ft. DAR - Deposits Attached Ragging, 5 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES147.3 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 4" - Open149.4 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 4" - Open199.2 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 4" - Open201.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 4" - Open249.2 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 4" - Open251.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 4" - Open295.2 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES299 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 4" - Open301.2 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 4" - Open315.1 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES317.2 ft. CS - Crack Spiral, from 03 to 06 o'clock, within 8 inches of joint: YES319.9 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES322 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish322 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish324.4 ft. MGO - General Observation - CONNECTION AT MH, 3 OCLOCK, ACTIVE324.4 ft. AMH - Downstream Manhole, Survey Ends - 10:42 AM324.4 ft. MGO - General Observation - CONNECTION AT MH, 9 OCLOCK, ACTIVE324.4 ft. MGO - General Observation - ROACHES AT MH, > 50

Observation photos (5)

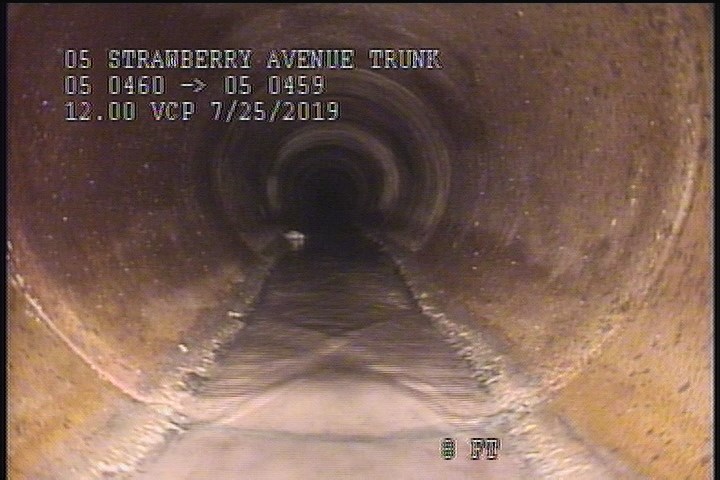

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

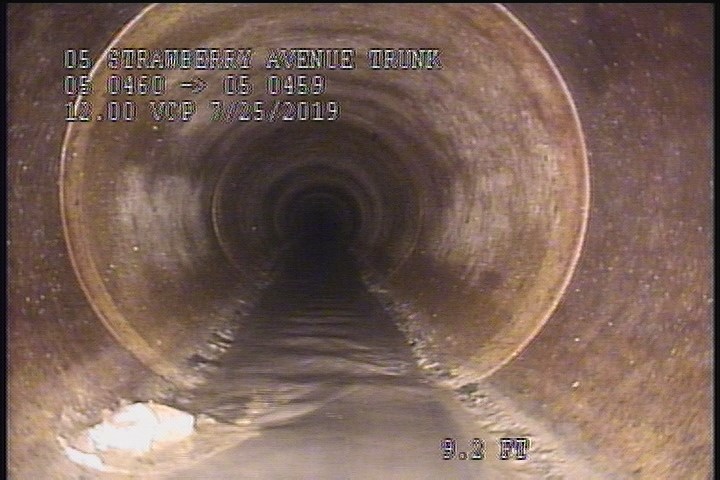

  • Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    9.2 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

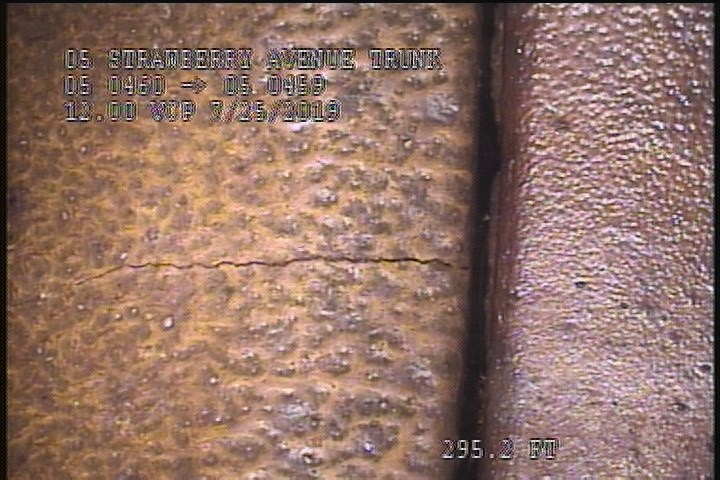

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    295.2 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

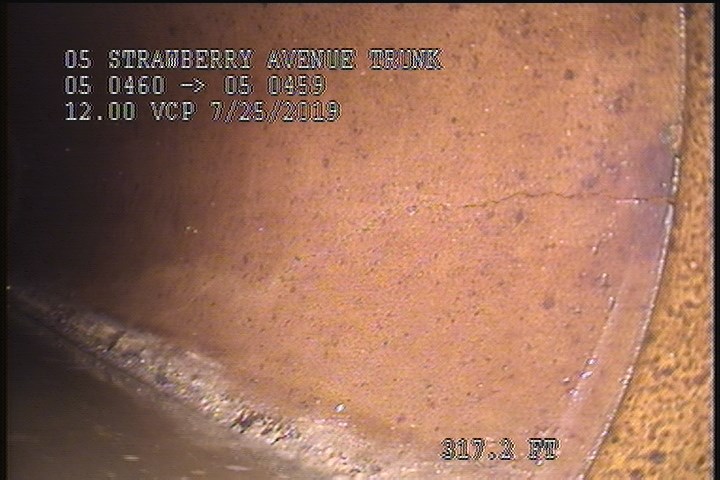

  • Crack Spiral, from 03 to 06 o'clock, within 8 inches of joint: YES

    317.2 ft. - Crack Spiral, from 03 to 06 o'clock, within 8 inches of joint: YES

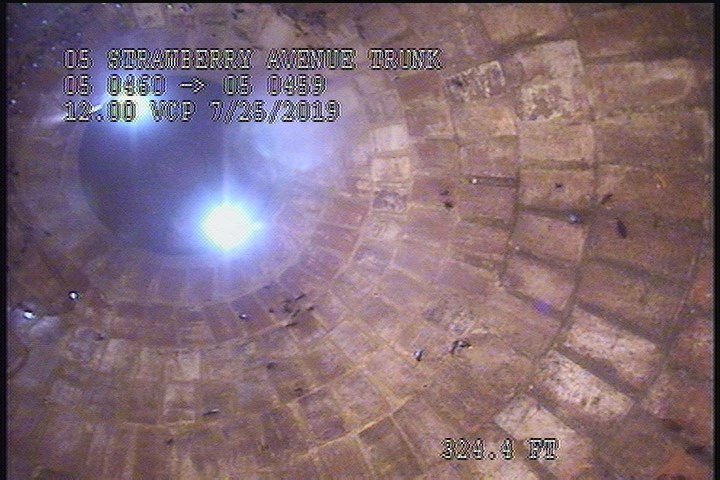

  • Downstream Manhole, Survey Ends - 10:42 AM

    324.4 ft. - Downstream Manhole, Survey Ends - 10:42 AM

All inspections of P05674Work order 0782137

Observations (29)

DistanceCodeObservation
0MWM—
8DAGS—
324.4MGOCONNECTION AT MH, 3 OCLOCK, ACTIVE
199.2TFOpen
115.1DAR—
49.8TFA—
324.4AMH10:42 AM
249.2TFOpen
99.6TFOpen
251.5TFOpen
324.4MGOCONNECTION AT MH, 9 OCLOCK, ACTIVE
322DAGS—
97TFOpen
319.9CM—
149.4TFOpen
317.2CS—
315.1CM—
0AMH10:00 AM
322SSS—
201.5TFOpen
295.2CL—
0MGOCONNECTION AT MH, 9 OCLOCK, ACTIVE
47.3TFOpen
0MWL—
324.4MGOROACHES AT MH, > 50
147.3TFOpen
301.2TFOpen
299TFOpen
9.2SSS—

Properties (6)

additional_info
RFIR INSEPCTION ONLY
custom_field_two
3
customer
LACSD
datetime
2019-07-25T09:30:31-07:00
documentation
IGNACIO, FRANKLIN, CASTILLO
is_lateral_inspection
false
