Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 26, 2019, 07:23 AM

  • Section#11_18 0971A_18 0986__7262019__I0191R.mp4

Date
07/26/2019
W/O
0777340
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00716
PipeID
P14823
Time
12:23 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0191R
Sewer Name
18 WORSHAM CREEK TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
11
Purpose
Maintenance Related
Project
20190723MDM_WORSHAM_CREEK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
7.5 in.
Upstream MH
18 0971A
Downstream MH
18 0986
Dir. of Survey
Downstream
Length Surveyed
386.5 ft.
Total Length
386.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3A00
O&M Rating
30
Overall Index
3
Overall Quick
—
Overall Rating
30
Pipe schematic from manhole 18 0971A to 18 0986
MH: 18 0971AMH: 18 0986downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE91.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN139.9 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN-40% ROOTS142.6 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN-100% ROOTS142.6 ft. RML - Roots Medium Lateral, from 10 to 11 o'clock, 10 %, within 8 inches of joint: NO193.3 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN-100% ROOTS193.3 ft. RML - Roots Medium Lateral, at 10 o'clock, 5 %, within 8 inches of joint: NO245.2 ft. RML - Roots Medium Lateral, from 10 to 12 o'clock, 15 %, within 8 inches of joint: NO245.2 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN-100% ROOTS290.9 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN -100% ROOTS290.9 ft. RML - Roots Medium Lateral, from 09 to 11 o'clock, 15 %, within 8 inches of joint: NO340.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - ACTIVE342.1 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN-90% ROOTS386.5 ft. AMH - Downstream Manhole, Survey Ends - 1:05AM

Observation photos (4)

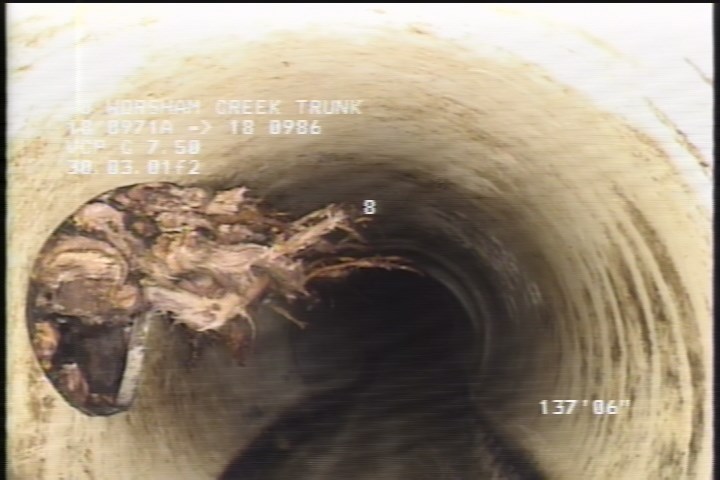

  • Roots Medium Lateral, from 10 to 11 o'clock, 10 %, within 8 inches of joint: NO

    142.6 ft. - Roots Medium Lateral, from 10 to 11 o'clock, 10 %, within 8 inches of joint: NO

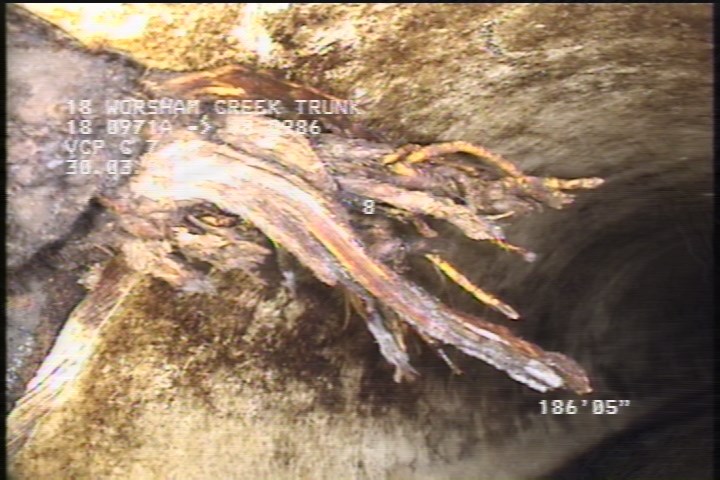

  • Roots Medium Lateral, at 10 o'clock, 5 %, within 8 inches of joint: NO

    193.3 ft. - Roots Medium Lateral, at 10 o'clock, 5 %, within 8 inches of joint: NO

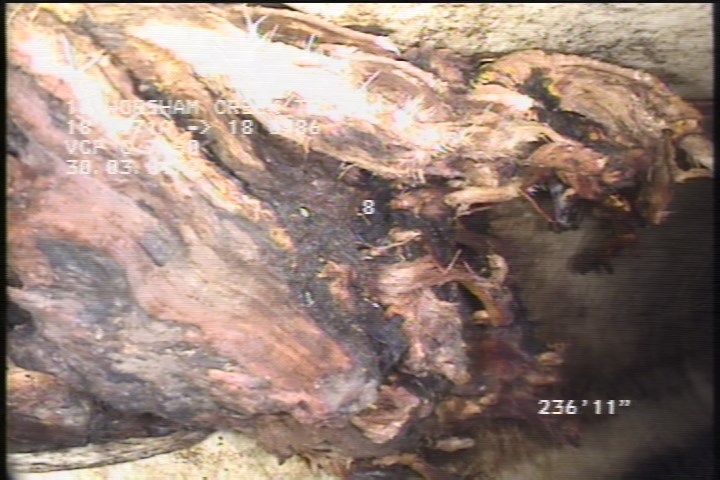

  • Roots Medium Lateral, from 10 to 12 o'clock, 15 %, within 8 inches of joint: NO

    245.2 ft. - Roots Medium Lateral, from 10 to 12 o'clock, 15 %, within 8 inches of joint: NO

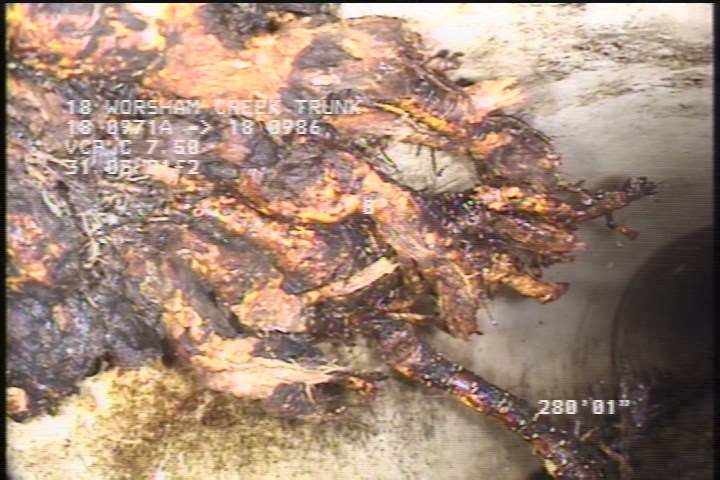

  • Roots Medium Lateral, from 09 to 11 o'clock, 15 %, within 8 inches of joint: NO

    290.9 ft. - Roots Medium Lateral, from 09 to 11 o'clock, 15 %, within 8 inches of joint: NO

All inspections of P14823Work order 0777340

Observations (17)

DistanceCodeObservation
386.5AMH1:05AM
139.9TBDOPEN-40% ROOTS
142.6TBDOPEN-100% ROOTS
342.1TBDOPEN-90% ROOTS
290.9TBDOPEN -100% ROOTS
193.3TBDOPEN-100% ROOTS
0MWM—
245.2RML—
340.6TBACTIVE
0AMH12:35AM
0MWL—
290.9RML—
91.2TBOPEN
193.3RML—
0MGOMH CONN 9:00 ACTIVE
245.2TBDOPEN-100% ROOTS
142.6RML—

Properties (5)

additional_info
POST ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-07-26T00:23:20-07:00
documentation
MARTIN,REVELES,OLIVER 111,SHADLER
is_lateral_inspection
false
